Introduction

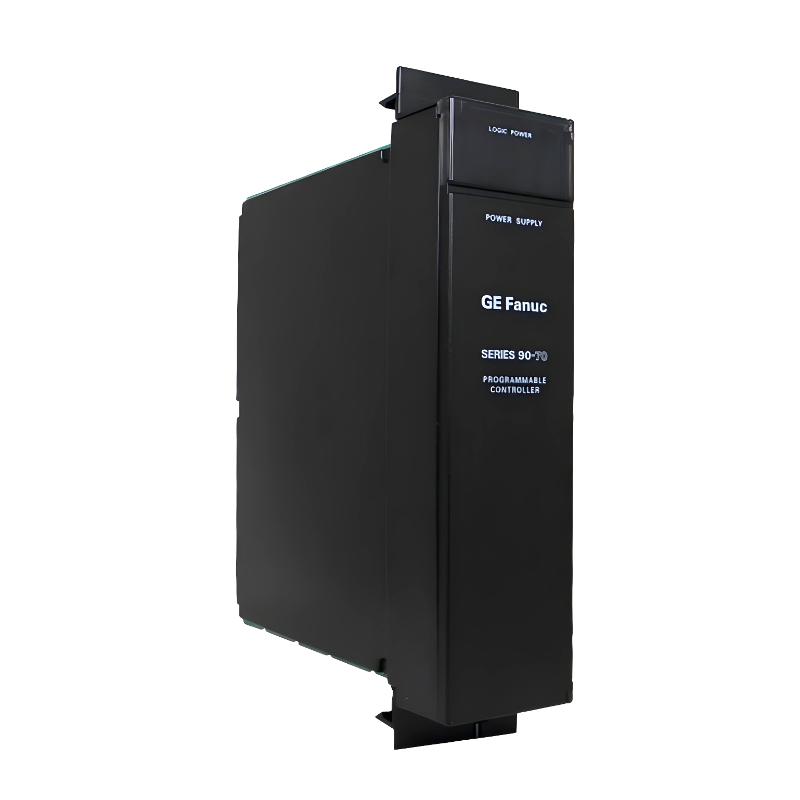

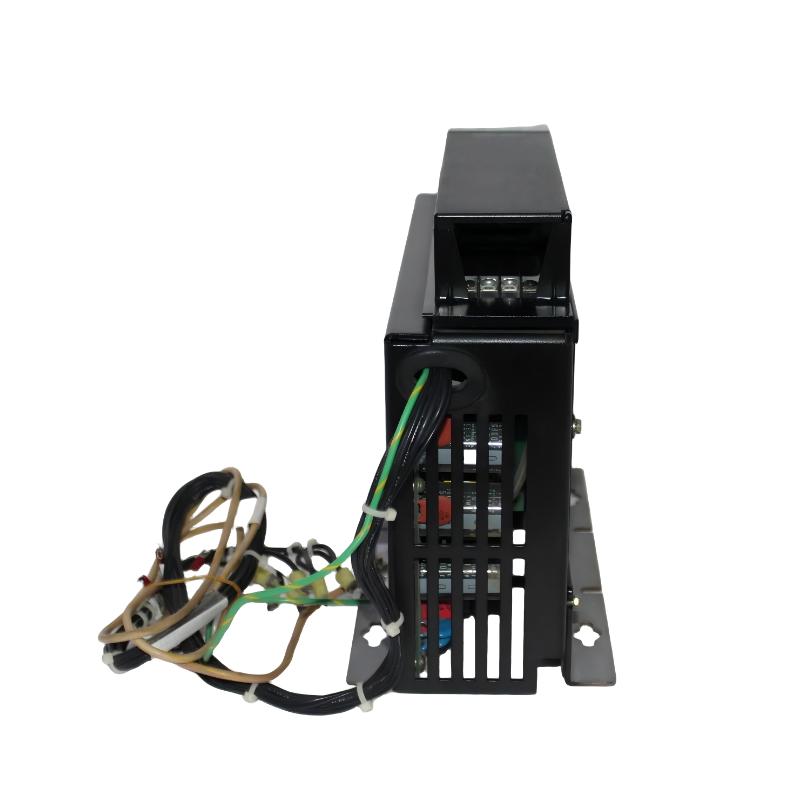

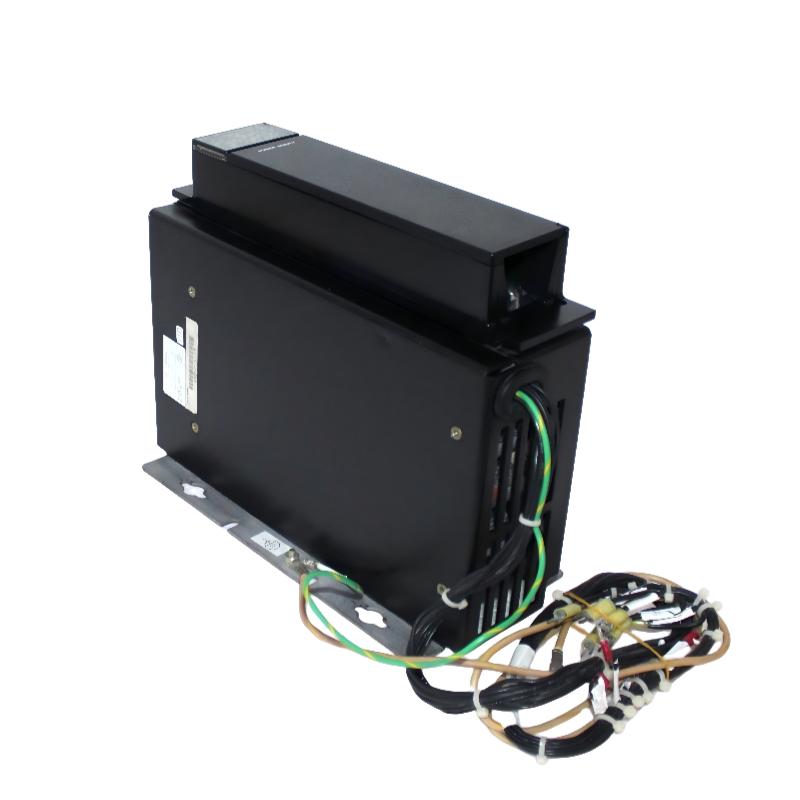

The GE IC697PWR722 Power Supply Module is a high-capacity, ruggedized power solution designed for large GE Series 90-70 PLC systems. Known for its exceptional stability and long-term reliability, this module delivers regulated DC power to the CPU, I/O racks, and communication modules within the system. Its fault-resilient architecture, combined with advanced protection circuitry, ensures uninterrupted operation even in demanding industrial environments. For users running mission-critical automation processes, the IC697PWR722 stands out as a dependable backbone for system power management.

Technical Specifications

Parameter	Specification
Module Type	Power Supply Module
Input Voltage	120/240 VAC (auto-sensing)
Input Frequency	47–63 Hz
Output Power	100 W
Output Voltages	+5 VDC @ 20 A, +12 VDC @ 3.5 A, –12 VDC @ 1 A
Protection	Over-current, over-voltage, thermal shutdown
Status Indicators	Power OK, Fault, DC output LEDs
Cooling	Passive convection cooling
Mounting	Direct mount to Series 90-70 rack
Operating Temperature	0 °C to +60 °C
Storage Temperature	–40 °C to +85 °C
Humidity	5–95% non-condensing
Dimensions (H × W × D)	292 × 130 × 232 mm
Weight	1.36 kg

Recommended Related Models

Model	Description
IC697CPU781	High-performance CPU for Series 90-70
IC697CHS750	Standard 7-slot rack
IC697MDL653	24 VDC input module
IC697PCM711	Programmable coprocessor module
IC697BEM731	Genius Bus controller module

Popular GE Automation Models

Model	Use-Case
IC693CPU374	Advanced PLC CPU for Series 90-30
IC200PWR102	VersaMax power supply
IC695PMM001	PACSystems programmable module
IC660BBD110	Genius block I/O module
IC695ETM001	Ethernet communication module

Applications

Advantages

Technical FAQs

What is the maximum total wattage output of the IC697PWR722?
It delivers up to 100 W of regulated DC power.

Does the module support redundant power supply configurations?
Yes, redundant configurations can be implemented using multiple racks and supply modules.

What input voltage does the module accept?
It supports 120/240 VAC with automatic sensing.

Is the unit hot-swappable?
No, the power supply must be removed only after shutting down the rack.

Which racks are compatible with the IC697PWR722?
It mounts directly to Series 90-70 racks, such as IC697CHS750.

Does it include overload protection?
Yes, the module integrates over-current, over-voltage, and thermal protection.

What are the available DC outputs?
+5 VDC, +12 VDC, and –12 VDC with respective current limits.

Can the power supply operate in high-temperature areas?
It supports up to +60 °C ambient temperature.

Does the module have LED indicators?
Yes, LEDs provide Power OK, Fault, and Output Status.

Is external cooling required?
No, it uses passive convection and does not require fans.
