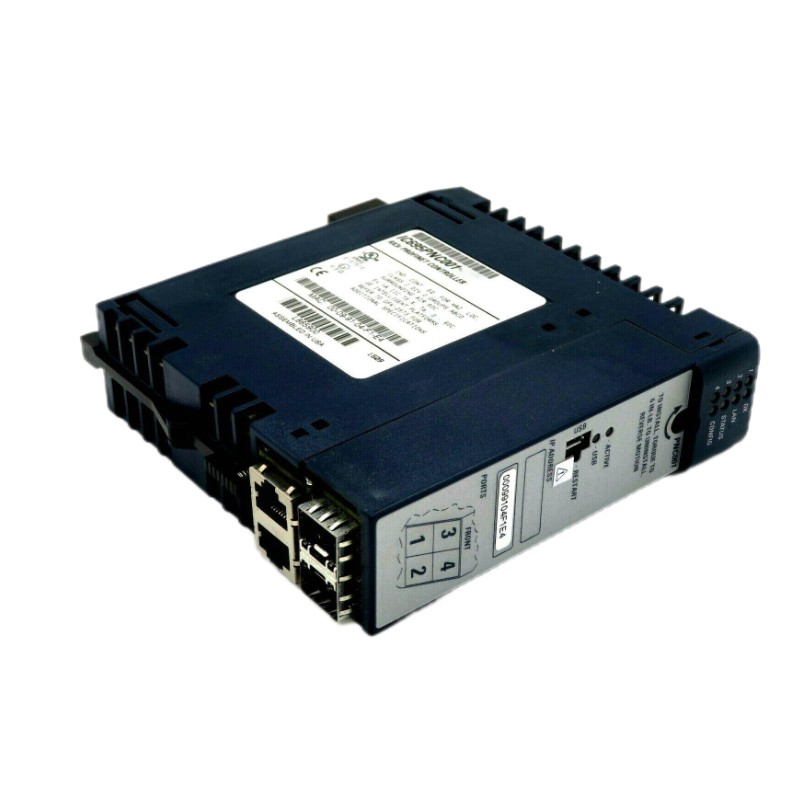

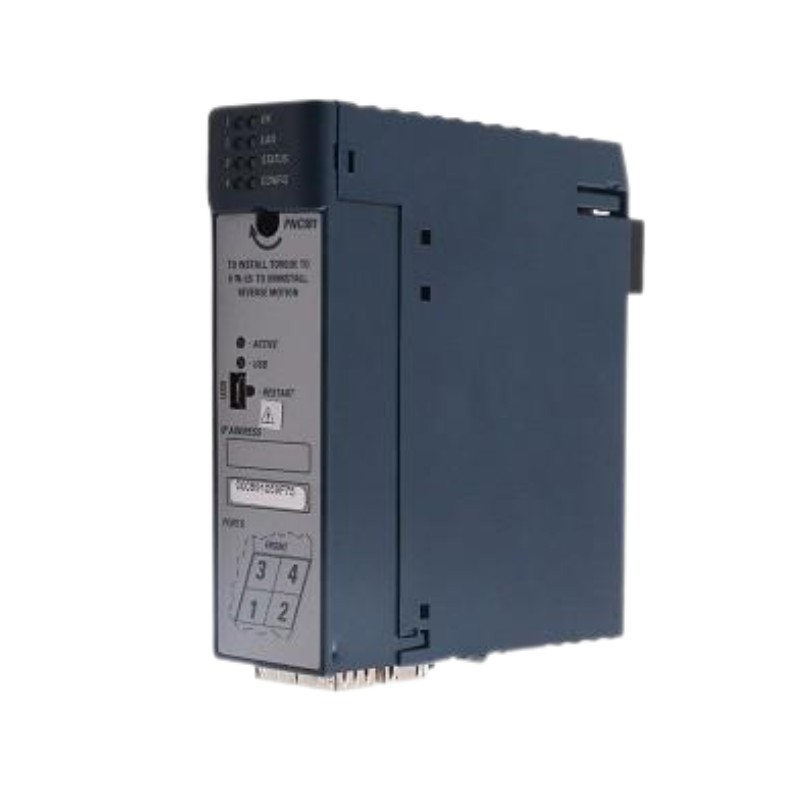

GE IC695PNC001 PACSystems RX3i Profibus DP Communication Interface Module for Industrial Network Integration

Applications

The IC695PNC001 Profibus DP communication module is widely used in industrial automation systems where fieldbus integration is essential:

• Factory automation and line control systems

• Process plant instrumentation networks

• Distributed control systems with mixed PLC nodes

• Integration of Profibus DP sensors, drives, and actuators

• Remote I/O structures requiring high-speed deterministic communication

It provides a flexible and reliable interface for extending PACSystems RX3i automation into fieldbus environments, enabling unified control and real-time responsiveness.

Advantages

• Industry-standard Profibus DP support — interoperable with a wide range of field devices.

• High transmission speeds — supports up to 12 Mbps for rapid data exchange.

• Flexible role configuration — can operate as master or slave depending on system design.

• Robust diagnostics — Link, activity, and error status monitoring simplify maintenance.

• Strong isolation — optical isolation enhances noise immunity and reliability.

• Seamless integration — designed to work within PACSystems RX3i distributed architectures.

The IC695PNC001 enhances automation networks by enabling seamless communication with Profibus ecosystems while maintaining high performance and reliability.

Technical FAQs

1. What fieldbus standard does IC695PNC001 support?
   It supports Profibus DP communication up to 12 Mbps.

2. Can this module function as both master and slave?
   Yes — it can be configured for master or slave roles depending on network needs.

3. What physical interface is used?
   A 9-pin D-sub Profibus port with optical isolation.

4. How is network configuration performed?
   Network parameters are configured via the PLC programming environment.

5. Does it provide diagnostics?
   Yes — link status, activity, error flags, and bus health monitoring are included.

6. What is the operating temperature range?
   Rated for 0°C to +60°C operation.

7. Is it compatible with high-speed Profibus networks?
   Yes — supports transmission rates up to 12 Mbps.

8. Can it integrate remote I/O devices?
   Yes — it enables connection to Profibus-compatible remote I/O and devices.

9. Is isolation provided between the module and backplane?
   Yes — optical isolation improves performance in electrically noisy environments.

10. Where is this module typically used?
    In factory automation, process control, and distributed systems requiring Profibus integration.
