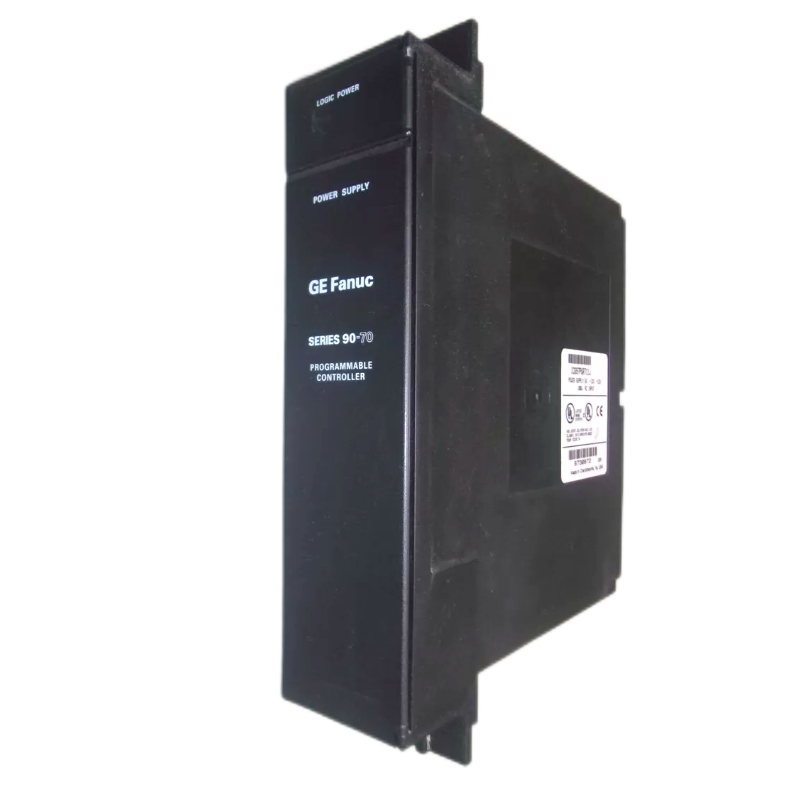

The GE IC697PWR711J Power Supply Module is a robust and reliable power source designed for Series 90-70 programmable logic controller racks. Delivering a regulated 24 V DC output at up to 11 A, this module provides stable power to CPU, I/O, communication, and auxiliary modules in mid-to-large control configurations. Engineered for industrial environments, the IC697PWR711J combines efficient power delivery with built-in protections and a convection-cooled design to support continuous operation with minimal maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | Power Supply Module |
| Compatible Platform | GE Series 90-70 PLC |
| Input Voltage Range | 100–240 VAC (auto-select) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 V DC regulated |
| Maximum Output Current | 11 A |
| Maximum Output Power | ≈264 W |
| Protection Features | Overload, short circuit, overvoltage protection |
| Cooling Method | Natural convection (no fan) |
| Mounting Position | Series 90-70 rack power supply slot |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Isolation | Input/output isolation compliant with industrial standards |
| Certifications | UL, CE, industrial safety approvals |
| Dimensions (H×W×D) | 178 mm × 36 mm × 195 mm |
| Weight | Approx. 1.15 kg |
The module’s design ensures dependable power distribution with minimal footprint in the PLC rack, and its passive cooling strategy enhances long-term reliability in demanding environments.
