Reliable Industrial Motion Control Introduction

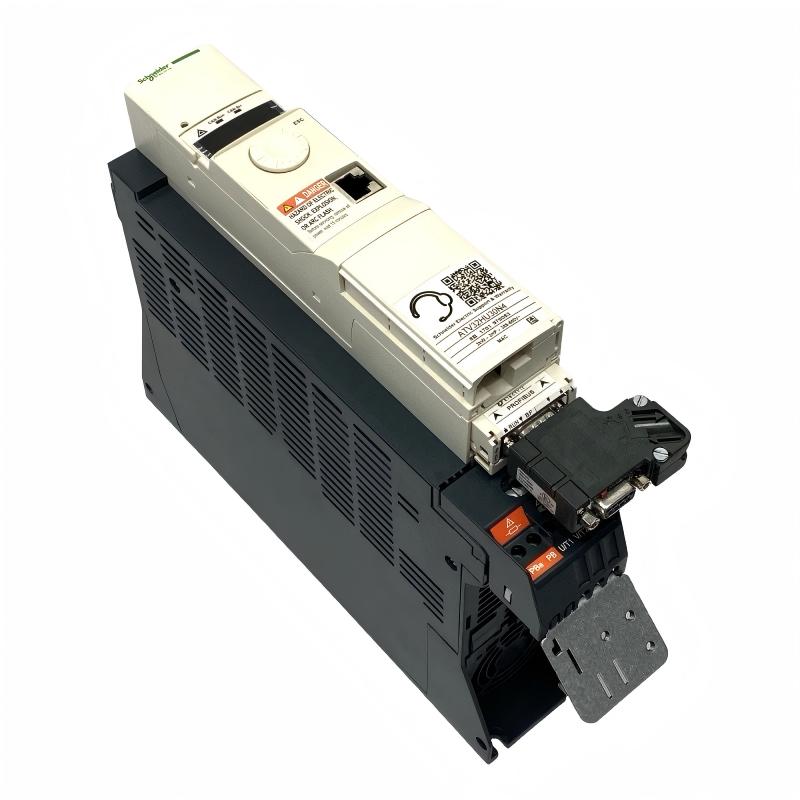

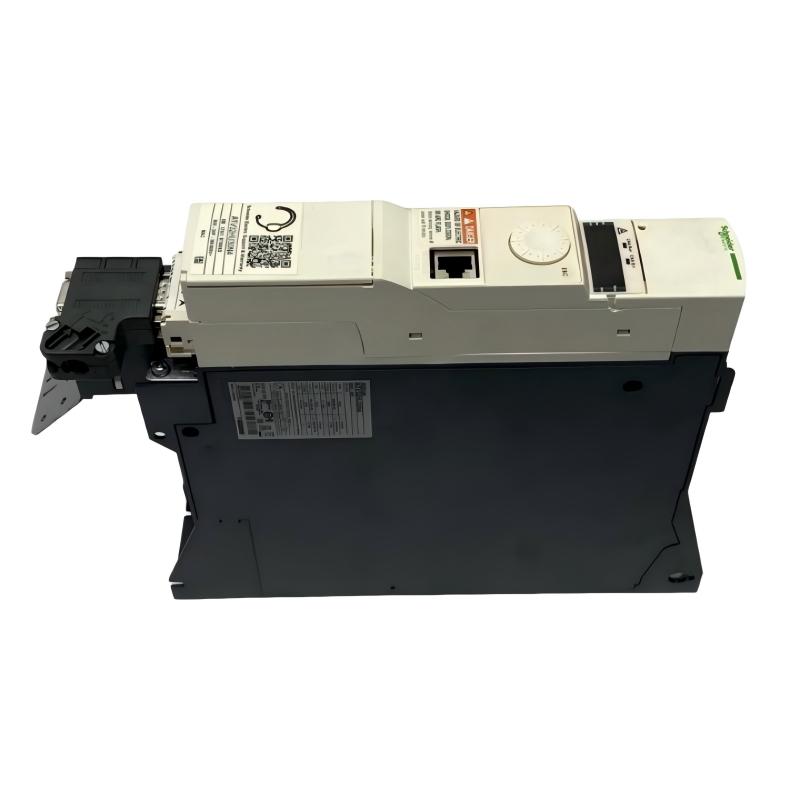

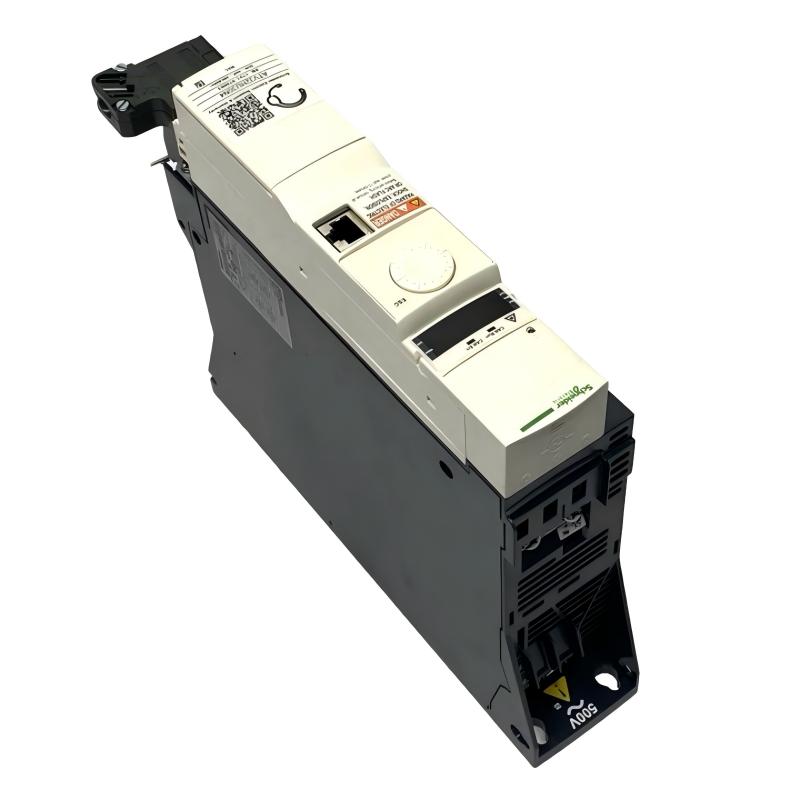

The Schneider ATV32HU30N4 Variable Speed Drive is a high-quality AC drive solution designed to provide efficient and precise motor control for industrial automation systems. With a 3 kW power rating and compact mechanical design, it delivers reliable performance for applications requiring accurate speed management and consistent operation.

Developed for modern machine control environments, the ATV32HU30N4 combines flexible configuration, intelligent motor regulation, and dependable protection features. Its compact structure helps optimize electrical cabinet space while maintaining excellent control performance.

This drive provides an effective solution for improving machine efficiency, reducing operational costs, and supporting reliable industrial production processes.

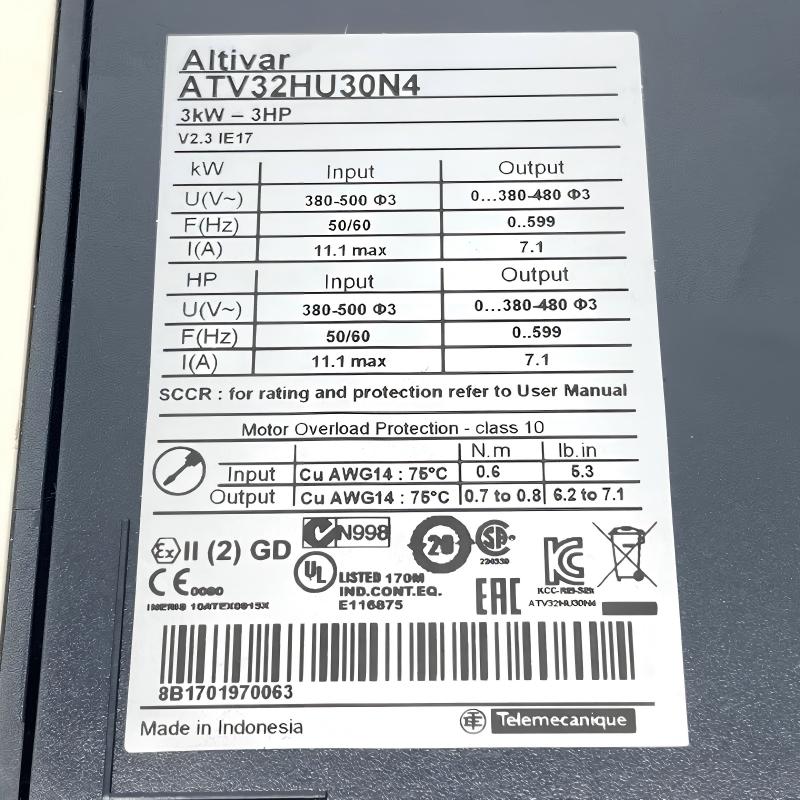

Technical Specifications

Specification	Details
Product Type	Variable Speed Drive
Manufacturer	Schneider Electric
Model	ATV32HU30N4
Product Series	Altivar 32
Rated Power	3 kW
Motor Power Capacity	4 HP
Input Voltage	380–500 V AC
Input Phase	Three-phase
Rated Output Current	7.1 A
Control Method	Sensorless Vector Control
Motor Compatibility	Asynchronous Motors and Synchronous Motors
Communication Interface	Modbus, CANopen
Mounting Type	Wall-mounted
Protection Class	IP20
Cooling Method	Heat Sink Cooling
Dimensions (H × W × D)	60 × 325 × 245 mm
Weight	3.00 kg (6.61 lb)

Recommended Related Models

Model	Product Type	Description
Schneider ATV32HU22N4	Variable Speed Drive	Compact motor control solution for lower-power industrial applications.
Schneider ATV32HU40N4	Variable Speed Drive	Designed for applications requiring higher motor capacity.
Schneider ATV320U30N4B	Variable Speed Drive	Advanced Altivar series drive for modern automation systems.
Schneider ATV32HU55N4	Variable Speed Drive	Suitable for larger industrial machine control applications.

Popular Related Models

Model	Product Type	Application Focus
Schneider ATV32HU30N4	Variable Speed Drive	Industrial machine automation
Schneider ATV320U30N4B	Variable Speed Drive	Modern motor control systems
Schneider ATV32HU22N4	Variable Speed Drive	Compact automation equipment
Schneider ATV630U30N4	Variable Speed Drive	Industrial process and motor applications

Industrial Application Areas

The Schneider ATV32HU30N4 Variable Speed Drive is a compact and reliable motor control solution designed for industrial automation systems that require accurate speed adjustment, efficient operation, and stable performance. As part of the Altivar 32 series, this drive provides advanced motor management functions for machine builders and industrial users seeking flexible and dependable control solutions.

With its space-saving design and powerful control capability, the ATV32HU30N4 supports smooth motor operation, improved energy efficiency, and enhanced productivity across various industrial applications.

Application Area	Description
Machine Automation	Provides precise motor control for automated production equipment and industrial machinery.
Conveyor Systems	Enables smooth acceleration, deceleration, and speed regulation for material handling systems.
Packaging Equipment	Supports stable motor operation for packaging and assembly applications.
Pump and Fan Systems	Improves system efficiency through optimized variable-speed control.
Manufacturing Equipment	Delivers reliable performance for machines requiring flexible motor management.

Enhanced Drive Performance Advantages

The Schneider ATV32HU30N4 combines advanced motor control technology with a compact structure to deliver efficient and dependable operation. Its intelligent design helps simplify installation, improve machine performance, and provide long-term reliability in industrial environments.

Advantage	Description
Accurate Motor Control	Provides precise speed and torque regulation for improved equipment operation.
Space-Saving Design	Compact dimensions allow efficient installation in control cabinets.
Energy Efficiency	Helps reduce unnecessary energy consumption through optimized motor speed control.
Flexible Integration	Supports communication functions for connection with industrial automation systems.
Reliable Protection	Includes monitoring and protection features to improve system stability.

Technical FAQs

1. What is the main function of the Schneider ATV32HU30N4?
The ATV32HU30N4 is a variable speed drive designed to control motor speed, torque, and operating performance in industrial applications.

2. What motor power rating does this drive support?
This model supports motor applications with a rated power of 3 kW.

3. What types of motors are compatible with the ATV32HU30N4?
The drive supports asynchronous motors and synchronous motors for different industrial control requirements.

4. Is the ATV32HU30N4 suitable for automated machinery?
Yes. It is designed for machine automation applications requiring precise and stable motor control.

5. Does this drive support advanced motor control functions?
Yes. It provides advanced control capabilities for improved motor response and operating efficiency.

6. Can the ATV32HU30N4 be integrated into industrial control systems?
Yes. It supports communication functions for integration with automation networks and control platforms.

7. Does this model include motor protection functions?
Yes. The drive provides protection features to help maintain safe and reliable operation.

8. What applications commonly use the ATV32HU30N4?
It is commonly used in conveyors, packaging machines, pumps, fans, and industrial processing equipment.

9. Can users configure parameters for different motor applications?
Yes. Operating parameters can be adjusted according to motor characteristics and application requirements.

10. What should be considered before replacing an existing drive?
Motor specifications, voltage requirements, control configuration, and application conditions should be confirmed before replacement.
