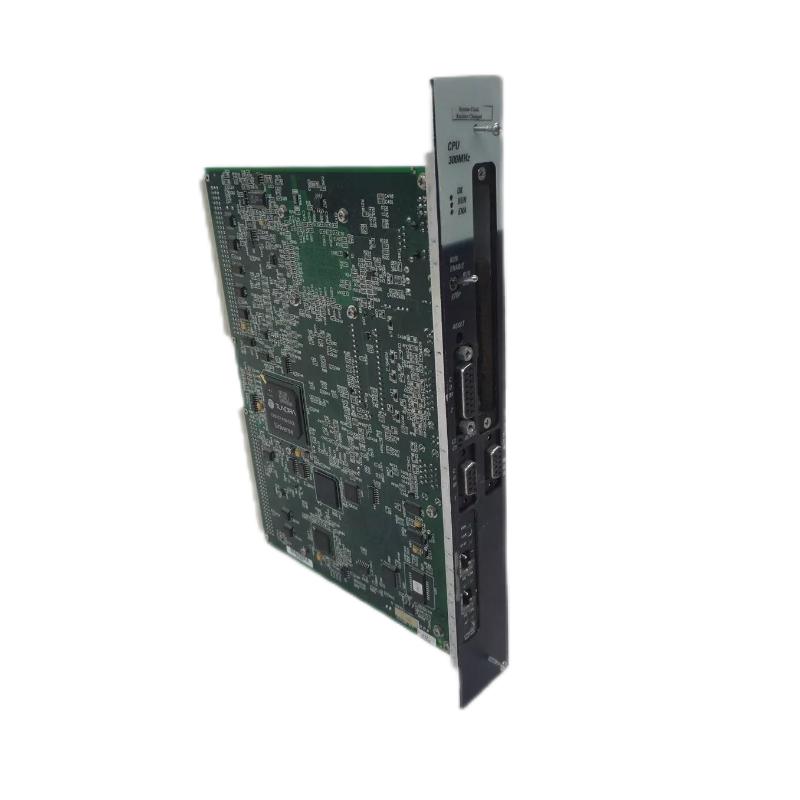

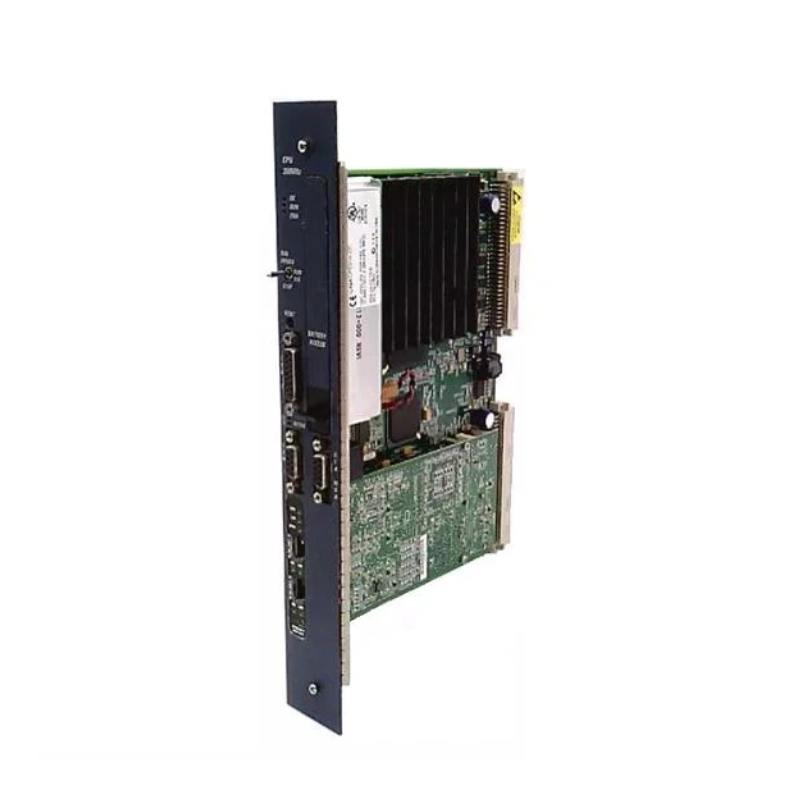

The GE IC698CPE010 is a rack-mounted CPU Module designed for the PACSystems RX7i platform, delivering dependable control performance for mid-to-large-scale industrial automation systems. With integrated dual Ethernet ports and multiple serial interfaces, this processor combines logic execution, communication, and data management within a single robust module.

Engineered for continuous-duty industrial environments, the IC698CPE010 supports complex control strategies, distributed I/O architectures, and real-time data exchange. Its modular rack-based installation allows seamless integration into existing RX7i chassis systems, providing engineers with a stable and expandable control foundation.

Technical Specifications

Parameter	Specification
Model	IC698CPE010
Platform	PACSystems RX7i
Module Type	CPU Module
Processor Speed	300 MHz
User Memory	10 MB Battery-Backed RAM
Non-Volatile Memory	10 MB Flash
Ethernet Ports	2 × 10/100 Mbps
Serial Ports	3 × RS-232/RS-485
Supported Protocols	SRTP, Modbus TCP, EGD, Modbus RTU
Discrete I/O Capacity	Up to 32K bits
Analog I/O Capacity	Up to 32K words
Operating Temperature	0°C to 50°C (up to 60°C with fan tray)
Mounting	Rack-mounted (Slot 1 of RX7i Chassis)
Dimensions (H × W × D)	241 mm × 30 mm × 187 mm
Weight	Approx. 0.65 kg

The compact width allows efficient cabinet space utilization while maintaining strong mechanical stability within the RX7i backplane.

Recommended Related Models

IC698CHS009 – 9-Slot Rear Mount Rack
IC698PSA100 – 100W Power Supply
IC698PSA350 – 350W Power Supply
IC698ETM001 – Ethernet Module
IC697MDL740 – Digital Input Module

These modules enable the construction of a complete, high-reliability RX7i automation system.

Popular GE Automation Models

IC698CPE020 – Enhanced Performance CPU
IC697CPU780 – High-Capacity Controller
IC695ETM001 – Ethernet Interface Module
IC695PSD140 – 140W Power Supply
IC697ALG320 – Analog Input Module

These models are frequently implemented in industrial control systems requiring stable, long-term operation.

Applications

The IC698CPE010 CPU Module is widely applied in:

Industrial manufacturing control systems
Energy and power generation facilities
Oil and gas automation platforms
Water and wastewater treatment plants
Material handling and logistics automation
Packaging and process production lines

Its integrated networking capabilities simplify communication with HMIs, SCADA systems, and remote I/O stations.

Advantages

Integrated Communication Architecture
Dual Ethernet ports and serial interfaces reduce the need for additional communication modules.

Stable Processing Performance
300 MHz processing power supports deterministic logic execution and data handling.

Industrial Durability
Designed for rack-mounted installation in high-demand industrial environments.

Memory Protection
Battery-backed RAM ensures program and data retention during power interruptions.

Expandable System Design
Fully compatible with RX7i rack systems for scalable automation architecture.

Technical FAQs

1. Where is the IC698CPE010 installed?
It is installed in Slot 1 of an RX7i rack chassis.

2. Does it have built-in Ethernet ports?
Yes, it includes two integrated 10/100 Mbps Ethernet interfaces.

3. What is the processor speed?
The CPU operates at 300 MHz.

4. How much user memory is available?
10 MB of battery-backed RAM.

5. Is flash memory included?
Yes, 10 MB of onboard flash memory is provided.

6. What programming software is required?
It is programmed using Proficy Machine Edition Logic Developer.

7. What is the operating temperature range?
0°C to 50°C standard, extendable to 60°C with a fan tray.

8. Can it support distributed I/O systems?
Yes, via Ethernet and compatible RX7i modules.

9. What industries commonly use this module?
Manufacturing, utilities, oil & gas, and process industries.

10. Why choose the IC698CPE010?
It offers reliable processing, integrated networking, and scalable rack-based system design—ideal for industrial control environments requiring stability and flexibility.
