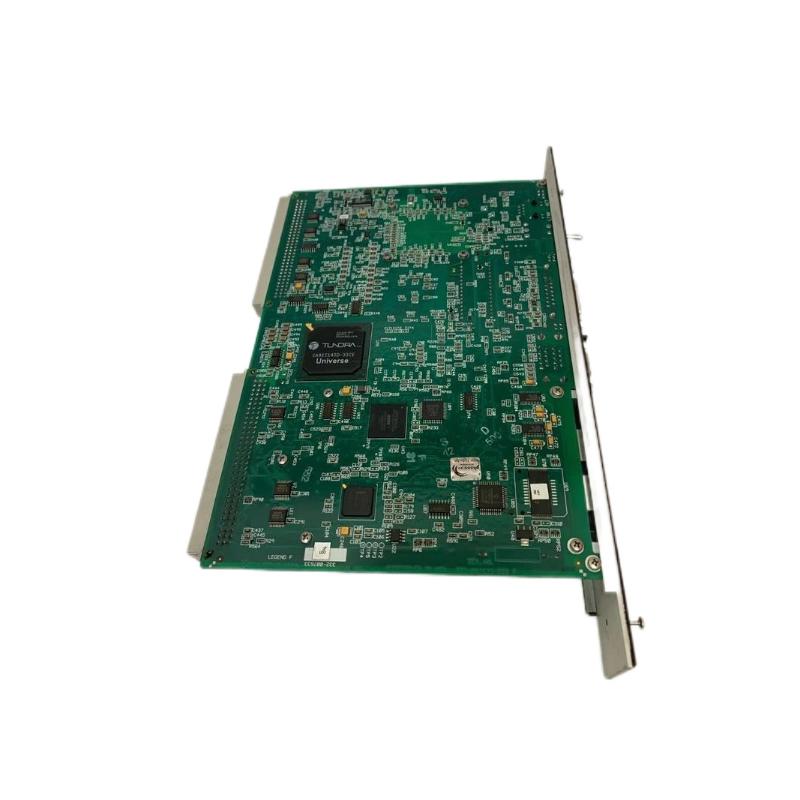

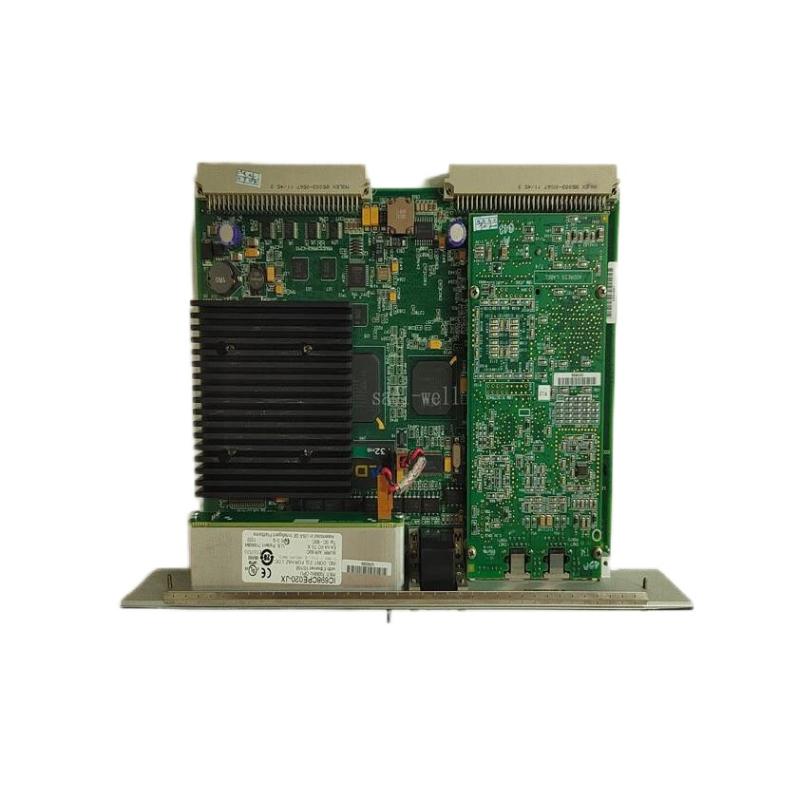

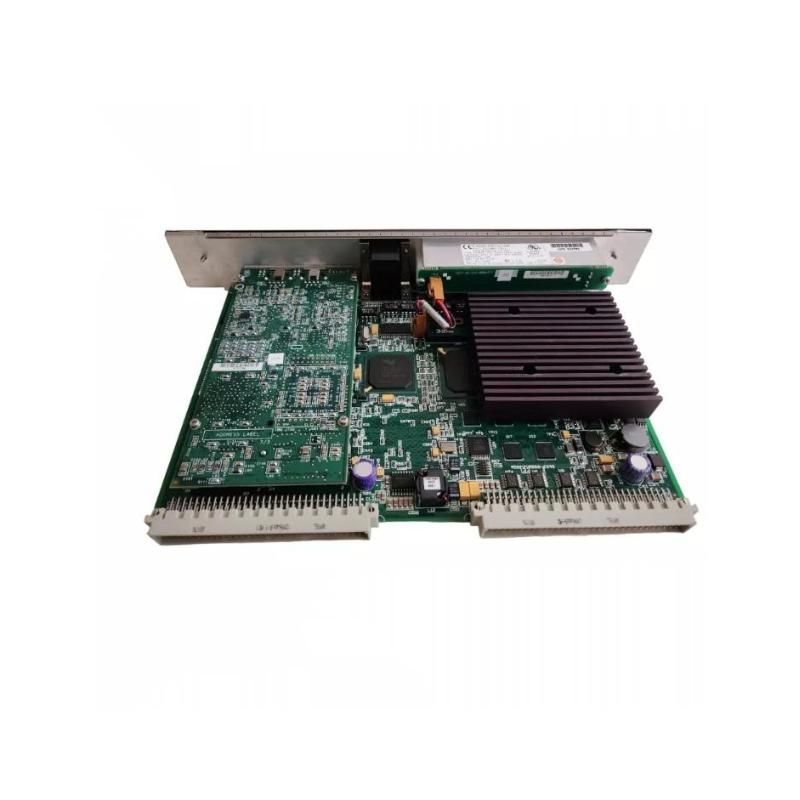

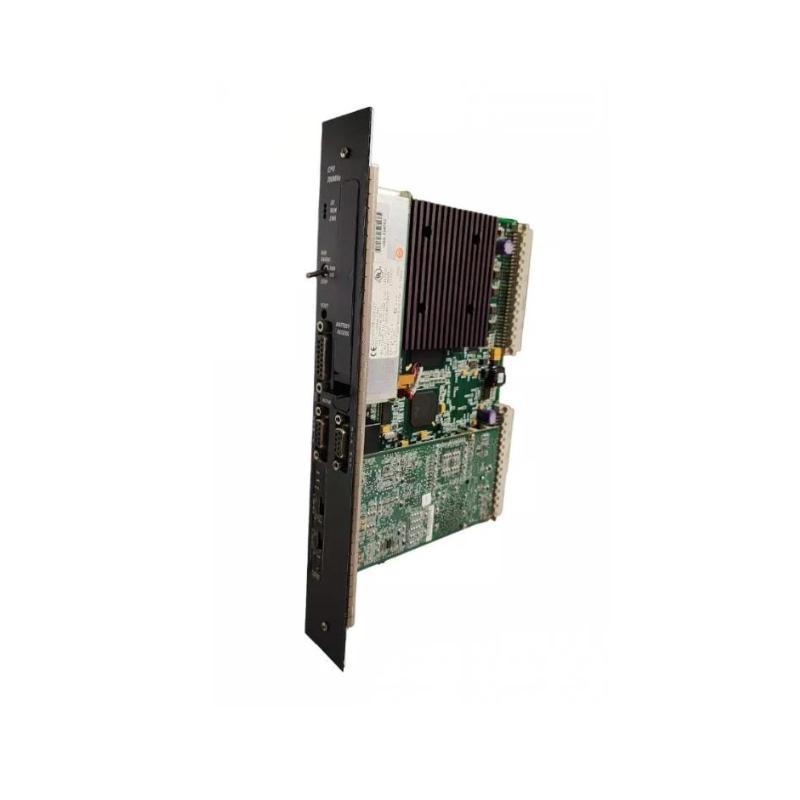

The GE IC698CPE020 is a rack-mounted CPU Module designed for the PACSystems RX7i platform, bringing enhanced processing power and advanced communication capabilities to industrial automation systems. Powered by a 700 MHz Pentium III processor and equipped with robust memory resources, this CPU delivers fast logic execution, extensive protocol support, and built-in networking for applications where real-time responsiveness and reliability are essential.
Built for demanding factory floors and process environments, the IC698CPE020 integrates seamlessly into RX7i rack chassis and supports a broad array of I/O and communication modules. Its flexible compatibility and performance make it suitable for controlling complex machines, distributed I/O architectures, and industrial networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC698CPE020 |
| Module Type | CPU Module |
| System Platform | PACSystems RX7i |
| Processor | 700 MHz Pentium III microprocessor |
| User RAM | 10 MB battery-backed RAM |
| Flash Memory | 10 MB non-volatile memory |
| Ethernet Ports | 2 × 10/100 Mbps RJ-45 |
| Serial Ports | 2 × RS-232/RS-485 + 1 Station Manager |
| Supported Protocols | SRTP, Modbus TCP (Client/Server), EGD, Modbus RTU Slave, SNP |
| I/O Memory | 32 Kbits discrete; 32 Kwords analog |
| Program Blocks | Up to 512 blocks (128 KB max each) |
| Operating Voltage | 5–12 V DC |
| Operating Temperature | 0 °C to 60 °C (fan advised) |
| Dimensions (H × W × D) | 132 mm × 33 mm × 125 mm (approx.) |
| Weight | ~0.91 kg (2.00 lbs) |
The compact and lightweight construction ensures efficient use of rack space while maintaining rugged electrical and mechanical performance appropriate for industrial enclosures.
Recommended Related Models
-
IC698CHS009 – 9-Slot Rear Mount Rack Chassis
-
IC698PSA100 – 100 W Power Supply Module
-
IC698PSA350 – 350 W Power Supply Module
-
IC698ETM001 – Ethernet Communication Module
-
IC697MDLxxx – Digital/Analog I/O Modules
These modules, when combined, help form a complete PACSystems RX7i automation system tailored to diverse control architectures.
