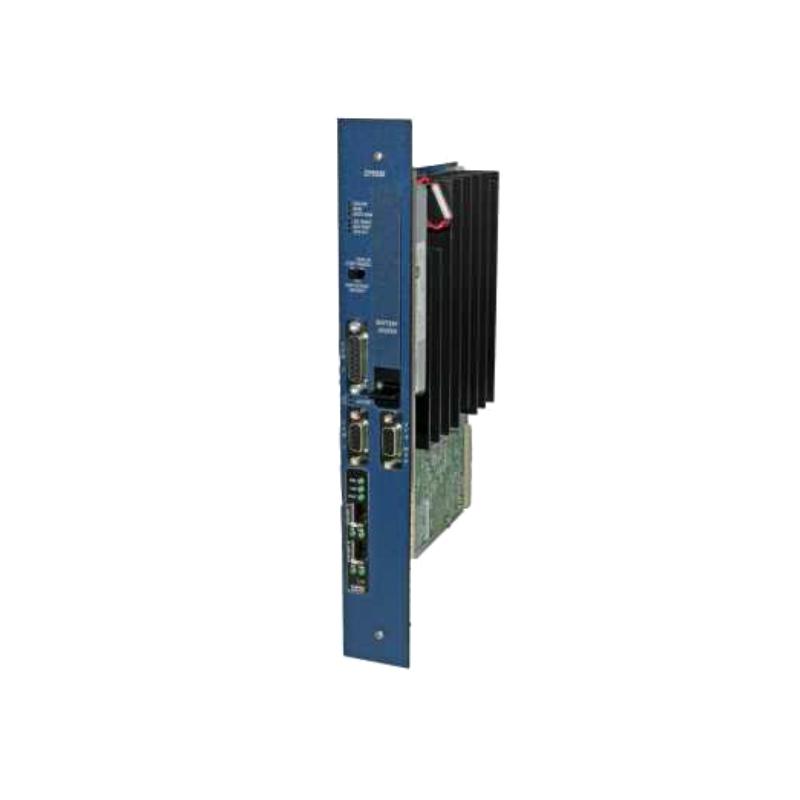

The GE IC698CPE030 is a high-performance Central Processing Unit (CPU) Module engineered specifically for the PACSystems RX7i industrial automation platform. Equipped with a 600 MHz Pentium-M microprocessor and substantial memory resources, this CPU delivers fast logic execution, extensive communication options, and robust data handling for mid-to-high-complexity control systems. Its integration of dual Ethernet ports, serial interfaces, and built-in web/FTP services enables seamless connectivity with SCADA, HMI, and distributed I/O devices.
Designed for industrial control cabinets, the IC698CPE030 offers reliable rack-mounted performance, scalable integration, and support for a broad ecosystem of RX7i modules. Whether used for process automation, manufacturing line control, or integrated machine architectures, this module combines power, flexibility, and industrial durability to support demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC698CPE030 |
| Module Type | CPU Module |
| Platform | GE PACSystems RX7i |
| Processor | 600 MHz Pentium-M microprocessor |
| User Memory (RAM) | 64 MB battery-backed RAM |
| Flash Memory | 64 MB non-volatile Flash |
| Ethernet Ports | 2 × 10/100 Mbps auto-sensing |
| Serial Ports | 1 × RS-232, 1 × RS-485, 1 × Station Manager |
| Supported Protocols | SRTP, Modbus TCP (Server/Client), EGD, Modbus RTU Slave, SNP, Serial I/O |
| Discrete I/O Memory | Up to 32 K bits |
| Analog I/O Memory | Up to 32 K words |
| Program Blocks | Up to 512 blocks (≤128 KB each) |
| Operating Voltage | +5 V, +15 V, −12 V DC |
| Operating Temperature | 0 °C to 50 °C (extendable with fan tray) |
| Dimensions (H × W × D) | 160 mm × 160 mm × 120 mm (approx.) |
| Weight | ~1.0 kg (approx.) |
The module’s balanced footprint supports efficient installation in standard RX7i racks while maintaining industrial robustness and heat dissipation performance.
Recommended Related Models
-
IC698CHS009 – 9-Slot Rear-Mount RX7i Rack Chassis
-
IC698PSA100 – 100 W Power Supply Module
-
IC698PSA350 – 350 W Power Supply Module
-
IC698ETM001 – Ethernet Communication Module
-
IC697MDLxxx – Digital / Analog I/O Modules
Pairing the IC698CPE030 with these modules completes a highly capable PACSystems RX7i control architecture suited for a wide range of automation challenges.
