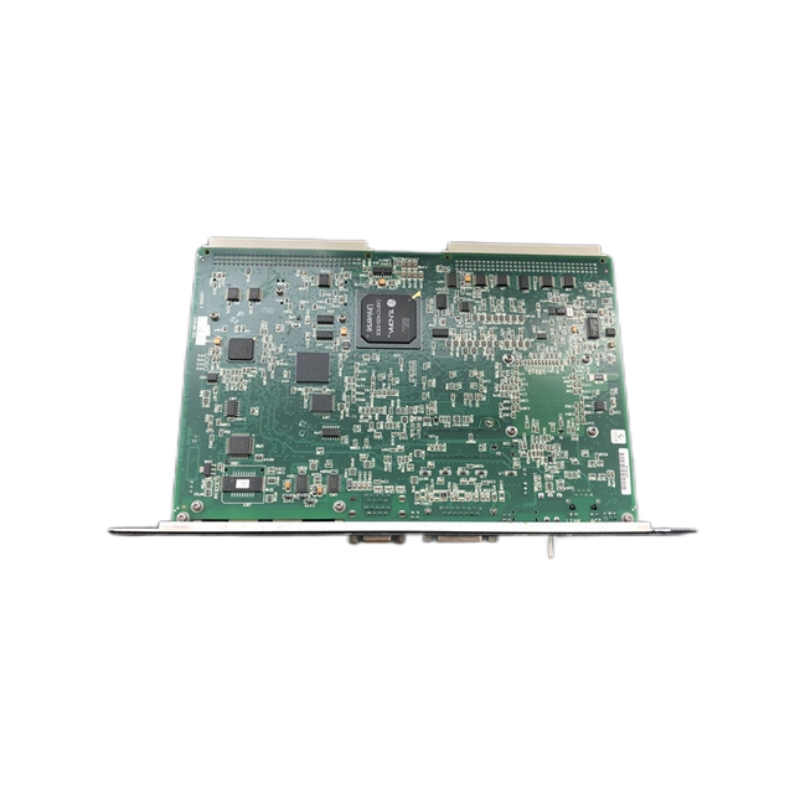

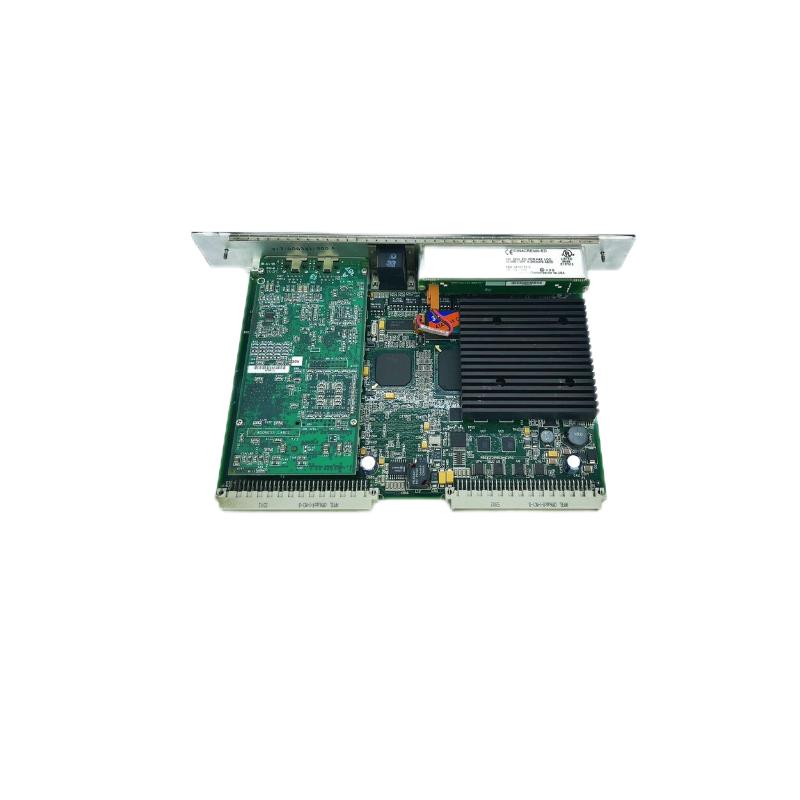

GE IC698CRE020 PACSystems RX7i Redundancy CPU Module with 700 MHz Pentium III for High Availability Control Systems
GE IC698CRE020 PACSystems RX7i Redundancy CPU Module with 700 MHz Pentium III for High Availability Control Systems
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC698CRE020 Product Origin:USA Product Dimensions:85 mm × 120 mm × 140 mm Product Weight:0.71 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC698CRE020 is a high-availability redundancy CPU module designed for the PACSystems RX7i industrial automation platform. Engineered to ensure continuous operation even in mission-critical applications, this module supports hot-standby redundancy, enabling rapid switchover between primary and backup CPUs to minimize system downtime. With robust processing performance, ample user memory, and flexible communication support, the IC698CRE020 is ideal for systems that demand high reliability and scalable control performance.
Technical Specifications
Parameter
Specification
Model
IC698CRE020
Module Type
Redundancy CPU Module
Platform
PACSystems RX7i
Processor
Intel Pentium III, 700 MHz
User RAM
10 MB battery-backed RAM
Flash Memory
10 MB non-volatile flash
Communication Interfaces
RS-232, RS-485, Ethernet (Auto 10/100 Mbps)
Supported Protocols
Modbus RTU, SNP, Serial I/O, SRTP (Ethernet)
Redundancy Support
Hot Standby (requires IC698RMX016 module)
Embedded Ports
1 Ethernet, 3 Serial
Program Blocks
Up to 512 blocks (max 128 KB each)
Floating Point Support
Yes
Operating Temp.
0 – 60 °C (32 – 140 °F)
Dimensions (H × W × D)
85 mm × 120 mm × 140 mm
Weight
0.71 kg
This redundancy CPU delivers reliable real-time control and synchronization, ensuring continued operation in systems where uptime is critical.
Recommended Related Models
IC698RMX016 – Redundancy Memory Exchange Module
IC698CHS009 – 9-Slot RX7i Rack Chassis
IC698PSA350 – 350 W Power Supply Module
IC698ETM001 – Ethernet Communication Module
IC697MDL740 – Digital I/O Module
Pairing these components with the IC698CRE020 forms a highly resilient PACSystems architecture suitable for demanding applications.
Popular GE PACSystems Models
IC698CPE020 – Standard 700 MHz CPU Module
IC698CPE010 – 300 MHz CPU
IC698CPE040 – Enhanced Performance CPU
IC697ALG320 – Analog Input Module
IC697BEM711 – Bus/Network Interface Module
These models are widely deployed for varied automation requirements and complement redundancy configurations for scalable control performance.
Applications
The IC698CRE020 excels in environments that require constant uptime and fault tolerance, including:
Continuous manufacturing and process automation
Power generation and electrical grid control
Oil & gas production and refining systems
Water/wastewater treatment plants
Large infrastructure and transportation systems
Distributed SCADA control architectures
Its hot-standby redundancy feature makes it ideal where unavoidable downtime could lead to safety risks or substantial financial losses.
Advantages
High Availability Control
Supports hot-standby redundancy with rapid failover to maintain operation continuity.
Robust Processing Performance
A 700 MHz Pentium III CPU balances speed and reliability for industrial logic and data handling tasks.
Flexible Communication
Integrated serial and Ethernet interfaces support a wide range of protocols for seamless connectivity.
Ample Memory Resources
Battery-backed RAM and non-volatile flash protect user programs and data.
Seamless Integration
Designed to fit PACSystems RX7i racks and integrate with legacy Series 90-70 modules when required.
Technical FAQs
What distinguishes the IC698CRE020 from standard CPU modules?
It is a redundancy CPU designed for high availability with hot standby support.
What processor speed does the module use?
It uses a 700 MHz Pentium III processor.
How much RAM and flash memory does it have?
10 MB battery-backed RAM and 10 MB non-volatile flash.
Does it support Ethernet communications?
Yes, via an integrated auto-sensing 10/100 Mbps Ethernet port.
How many serial ports are built in?
Three serial ports (RS-232/RS-485).
What redundancy hardware is required?
It requires the IC698RMX016 Redundancy Memory Exchange module for synchronized operation.
What is the operating temperature?
Typically 0 – 60 °C (32 – 140 °F).
Can it execute floating-point math?
Yes, it supports floating-point operations.
Where is the module installed?
In Slot 1 of an RX7i rack backplane.
Why is this module chosen for critical systems?
Its redundancy capability ensures minimal disruption in case of CPU failure, critical for uptime-sensitive industries.
