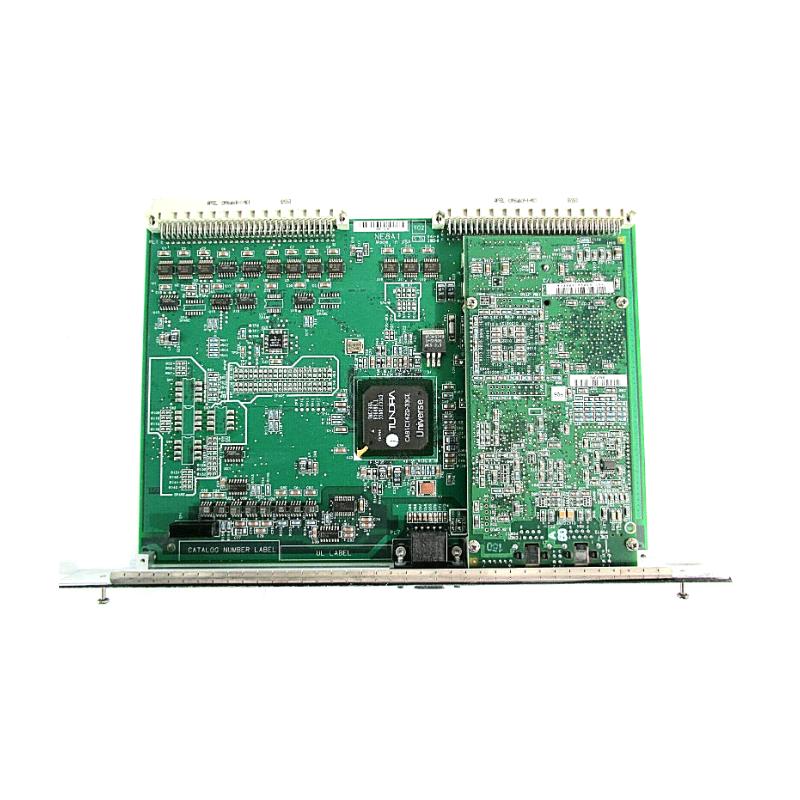

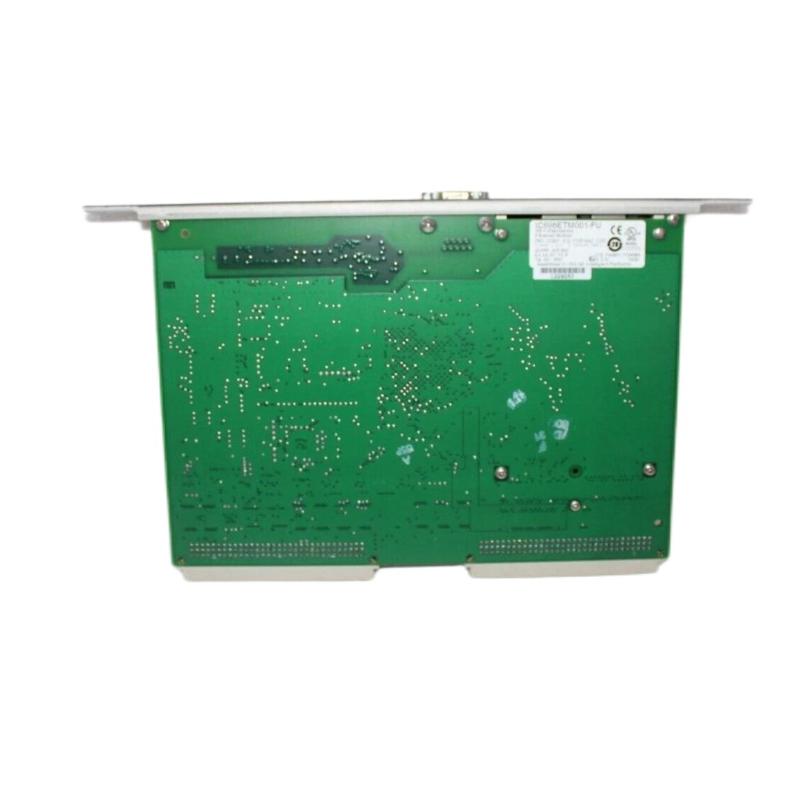

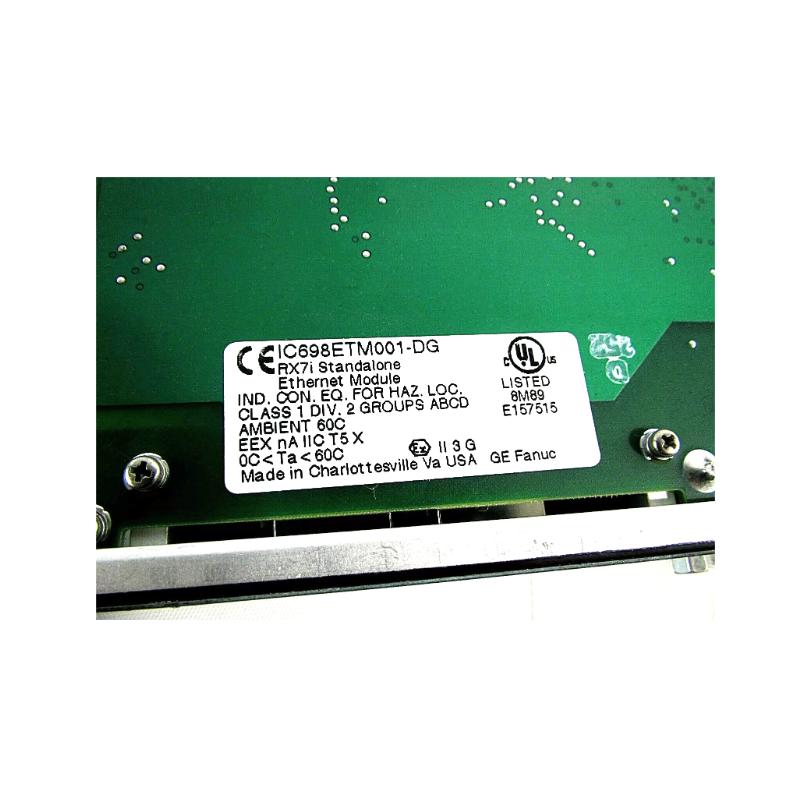

The GE IC698ETM001-DG is an enhanced revision of the classic IC698ETM001 Ethernet Interface Module tailored for PACSystems RX7i automation systems. Built to extend communication capabilities, this module enables robust Ethernet connectivity between RX7i controllers and industrial networks using standard TCP/IP, SRTP, and Ethernet Global Data (EGD) protocols. It’s ideal for distributed control systems, real-time data exchange, and seamless integration with SCADA, HMIs, and remote devices.

This “-DG” revision indicates a specific hardware/firmware variant of the Ethernet module, maintaining compatibility with RX7i racks while offering reliable network performance for demanding industrial environments.

Technical Specifications

Parameter	Specification
Model	IC698ETM001-DG
Module Type	Ethernet Interface Module
Platform	PACSystems RX7i
Ethernet Ports	2 × 10/100 Mbps RJ-45 auto-sensing
Ethernet Protocols	TCP/IP, SRTP, EGD (Ethernet Global Data)
Serial Port	1 × RS-232 Station Manager
Operating Voltage	+5 V DC (from rack backplane)
Current Draw	~1.2–1.5 A @ +5 V DC
Operating Temp. Range	0 °C to +60 °C
Mounting	Rack-mounted (single slot)
Supported Features	Redundant IP addressing, station management, diagnostics
Dimensions (H × W × D)	120 mm × 292 mm × 47 mm (approx. converted from 4.6 cm × 29.2 cm × 19.1 cm)
Weight	0.60 kg (approx.) (1 lb 6.2 oz per catalog)

Physical dimensions above are converted to millimeters based on typical surplus listings for the IC698ETM001 family.

Recommended Related Models

IC698CHS009 – 9-Slot RX7i Rack Chassis
IC698PSA100 – 100 W Power Supply Module
IC698PSA350 – 350 W Power Supply Module
IC698CPE020 – Standard RX7i CPU Module
IC698CPE030 – Enhanced Performance RX7i CPU

Together with these modules, the ETM001-DG creates an efficient network-ready PACSystems architecture for complex automation designs.

Popular GE RX7i Modules

IC698CPE010 – Entry-Level CPU Module
IC698CRE020 – Redundancy CPU for High Availability
IC697MDL740 – Digital I/O Module
IC697ALG320 – Analog Input Module
IC697BEM711 – Bus Controller / Network Expansion

These units are commonly found in industrial installations leveraging Ethernet communication to streamline control and data acquisition.

Applications

The IC698ETM001-DG module supports Ethernet connectivity in scenarios such as:

Distributed controller networks with remote I/O
Factory automation and data collection systems
Large-scale SCADA connectivity and HMI communications
Energy management and utilities automation
Ethernet integrations with third-party devices
Industrial Ethernet backbones with redundant paths

By enabling standard Ethernet protocols, it simplifies communication across heterogeneous systems.

Key Advantages

Dual Ethernet Connectivity
Two auto-sensing 10/100 Mbps ports allow flexible network topology and potential daisy-chain deployments.

Protocol Versatility
Flexible support for TCP/IP, SRTP, and EGD simplifies integration with plant networks and visualization systems.

Redundant IP Addressing
Supports redundant IP assignments in systems with redundant CPUs for higher availability.

Easy Rack Integration
Mounts into a single RX7i slot without consuming excessive space in control cabinets.

Station Management & Diagnostics
Provides built-in station management tools and LED indicators to assist in diagnostics and troubleshooting.

Technical FAQs

1. What networks does this module support?
It supports IEEE 802.3 Ethernet at 10 Mbps and 100 Mbps speeds.

2. Can it provide programming and configuration services over Ethernet?
Yes — it supports TCP/IP communications including SRTP and full PLC programming via Ethernet.

3. How many IP addresses can it host?
It typically hosts one primary IP address and supports redundant IP addressing.

4. Is redundant Ethernet supported?
Redundant IP addressing enables standby designs when used with hot-standby CPUs.

5. What is the operating temperature range?
0 °C to +60 °C.

6. Does it include built-in diagnostic LEDs?
Yes — LED indicators help monitor module and network status.

7. What type of serial port is available?
An RS-232 Station Manager port is included for configuration and diagnostics.

8. Can it be used with remote I/O systems?
Yes — Ethernet connectivity enables communication with distributed I/O.

9. What is its weight?
Approximately 0.60 kg.

10. Where does it install?
It installs into a single slot of an RX7i PACSystems rack — usually adjacent to CPU and I/O modules.
