Introduction

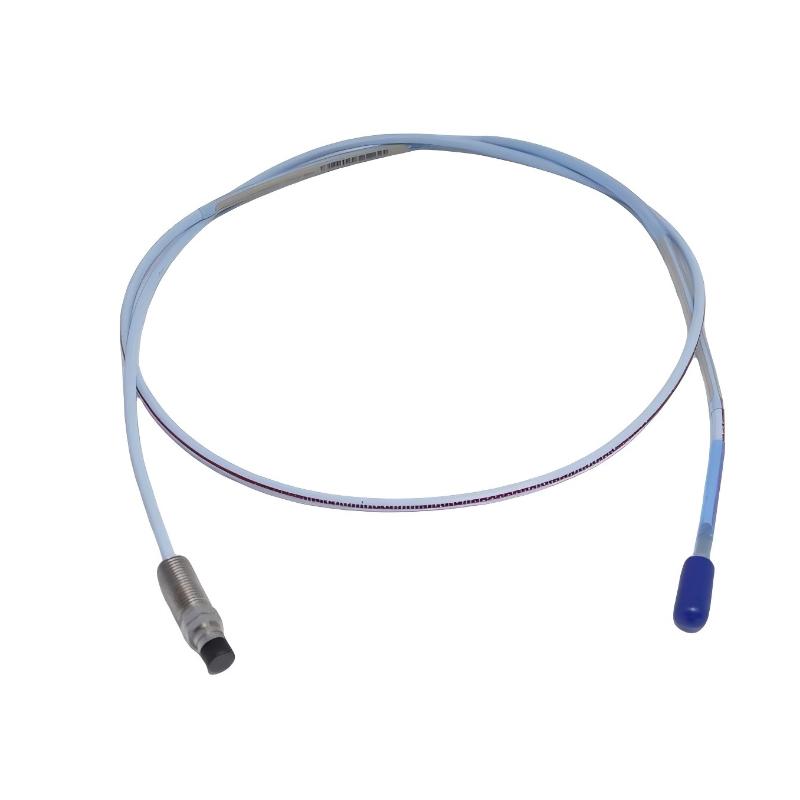

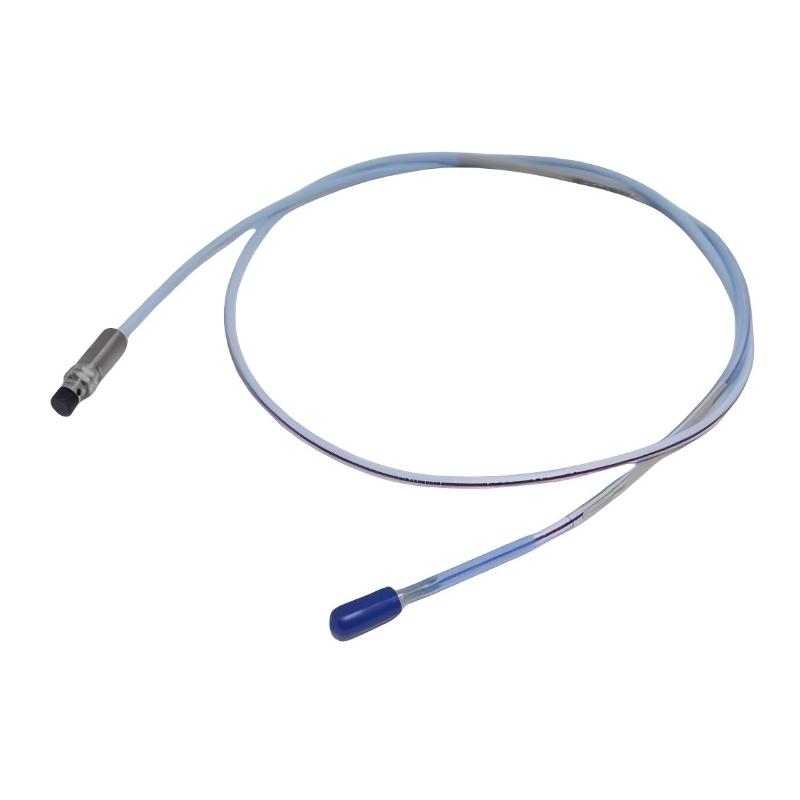

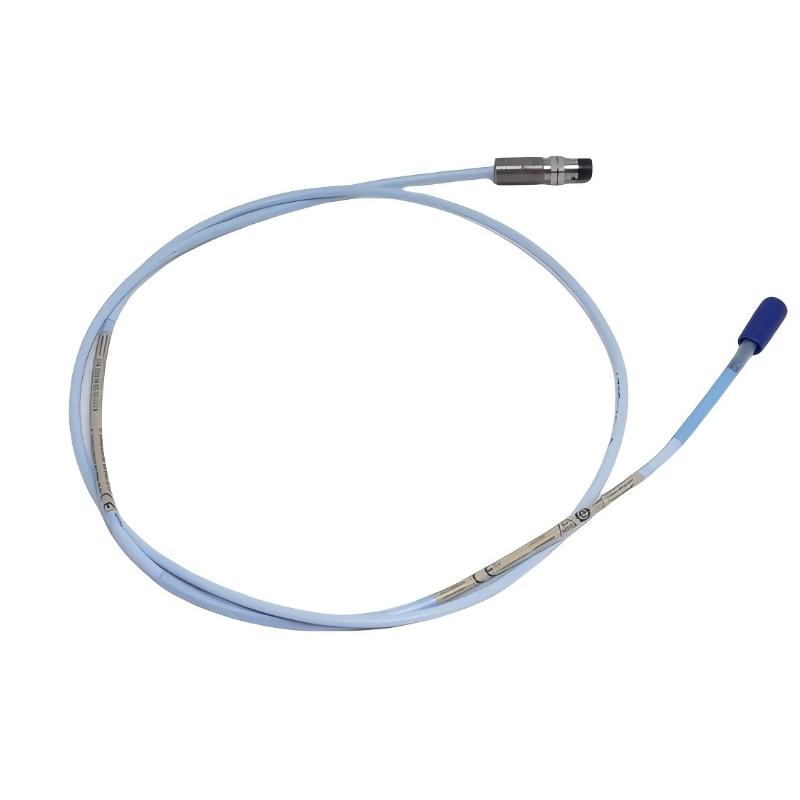

The Bently Nevada 330196-05-30-10-CN 3300 XL 8 mm ETR Reverse Mount Probe is designed to provide accurate, reliable vibration and displacement measurement in demanding industrial machinery. Its reverse-mount configuration allows flexible installation in tight or unconventional spaces while maintaining precise measurement capabilities.Engineered for durability, the probe withstands continuous operation in harsh environments while providing repeatable, high-resolution data. Its integration with the 3300 XL system ensures real-time monitoring and early warning of mechanical issues, helping protect critical machinery and improve operational reliability.

Technical Specifications

Parameter	Specification
Product Type	3300 XL 8 mm ETR Reverse Mount Probe
Model	330196-05-30-10-CN
Mounting Type	Reverse Mount
Probe Diameter	8 mm
Total Length	1.0 meter
Weight	0.323 kg
Compatible System	3300 XL Machinery Protection System

Recommended Related Models

330101-00-20-05-01-05 — 3300 XL 8 mm Standard Probe
330104-01-05-50-02-00 — 3300 XL 8 mm Probe with Extended Cable
330130-045-01-05 — 3300 XL Standard Extension Cord
21000-16-05-00-065-04-02 — 3300 XL Proximity Probe Housing Assembly

Popular Related Models

330104-00-12-10-02-CN — 3300 XL 8 mm Proximity Probe
330708-00-20-50-02-05 — 3300 XL 11 mm Proximity Probe
330101-00-14-10-02-05 — 3300 XL 8 mm Proximity Probe
330101-00-20-05-02-00 — 3300 XL 8 mm Proximity Probe

Typical Application Areas

The 330196-05-30-10-CN 3300 XL Reverse Mount Probe is engineered for precision shaft vibration and position monitoring in rotating machinery. Its reverse-mount design allows installation in constrained spaces while maintaining accurate probe alignment and repeatable measurements.

Common deployment environments include:

Steam and gas turbine monitoring systems
Industrial compressors and pumps
Power generation and energy production equipment
Rotating machinery in chemical and petrochemical plants
Retrofit projects requiring reverse-mount sensor solutions
High-speed industrial machinery where accurate clearance measurement is essential

Key Advantages

Reverse-Mount Flexibility – Ideal for tight spaces and unconventional installation angles.
High Precision Sensing – Provides accurate displacement and vibration measurements.
Rugged Construction – Designed for industrial environments and continuous operation.
Long Service Life – Maintains stability and reliability over extended periods.
Easy Integration – Compatible with 3300 XL monitoring systems.
Lightweight Design – Simplifies installation without compromising performance.

Technical FAQs

1. What is the main purpose of this probe?
It monitors shaft vibration and position in industrial rotating equipment.

2. What does “Reverse Mount” mean?
The probe is installed in the opposite orientation to standard probes to fit tight or unusual mounting locations.

3. What type of machinery is it used for?
Steam turbines, gas turbines, compressors, pumps, and other rotating equipment.

4. Is it compatible with 3300 XL systems?
Yes, it integrates seamlessly with 3300 XL monitoring systems.

5. What is the probe’s sensing diameter?
8 mm sensing diameter.

6. How long is the total probe cable?
1.0 meter.

7. Can it operate in harsh industrial environments?
Yes, it is designed for rugged conditions and continuous operation.

8. Is calibration required after installation?
Standard system setup and calibration procedures should be followed.

9. What maintenance is required?
Periodic inspection of mounting and cable integrity is recommended.

10. What is the probe’s weight?
0.323 kg.
