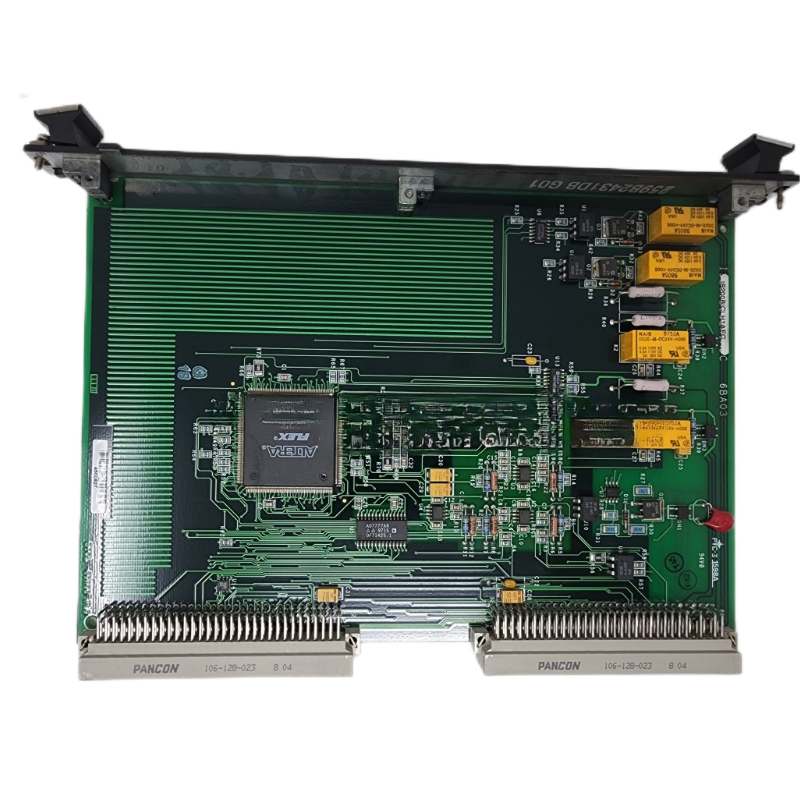

The GE IS200BICIH1A is an industrial-grade Bridge Interface Controller (BIC) Board used in GE Fanuc Mark VI / IS200 series control systems, particularly in turbine automation and distributed control architectures. This board functions as a specialized interface between backplane buses and power-stage or I/O subsystems, facilitating H-bridge control logic in complex machinery environments such as gas or steam turbine drives. It supports deterministic switching control and advanced gating functions required for modern industrial control applications.
Built to exacting industrial standards, the IS200BICIH1A integrates with GE Speedtronic control racks and provides robust signal routing, enhanced logic interface features, and compatibility with high-performance gate drivers — making it suitable for power electronics control and precision automation tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IS200BICIH1A |
| Module Type | Bridge Interface Controller (Control/Interface Board) |
| System Compatibility | GE Fanuc Mark VI / IS200 Series Industrial Control Systems |
| Primary Function | Interface and control logic for H-bridge and driver modules |
| Backplane Interface | Direct backplane connection in Mark VI/IS200 chassis |
| Typical Operating Voltage | Backplane-supplied regulated voltages |
| Communication | Control logic and gate driver interfaces |
| Operating Temperature | Industrial range (0 °C to +60 °C)* |
| Mounting | Rack-mountable printed circuit board with connectors |
| Dimensions (H × W × D) | ~160 mm × 100 mm × 35 mm (approx.) |
| Weight | ~0.45 kg (approx.) |
*Exact environmental specifications vary with system integration and chassis cooling provisions.
Recommended Companion Modules
To build a complete Mark VI or IS200 control architecture, engineers often integrate the IS200BICIH1A with:
-
IS200ERAXH1A – PLC controller/logic module
-
IS200HSLAH1A – High-speed serial link interface
-
IS200EISBH1A – Exciter ISBus communication board
-
IS200EMIOH1A – I/O precision module
Pairing these with the BIC controller ensures cohesive communication, precise logic execution, and full signal integration across the control system.
Popular GE Industrial Control Modules
In Mark VI and IS200 automation systems, these modules are commonly used alongside bridge interface boards:
-
IS200DTCIH1ABB – Thermocouple + digital input module
-
IS200AEADH1A – Analog I/O module
-
IS200ESELH1A – Digital input module
-
IS200VAICH1CBA – High-resolution analog input module
-
IS200ERIOH1A – I/O regulator board
These modules provide monitoring, signal acquisition, and process control support essential for turbine/regulator systems.
