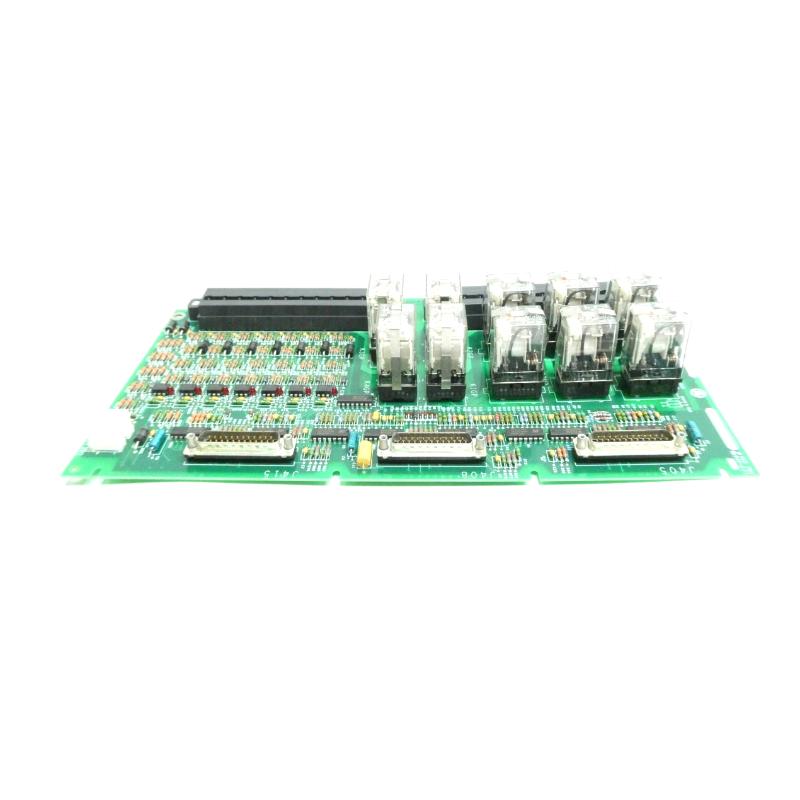

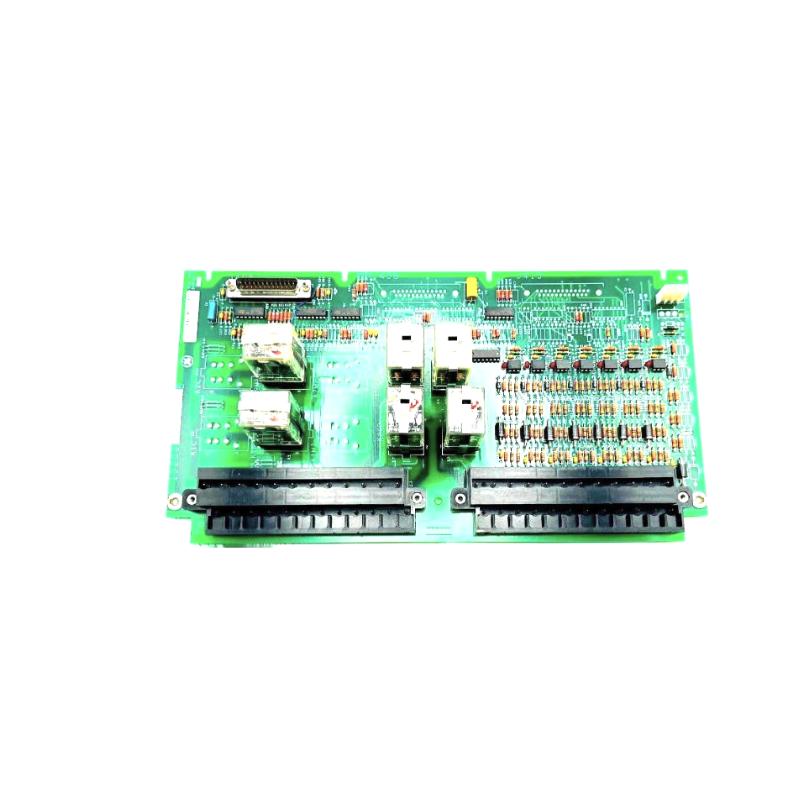

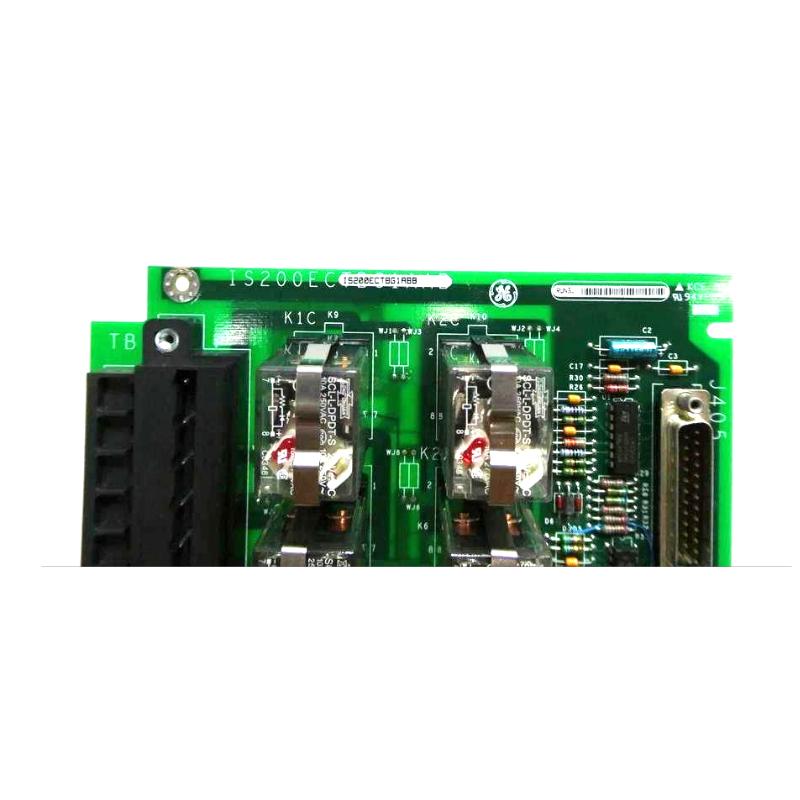

The GE IS200ECTBG1A is an industrial Exciter Current Transformer Bridge (ECTB) Board engineered for precision AC current feedback conditioning in GE EX2100 Excitation Control Systems and Mark VI Speedtronic turbine automation platforms. This module bridges high-voltage current transformer (CT) secondary signals into protected, isolated, low-level feedback suitable for controller and regulation logic. Its board-level integration improves sensing accuracy, system reliability, and protection coordination — making it essential for power generation, turbine excitation, and other mission-critical industrial control environments. (axcontrol.com)

Technical Specifications

Specification	Details
Model	IS200ECTBG1A
Module Type	Current Transformer Bridge (ECTB) Board
Target Systems	GE EX2100 / Mark VI Speedtronic Automation
Primary Function	Converts CT secondary feedback into conditioned analog signals
Input Signals	Differential AC current from external CT secondaries
Output Signal Range	Low-level analog voltages for controller acquisition
Linearity	Maintains proportional response across measurement range
Backplane/Connectors	DIN and terminal block interfaces for field wiring and backplane linkage
Signal Conditioning	Transformer isolation + bridge conditioning + filtering
Mounting	Rack or auxiliary cabinet backplane mount
Operating Temperature	Typical industrial range (0 °C to ~60 °C)
Dimensions (H × W × D)	~263 mm × 58 mm × 28 mm (board standard size)
Weight	~0.45 kg (approx.)

The IS200ECTBG1A transforms raw current transformer outputs into stable, isolated feedback signals used by excitation control algorithms for voltage/current regulation. (axcontrol.com)

Recommended Related Modules

To build or service a complete generator excitation and turbine control rack, the ECTB board is typically paired with:

IS200EACFG2A / IS200EACFG3A – AC Voltage Feedback Boards
IS200EMIOH1A – Main I/O Interface Board
IS200DSPXH1D – Digital Signal Processor / Control Board
IS200ACLEH1A / H1B – Application Control Modules
IS200ERIOH1A – I/O Regulator Board

These modules form a comprehensive feedback, processing, and control signal chain for advanced industrial automation systems.

Popular GE Mark VI / EX2100 Modules

IS200DRLYH1B – Relay Output Terminal Board
IS200BICIH1A – Bridge Interface Controller
IS200EISBH1A – ISBus Communication Interface
IS200EXAMG1A – Excitation Amplifier Module
IS200TRPGH1B – Terminal Protection Module
These boards are widely adopted in turbine and process control installations where accurate feedback and actuator driving logic are required.

Applications

The IS200ECTBG1A board is used in:

Current feedback acquisition for exciter voltage/current regulation
Generator excitation systems in power plants
Turbine control (gas/steam) automation
Protective feedback loops for power quality and overcurrent detection
Signal conditioning for control logic in real-time systems

Accurate current feedback is critical for maintaining stable generator output under load variations, improving system efficiency and protective response.

Advantages

Precise Current Sensing
Converts high-current CT outputs into accurate, low-level feedback for control logic.

Bridge Conditioning Architecture
Provides isolation and filtering, enhancing measurement stability and noise rejection.

Backplane Integration
Fits standard EX2100 and Mark VI backplanes with secure connector interfaces for reliable system integration.

Industrial-grade Construction
Designed for continuous operation under typical control cabinet conditions and robust enough for generator/excitation environments.

Supports Protection & Control
Enables protective algorithms and real-time control loops to monitor current behavior effectively.

Technical FAQs

1. What is the purpose of the IS200ECTBG1A?
It conditions high-current transformer signals into stable, isolated analog feedback suitable for controller logic.

2. Where is it installed?
In the excitation rack backplane or auxiliary control cabinet of EX2100/Mark VI systems.

3. What kinds of signals does it handle?
Differential AC current from CT secondaries.

4. Does it provide isolation?
Yes — transformer and bridge circuitry isolate field CT signals from control electronics.

5. Why is this board critical?
Accurate current feedback is essential for real-time excitation regulation and protective control.

6. What systems use it?
GE EX2100 Excitation Control and Mark VI turbine automation platforms.

7. How does it interface with controllers?
Through low-level conditioned analog outputs into the main I/O/interface board (e.g., EMIO).

8. What temperature range can it operate in?
Typical industrial range ~0 °C to +60 °C.

9. Is this module field replaceable?
Yes — board-level swap is common during maintenance or retrofit.

10. Can it support multiple CT inputs?
Yes — the bridge architecture accepts differential CT inputs for multi-phase excitation current monitoring.
