GE IS200EPSMG1A EX2100 Exciter Power Supply Module (Excitation Power Module for Mark VI/EX2100 Control Systems)
GE IS200EPSMG1A EX2100 Exciter Power Supply Module (Excitation Power Module for Mark VI/EX2100 Control Systems)
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS200EPSMG1A Product Origin:USA Product Dimensions:263 mm × 58 mm × 210 mm Product Weight:0.70 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

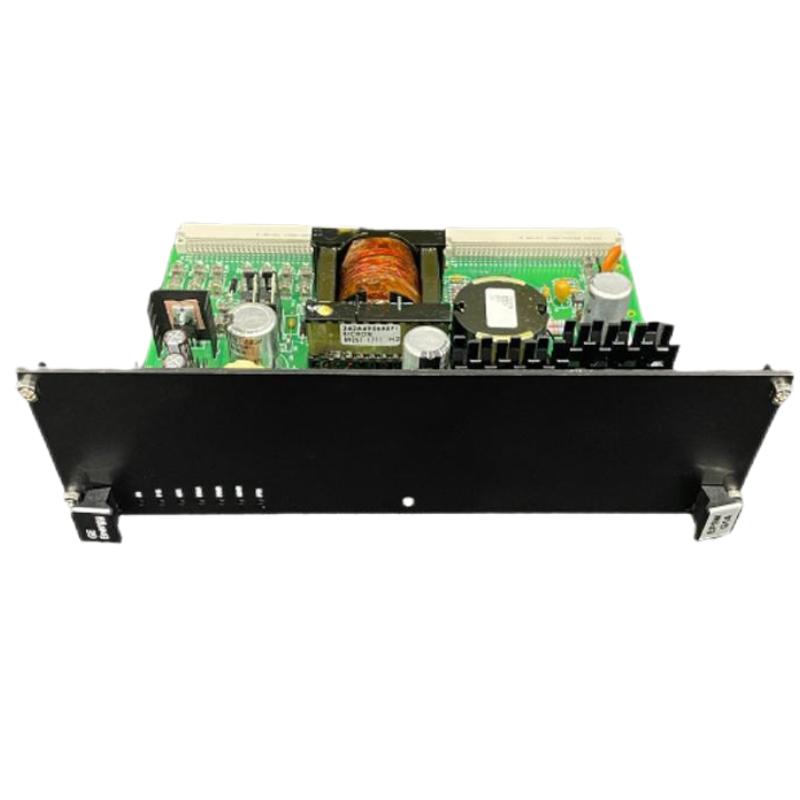

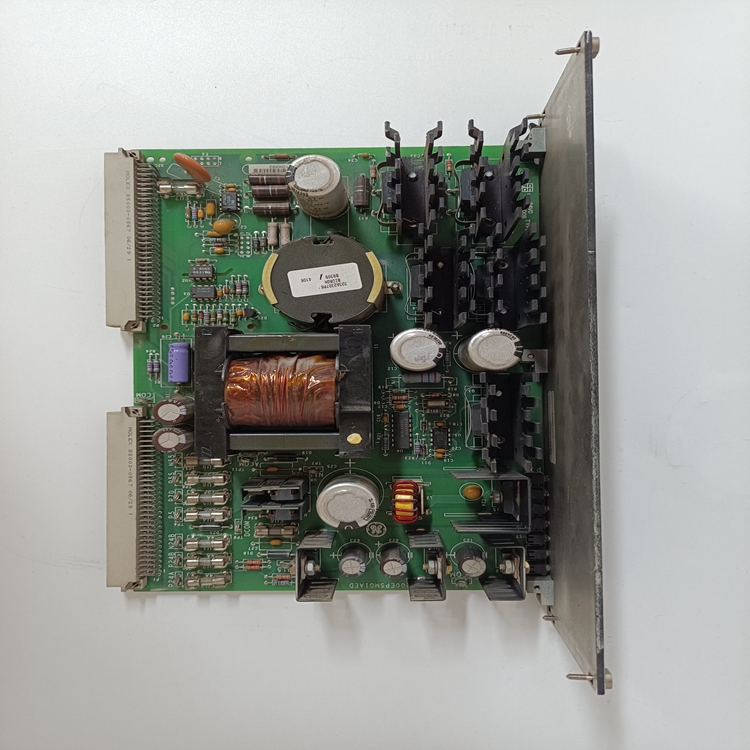

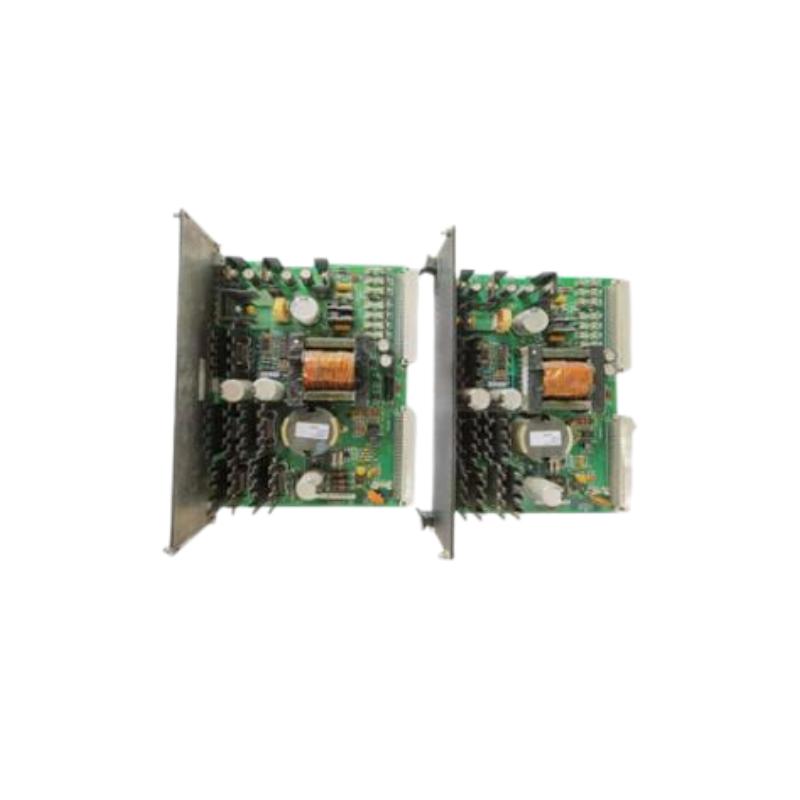

The GE IS200EPSMG1A is a high-performance Exciter Power Supply Module (EPSM) engineered for GE’s EX2100 excitation systems and Mark VI turbine control platforms. Acting as the regulated power backbone of the exciter cabinet, this module converts incoming DC distribution voltage into multiple stable, isolated DC rails required by controllers, feedback boards, protection circuits, and communication interfaces.
In turbine and generator environments where voltage stability directly affects system reliability, the EPSMG1A ensures clean, ripple-controlled power delivery—supporting long-term operational stability and minimizing nuisance faults.
Technical Specifications
Parameter
Specification
Model
IS200EPSMG1A
Module Type
Exciter Power Supply Module
Platform Compatibility
EX2100 / Mark VI
Input Voltage
125 V DC (from EPDM distribution module)
Output Voltages
+5 V DC, ±15 V DC, +24 V DC (regulated rails)
Auxiliary Output
Isolated +70 V DC (contact wetting supply)
Conversion Type
Multi-rail regulated DC conversion
Mounting
EPBP backplane installation
Cooling
Natural convection within cabinet
Operating Temperature
–30 °C to +65 °C
Dimensions (H × W × D)
263 mm × 58 mm × 210 mm (approx.)
Weight
0.70 kg (approx.)
Dimensions and weight are typical for this series and may vary slightly depending on production revision.
Recommended Related Models
For a fully integrated EX2100 excitation control system, this module is typically paired with:
IS200EPDMG1A – Exciter Power Distribution Module
IS200DSPXH1D – Digital Signal Processor Board
IS200EDCFG1B – DC Feedback Board
IS200EACFG3A – AC Feedback Board
IS200EDEXG1B – De-Excitation Control Board
These modules work together to form a complete excitation control, feedback, and protection architecture.
Popular GE Mark VI / EX2100 Modules
IS200DRLYH1B – Relay Output Board
IS200ECTBG1A – Current Transformer Bridge Board
IS200EISBH1A – Exciter ISBus Interface
IS200BICIH1A – Bridge Interface Controller
IS200EMIOH1A – Main I/O Board
These boards are widely deployed in turbine and generator automation cabinets worldwide.
Applications
The IS200EPSMG1A is commonly used in:
Steam turbine generator excitation systems
Gas turbine voltage regulation platforms
Industrial power plant automation
Distributed control systems requiring stable multi-rail power
Retrofit and replacement projects within EX2100 cabinets
It provides consistent voltage rails necessary for precise control loop performance and reliable turbine operation.
Key Advantages
Stable Multi-Rail Output
Delivers multiple tightly regulated DC outputs from a single high-voltage input source.
Isolation for Signal Integrity
Isolated auxiliary outputs enhance signal reliability in high-noise environments.
Backplane Integration
Designed for seamless installation into the EPBP rack, simplifying maintenance and replacement.
Industrial-Grade Reliability
Rated for harsh cabinet conditions typical in power generation facilities.
System Protection Support
Helps maintain stable operation of controllers, de-excitation boards, crowbar circuits, and feedback modules.
Technical FAQs
1. What is the main function of the IS200EPSMG1A?
It converts 125 V DC into multiple regulated voltage rails for excitation control system components.
2. Where is it installed?
On the EPBP backplane within an EX2100 or Mark VI exciter cabinet.
3. What voltage rails does it provide?
Typically +5 V, ±15 V, +24 V, and isolated +70 V DC.
4. Is it compatible with earlier EPSM revisions?
It is generally not backward compatible without verifying system revision requirements.
5. What happens if this module fails?
Loss of regulated power can cause excitation control shutdown or system fault alarms.
6. Does it require forced cooling?
No, it is designed for cabinet convection cooling.
7. What input does it require?
125 V DC from the exciter’s power distribution module.
8. Can it support redundant systems?
In certain system configurations, redundant EPSM modules may be used.
9. Is it field replaceable?
Yes, it is designed for modular replacement in standard EX2100 racks.
10. Why is stable power so critical in excitation systems?
Because excitation control accuracy directly affects generator voltage stability and turbine safety.
