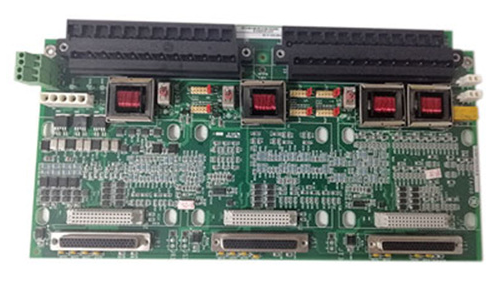

IS200TSVCH1A

The GE IS200TSVCH1A Turbine Servo Valve Control Handler (TSVC) Module is a dedicated discrete I/O and analog interface board engineered for GE Mark VI and EX2100 turbine control systems. This module specializes in processing and conditioning control signals for servo valve actuation, which is essential in regulating hydraulic servos, actuator positioning, and precision control loops within turbine subsystems.

By accurately translating command outputs from high-level logic to field-ready servo valve signals, the IS200TSVCH1A helps deliver stable and responsive control in demanding industrial power generation environments. Its robust construction and signal conditioning ensure consistent performance even under electrical noise, vibration, and temperature stress.

Technical Specifications

Parameter	Specification
Model	IS200TSVCH1A
Brand	GE
Module Type	Turbine Servo Valve Control Handler
System Compatibility	Mark VI & EX2100 Control Platforms
Primary Function	Condition control outputs for servo valve actuation
Signal Types	Analog command outputs and discrete enable/control signals
Signal Conditioning	Buffering, isolation, filtering, transient suppression
Protection Features	Noise rejection and transient handling
Mounting Method	Rack / backplane within control cabinet
Operating Environment	Industrial control / turbine cabinet conditions
Dimensions (L × W × H)	250 × 120 × 35 mm (approx.)
Weight	0.88 kg (approx.)

This module interfaces high-level command signals with servo and actuator hardware, ensuring accurate signal translation and reliable actuation in safety-critical systems.

Recommended Related Models

For a fully coordinated turbine control and hydraulic actuation system, the IS200TSVCH1A is often deployed with:

IS200DSPXH1D – Digital Signal Processor Control Board
IS200EDCFG1B – DC Feedback Conditioning Board
IS200EACFG3A – AC Feedback Conditioning Module
IS200EXHSG3A – High-Speed Gate Control Board
IS200TRPGH1B – Protection Relay Processing Gateway

These modules contribute to signal acquisition, protection logic, actuation control, and coordinated system response.
