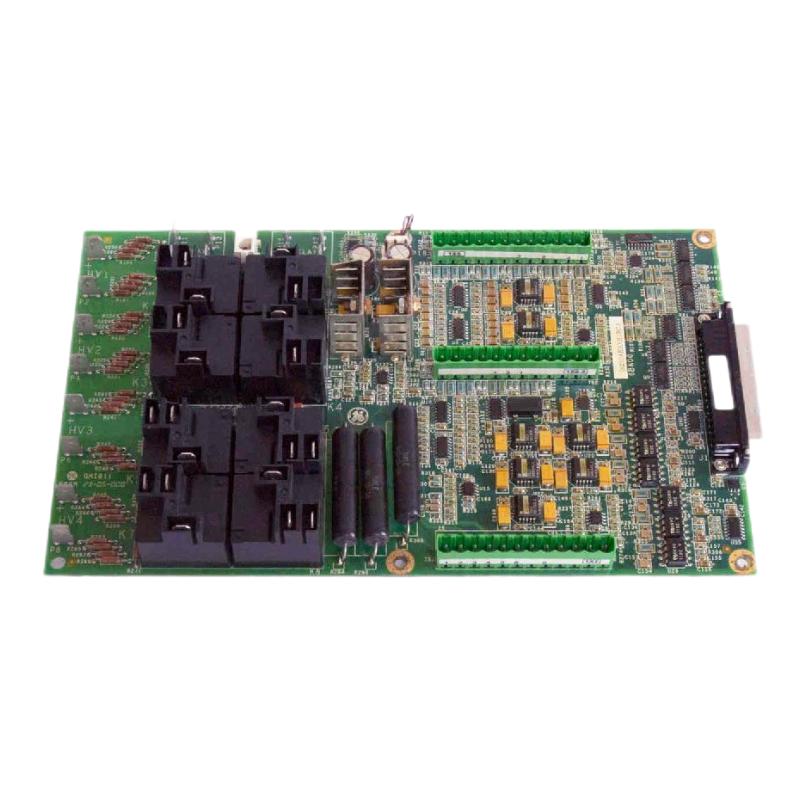

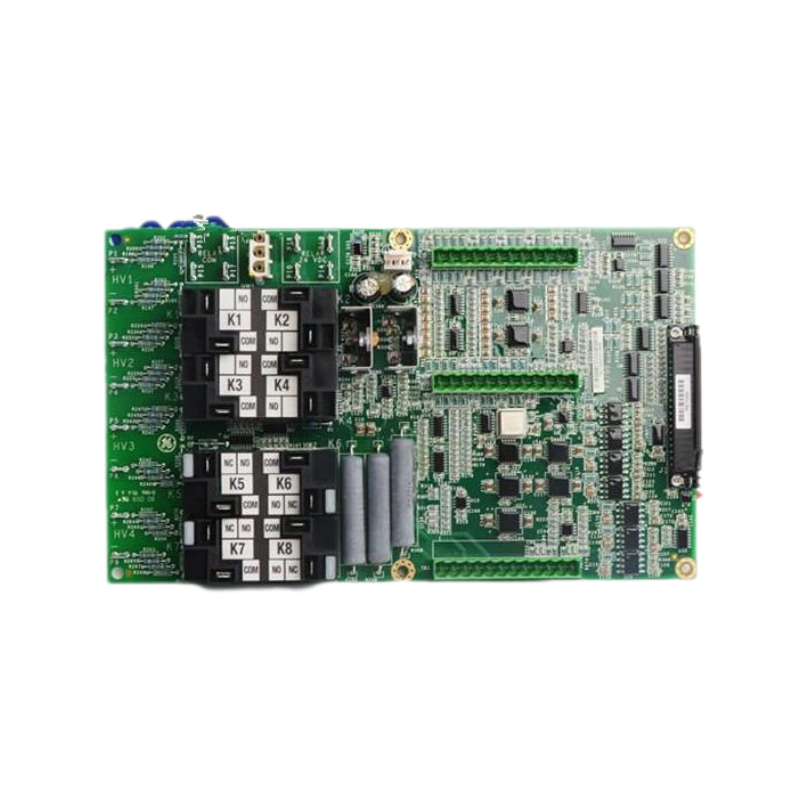

The GE IS210AEAAH1B is an advanced analog and event acquisition board module designed for use within the GE Mark VIe turbine control platform, where real-time analog measurement and event capture are essential for precise system monitoring and control. Engineered for industrial power generation environments, this module excels at high-resolution signal acquisition, time-synchronized event logging, and reliable data delivery to core control logic.
With refined analog front-end circuitry and optimized acquisition pathways, the IS210AEAAH1B delivers performance that supports turbine efficiency, operational safety, and condition-based diagnostics. Its robust construction ensures consistent function even in demanding thermal and electrical environments typical of large power plants.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IS210AEAAH1B |
| Module Type | Analog & Event Acquisition Board Module |
| Target Platform | GE Mark VIe Turbine Control System |
| Primary Function | High-resolution analog signal acquisition and event timestamping |
| Power Source | Backplane powered |
| Mounting | Rack-mounted PCB |
| Dimensions (L × W × H) | 210 mm × 160 mm × 30 mm |
| Weight | 0.72 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5–95% non-condensing |
| I/O Channels | Multiple precision analog inputs + logic event inputs |
| Interface | System backplane integration |
Recommended Related Models
For a fully capable turbine control solution, the following modules are commonly paired with the IS210AEAAH1B:
-
GE IS210CPUIH1A – Core Processing & I/O Control Board
-
GE IS210DTPIH1B – Digital Transducer & Protection Interface
-
GE IS210SCMMH1C – System Communication Management Module
-
GE IS200VVIBH1C – Vibration Monitoring & Protection Board
-
GE IS200VTURH1B – Turbine Protection & Logic Sequencing Module
These related boards help ensure a balanced architecture addressing data acquisition, protection, control logic, and communications within Mark VIe systems.
