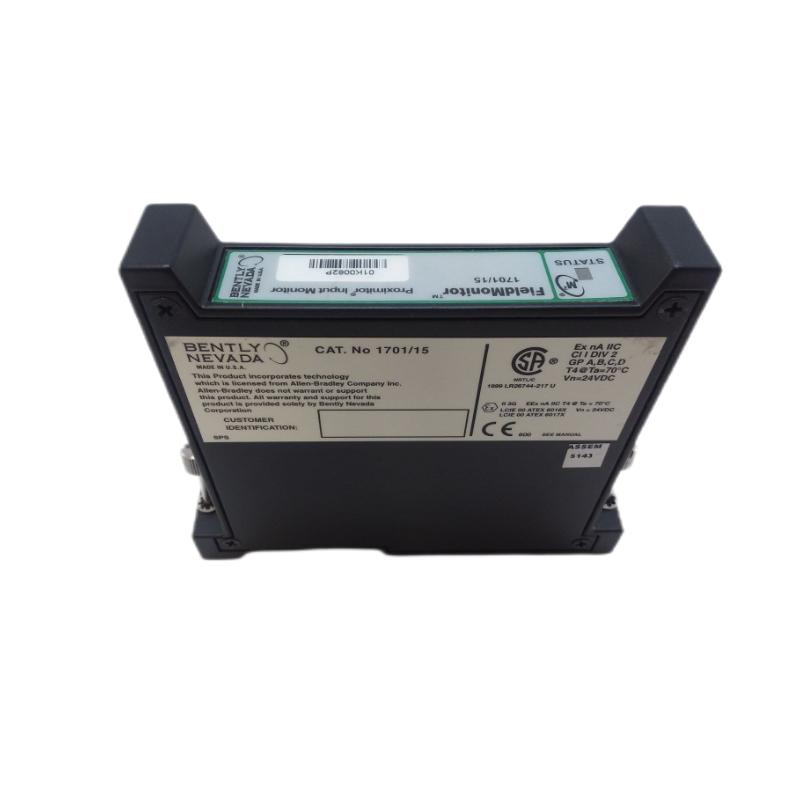

Bently 1701/15 Vibration Monitoring Module

Introduction

The Bently 1701/15 is a high-performance vibration monitoring module designed for critical rotating machinery protection and monitoring. Part of the Bently Nevada 1700 Series, this module provides precise data for detecting early mechanical issues such as imbalances, misalignments, and bearing failures. This early detection capability allows operators to intervene proactively, preventing unplanned downtime and reducing repair costs.

Used extensively across various industries, including oil & gas, power generation, mining, and manufacturing, the 1701/15 is instrumental in ensuring the longevity and reliability of vital machinery. Its ability to offer continuous, real-time vibration monitoring makes it an indispensable tool for implementing predictive maintenance strategies.

Technical Specifications

Specification	Details
Model	1701/15
Module Type	Vibration Monitoring Module
Input Voltage	24 VDC
Output	Analog & Digital Signals
Size (W x H x D)	180 x 120 x 90 mm
Weight	1.5 kg
Operating Temperature	-20°C to +60°C
Protection Features	Overvoltage, Reverse Polarity, Short-circuit
Certifications	CE, UL, RoHS

Applications

Rotating Equipment Monitoring: The 1701/15 is perfect for monitoring critical rotating machinery such as motors, compressors, pumps, and turbines, ensuring they stay within safe vibration limits.
Condition Monitoring: Continuous monitoring of machinery health by detecting early signs of imbalances, misalignments, and bearing wear. This allows operators to take timely corrective actions.
Predictive Maintenance: The 1701/15 plays a pivotal role in predictive maintenance programs by providing continuous vibration data that helps operators forecast when equipment needs servicing, reducing unexpected downtime.
Industrial Automation: The module integrates with industrial automation systems, offering real-time feedback that can trigger alarms or initiate shutdowns when vibration levels exceed predefined thresholds.
Power Generation: In power plants, the 1701/15 ensures the health of generators, turbines, and other critical equipment, preventing system failures and optimizing uptime.

Advantages

Real-Time Vibration Monitoring: The 1701/15 provides continuous, real-time vibration data, ensuring immediate detection of faults such as imbalances, misalignments, and bearing wear.
Early Detection of Issues: By identifying potential issues early, the module allows operators to take proactive steps, reducing downtime and avoiding expensive repairs.
Dual Output Compatibility: The module supports both analog and digital outputs, ensuring flexibility in integration with various monitoring and control systems.
Compact and Robust: With a size of 180 x 120 x 90 mm and a weight of 1.5 kg, the 1701/15 is compact yet durable, ideal for installation in confined spaces while withstanding harsh industrial environments.
Built-In Protection: The module is equipped with overvoltage, reverse polarity, and short-circuit protection, ensuring reliable and safe operation under fluctuating electrical conditions.
Wide Operating Temperature Range: Operating within a temperature range of -20°C to +60°C, the 1701/15 is suitable for use in various industrial settings, from freezing cold to hot environments.

Technical FAQs

What is the input voltage for the Bently 1701/15 module?
The input voltage is 24 VDC.
What are the dimensions of the Bently 1701/15 module?
The module measures 180 x 120 x 90 mm.
What protection features are included in the Bently 1701/15 module?
The module includes overvoltage, reverse polarity, and short-circuit protection.
What is the weight of the Bently 1701/15 module?
The weight is 1.5 kg.
What types of outputs are available for the Bently 1701/15 module?
The module offers both analog and digital outputs.
What is the operating temperature range of the Bently 1701/15 module?
The operating temperature range is -20°C to +60°C.
Can the Bently 1701/15 module be used for predictive maintenance?
Yes, the 1701/15 is ideal for predictive maintenance, offering real-time data to detect issues early and extend equipment life.
Which industries benefit from the Bently 1701/15 module?
Industries such as oil & gas, power generation, manufacturing, and mining benefit from this module for monitoring the health of their rotating equipment.
Is the Bently 1701/15 module certified for safety and compliance?
Yes, the 1701/15 is CE, UL, and RoHS certified.
What are the main advantages of using the Bently 1701/15 module?
The 1701/15 provides real-time vibration monitoring, early fault detection, dual output compatibility, compact design, and built-in protection, making it an essential tool for maintaining machinery health and minimizing downtime.
