ABB TA565-9 Spring-Terminal Block for AC500-eCo PLC I/O Systems
ABB TA565-9 Spring-Terminal Block for AC500-eCo PLC I/O Systems
0.0
Points
Brand:ABB PLC Item No.:ABB TA565-9 Product Origin:Sweden Product Dimensions:40 × 150 × 250 mm Product Weight:0.018 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

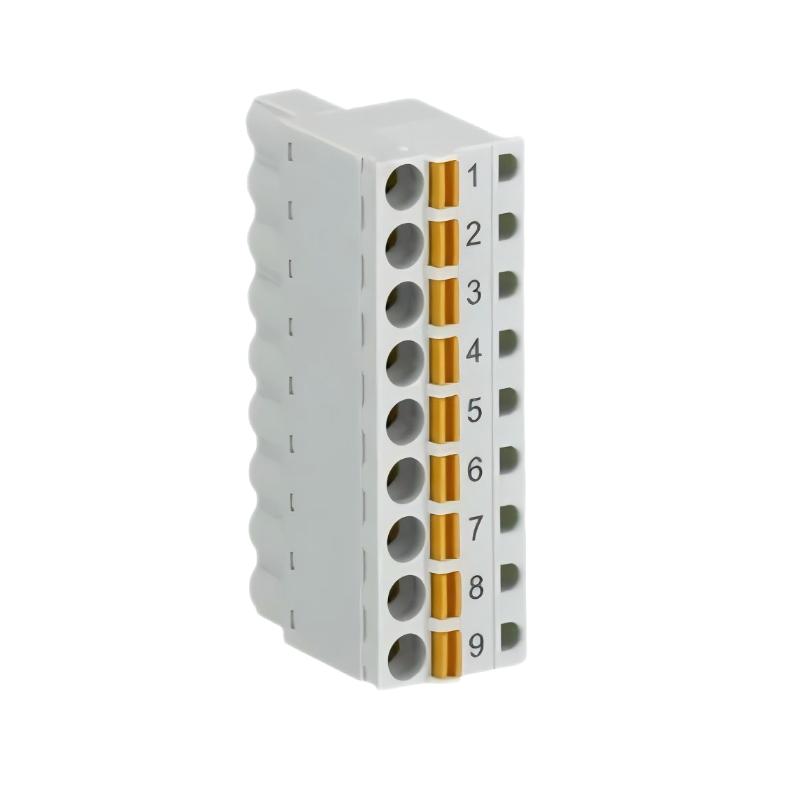

The ABB TA565-9 is a compact spring-terminal block designed for AC500-eCo PLC and S500-eCo distributed I/O modules, providing a reliable wiring interface between field devices and industrial control systems. It is engineered to simplify installation while maintaining stable electrical connectivity in demanding automation environments.
With a 9-pole configuration and spring-front wiring design, the TA565-9 enables quick cable insertion and secure connections without traditional screw terminals. This significantly reduces wiring time during panel assembly and maintenance.
As part of ABB’s modular PLC accessory ecosystem, the TA565-9 ensures seamless compatibility with AC500-eCo controllers and distributed I/O systems. Its compact structure and durable industrial design make it a preferred choice for machine builders, system integrators, and automation engineers seeking efficient and dependable wiring solutions.
Technical Specifications
Parameter
Specification
Model
TA565-9
Product ID
1TNE968901R3105
Manufacturer
ABB
Module Type
Terminal Block
Series
TA565 / S500-eCo
Number of Poles
9
Connection Type
Spring Front, Cable Front
Accessory Type
Electrical Plug
Protection Rating
IP20
Compatible Systems
ABB AC500-eCo PLC / S500-eCo I/O
Dimensions (L × W × H)
40 × 150 × 250 mm
Net Weight
0.018 kg
Gross Weight
0.019 kg
Package Quantity
6 pieces per package
The TA565-9 is specifically designed as a pluggable wiring interface that simplifies field wiring while ensuring secure signal transmission in PLC automation environments.
Recommended Related Models
Model
Description
TA563-9
9-pole screw-side terminal block
TA563-11
11-pole screw-side terminal block
TA564-9
9-pole screw-front terminal block
TA564-11
11-pole screw-front terminal block
TA565-11
11-pole spring-front terminal block
These terminal blocks belong to the same family and provide different wiring styles for various industrial installation preferences.
Popular ABB Models
Model
Module Type
PM590-ETH
PLC CPU Controller
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Power Supply Module
PP865A
Industrial Operator Panel
These ABB automation components are widely deployed in PLC control systems, industrial process control, and manufacturing automation.
Applications
The ABB TA565-9 Terminal Block is widely used in industrial automation and control environments, including:
PLC control cabinets
Factory automation systems
Industrial machinery control panels
Process control installations
Power and energy management systems
Water treatment automation systems
Distributed I/O wiring solutions
Its compact design and spring-terminal technology make it particularly suitable for high-density control panels and modern automation cabinets.
Advantages
Fast Spring-Clamp Wiring
Spring terminals allow tool-free installation, significantly reducing wiring time during system assembly.
Reliable Electrical Contact
Consistent spring pressure ensures stable electrical connections even in vibration-prone industrial environments.
Compact and Space-Efficient
Optimized design allows efficient use of space in PLC cabinets and automation panels.
Easy Maintenance and Replacement
Pluggable terminal block structure allows quick module replacement without rewiring the entire system.
Industrial-Grade Durability
Built to withstand long-term industrial operation and harsh electrical environments.
Seamless PLC Integration
Fully compatible with ABB AC500-eCo and S500-eCo distributed I/O systems, ensuring stable system integration.
Technical FAQs
1. What is the ABB TA565-9 used for?
It is a terminal block designed to connect field wiring to ABB AC500-eCo PLC and S500-eCo I/O modules.
2. How many terminals does the TA565-9 provide?
The module features a 9-pole terminal configuration.
3. What type of wiring connection does it use?
It uses spring-front terminals with front cable entry, enabling fast and secure wiring.
4. What are the dimensions of the TA565-9?
The dimensions are 40 × 150 × 250 mm.
5. What is the weight of the module?
The product net weight is 0.018 kg.
6. What PLC systems support this terminal block?
It is designed for ABB AC500-eCo PLC and S500-eCo distributed I/O modules.
7. What is the protection rating?
The terminal block has an IP20 protection level, suitable for installation inside control cabinets.
8. What is the minimum order quantity?
The standard package quantity is 6 pieces per package.
9. What are the advantages of spring terminals?
They allow faster installation and provide stable electrical contact without screw tightening.
10. Is the TA565-9 suitable for industrial environments?
Yes. It is designed for industrial automation systems and control cabinets where reliable wiring is essential.
