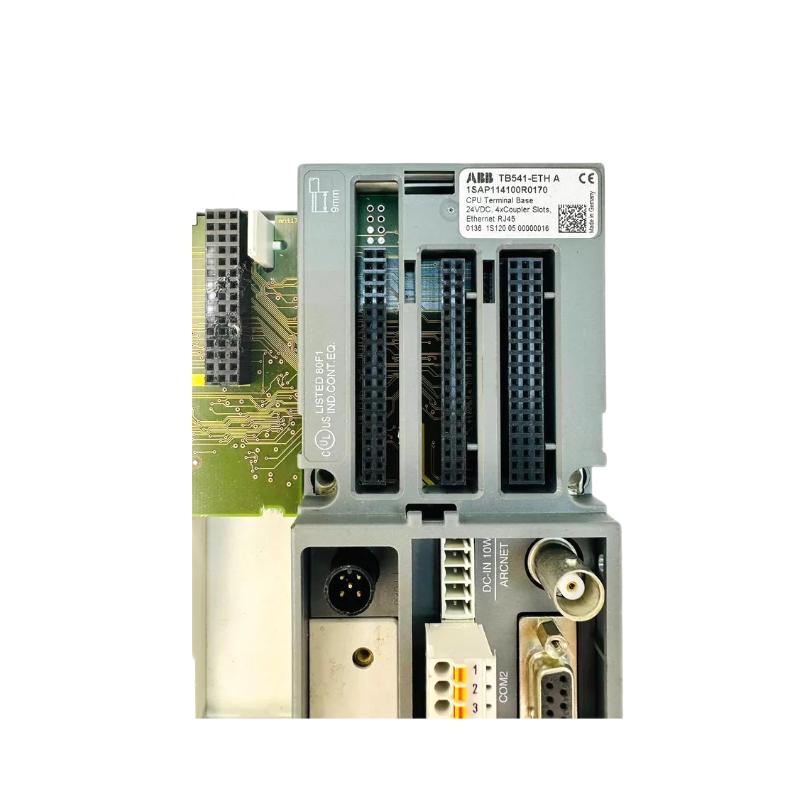

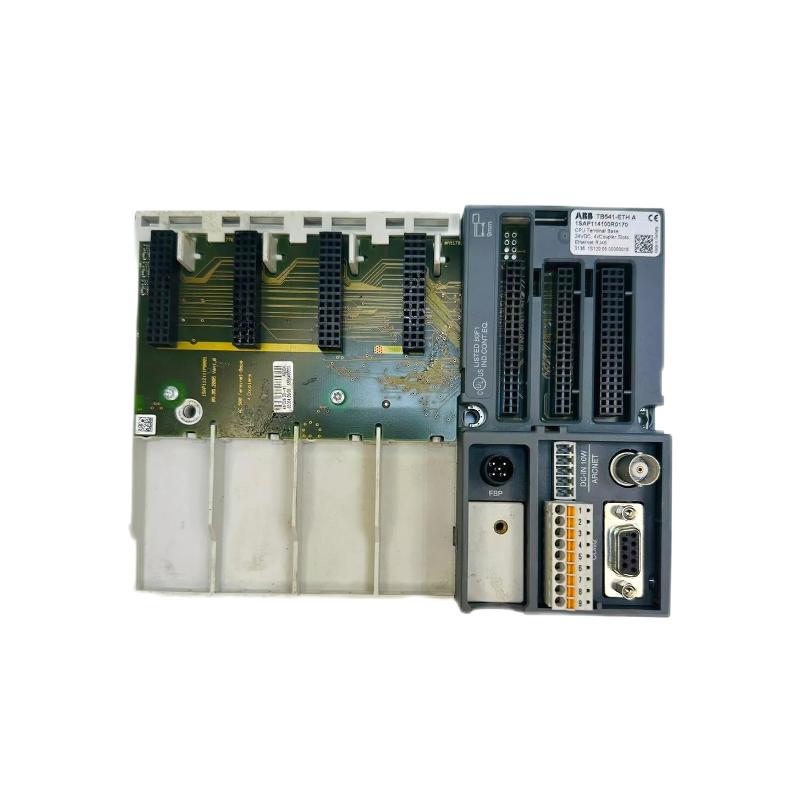

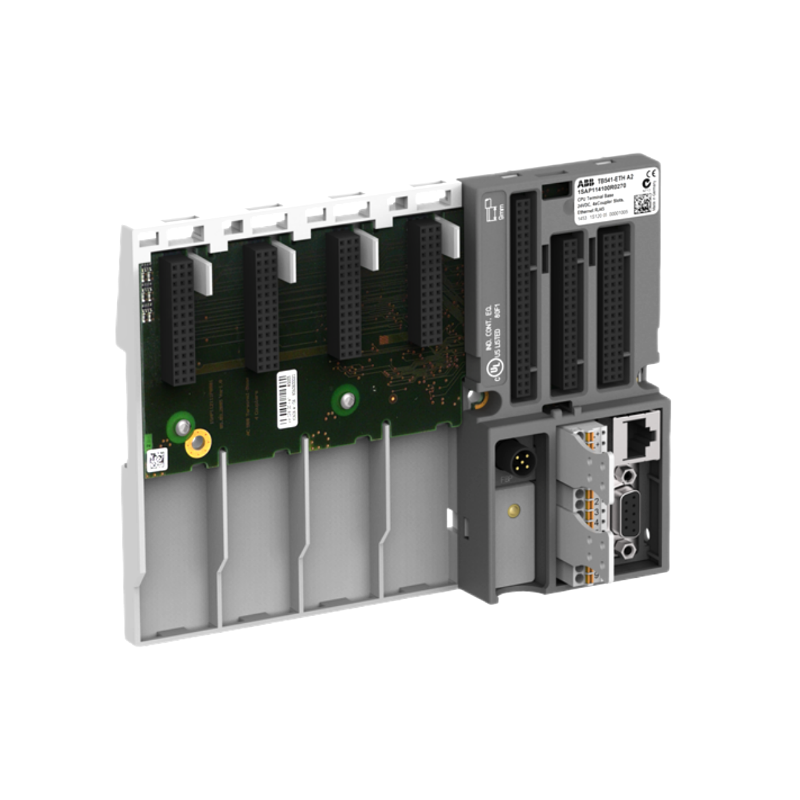

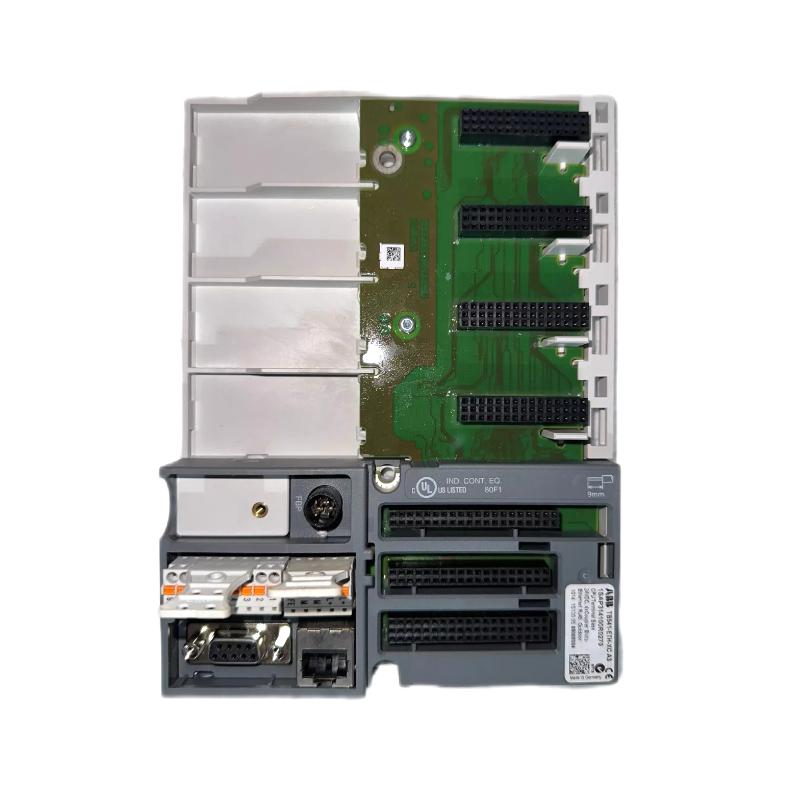

The ABB TB541-ETH is a high-capacity terminal base engineered for the AC500 V2 PLC platform, designed to provide a stable mechanical and electrical interface for processors and communication modules. It plays a central role in PLC architectures by connecting communication modules, Ethernet networks, and field wiring within industrial automation systems.

What distinguishes the TB541-ETH from smaller terminal bases in the same family is its support for up to four communication modules, allowing engineers to expand network connectivity and integrate multiple industrial protocols in a single PLC system. This makes it especially suitable for complex automation environments requiring advanced communication capabilities.

Equipped with an integrated Ethernet interface and two serial communication ports (RS232 / RS485), the terminal base enables seamless communication between PLC controllers, SCADA systems, and field devices. Its robust DIN-rail design ensures reliable operation in industrial control cabinets while maintaining efficient space utilization.

Technical Specifications

Parameter	Specification
Model	TB541-ETH
Product ID	1SAP114100R0270
Manufacturer	ABB
Module Type	Terminal Base
PLC Platform	AC500 V2 PLC System
Communication Module Slots	4 slots
Ethernet Interface	1 × RJ45 Ethernet
Serial Interfaces	2 × RS232 / RS485
Communication Connectors	D-SUB / RJ45 / Terminal connections
Supply Voltage	24 V DC
Protection Rating	IP20
Mounting	DIN-rail installation
Operating Temperature	0 °C to +60 °C
Storage Temperature	−40 °C to +70 °C
Dimensions (L × W × H)	28 × 179.5 × 135 mm
Net Weight	0.24 kg

The TB541-ETH is designed for AC500 V2 automation systems, offering four communication module slots along with Ethernet and serial interfaces for flexible network integration.

Recommended Related Models

Model	Description
TB511-ETH	Terminal base with one communication module slot
TB521-ETH	Terminal base with two communication module slots
TB523-2ETH	Terminal base with dual Ethernet interface
CM579-ETH	Ethernet communication module
PM591-2ETH	High-performance AC500 PLC processor

These models are commonly used together to build scalable and modular PLC communication systems.

Popular ABB Models

Model	Module Type
PM590-ETH	PLC CPU Module
CI840A	Communication Interface Module
AI830A	Analog Input Module
SB822	Redundant Power Supply Module
PP865A	Industrial Operator Panel

These ABB industrial automation components are widely applied in PLC, DCS, and process automation infrastructures.

Applications

The ABB TB541-ETH Terminal Base is commonly deployed in automation systems that require flexible communication and scalable PLC architecture:

Industrial manufacturing systems
Distributed automation networks
Process control plants
Machine and robotics control systems
Energy and power distribution facilities
Water and wastewater treatment systems
SCADA and industrial Ethernet networks

Its multi-slot architecture makes it particularly valuable for complex automation systems with multiple communication protocols.

Advantages

High Communication Expansion Capability
Supports up to four communication modules, enabling advanced networking options in PLC systems.

Integrated Ethernet Connectivity
Built-in Ethernet interface simplifies connection to industrial networks and SCADA systems.

Flexible Serial Communication
Two RS232/RS485 interfaces allow integration with legacy devices and industrial communication equipment.

Compact and Efficient Installation
DIN-rail design allows easy integration into modern automation control cabinets.

Industrial Reliability
Engineered to maintain stable performance in demanding industrial environments.

Scalable Automation Architecture
Provides a flexible platform for expanding PLC communication networks as system requirements grow.

Technical FAQs

1. What is the ABB TB541-ETH used for?
It is a terminal base used to mount and connect communication modules in ABB AC500 V2 PLC systems.

2. How many communication modules can it support?
The TB541-ETH supports up to four communication modules.

3. What communication interfaces are available?
It includes Ethernet (RJ45) and two serial interfaces (RS232 / RS485).

4. Which PLC system is compatible with the TB541-ETH?
It is designed for the ABB AC500 V2 PLC platform.

5. What supply voltage does the module require?
The terminal base operates on 24 V DC power.

6. What are the dimensions of the TB541-ETH?
The dimensions are 28 × 179.5 × 135 mm.

7. What is the weight of the device?
The net weight of the TB541-ETH is approximately 0.24 kg.

8. What protection rating does it provide?
The module has an IP20 protection level, suitable for installation in control cabinets.

9. What temperature range can it operate in?
The device operates between 0 °C and +60 °C.

10. Which industrial protocols can it support?
Through compatible communication modules, it can support protocols such as Modbus TCP, EtherNet/IP, and PROFIBUS.
