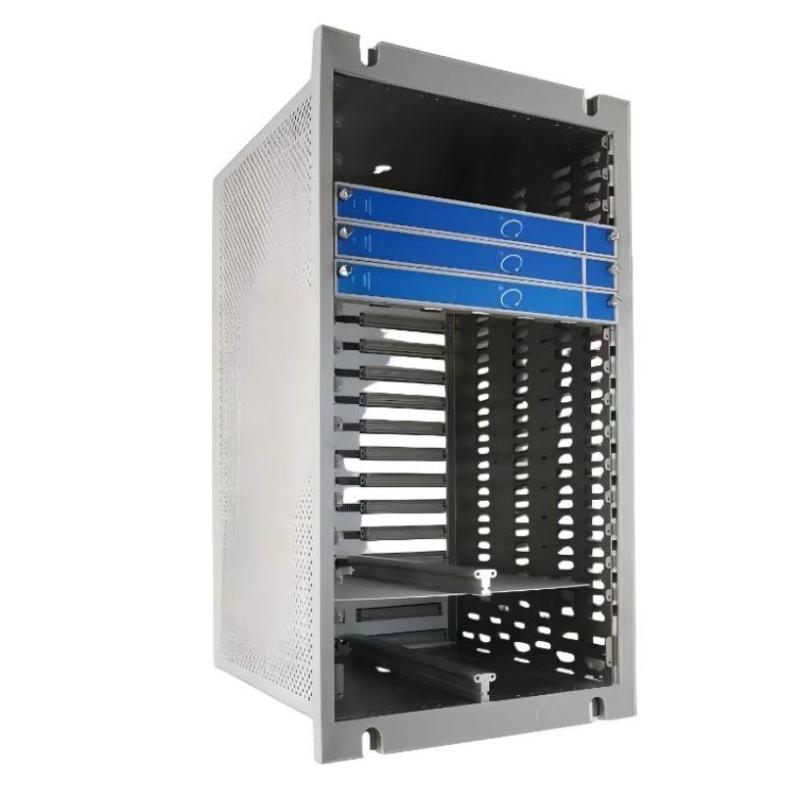

The Bently Nevada 3500/05-02-05-02-00-01 System Rack offers a compact yet highly dependable platform for building precision machinery protection systems. With its 12-inch width and optimized 7-slot structure, it addresses the needs of applications where panel space is limited but reliability cannot be compromised. Built from industrial-grade materials and designed for consistent module performance, the rack forms a stable backbone for monitoring assets in distributed or compact environments.

Technical Specifications

Item	Description
Model	3500/05-02-05-02-00-01
Rack Size	12-inch (7 module slots)
Material	Industrial aluminum chassis
Mounting Method	Panel or enclosure mounting
Dimensions	12-inch rack format as provided
Weight	4.5 kg
Cooling Method	Natural convection
Power Options	Supports AC and DC 3500 power supplies
System Compatibility	Fully compatible with 3500 series monitoring modules
Typical Use	Compact monitoring frames, OEM assemblies, retrofits

Recommended Related Models

Model	Description
3500/15	Power Supply Module
3500/20	Rack Interface Module
3500/22M	Enhanced Transient Data Interface
3500/25	Keyphasor Module
3500/32M	Relay Output Module

Popular Related Models

Model	Description
3500/42M	Proximitor/Seismic Monitor
3500/45	Position Monitor
3500/46M	Hydro Monitor
3500/50	Tachometer Module
3500/60	Temperature Monitor

Applications

The Bently Nevada 3500/05-02-05-02-00-01 System Rack is designed for compact installations where high-quality monitoring is required but panel space is limited. It is widely used in smaller turbine packages, skid-mounted compressor units, pump trains, and localized monitoring stations. Its 12-inch form factor makes it ideal for OEM equipment frames, modular process packages, and retrofit environments where maintaining system performance within a restricted footprint is essential.

Advantages

This compact rack delivers the same reliability and mechanical stability as full-size 3500 racks, but in a space-efficient configuration. With 7 available module slots, it offers enough capacity for key protection functions without overbuilding the system. Its robust aluminum structure minimizes noise interference and ensures long-term alignment of modules. Designed for tight cabinets and decentralized monitoring nodes, it helps operators achieve high-level protection performance with minimal installation overhead.

Technical FAQs

What makes this rack different from the full 19-inch version?
Its 12-inch width and 7-slot capacity are tailored for smaller control panels or OEM equipment.
Does this rack still support standard 3500 modules?
Yes, it supports the full range of compatible monitoring, relay, and interface modules.
Can it be used in harsh industrial environments?
Absolutely—its structure is engineered for vibration-resistant operation.
Is redundant power available?
It can support redundant power by installing two compatible 3500 power modules.
Does it require special cooling?
No. It relies on natural convection but benefits from adequate cabinet ventilation.
Can it integrate with plant networks?
Yes, when fitted with appropriate communication modules such as the 3500/22M.
Is the rack suitable for distributed monitoring setups?
Yes—its compact size is ideal for decentralized protection nodes near the machinery.
Can modules be rearranged after system commissioning?
Yes, the slot layout is flexible and reconfigurable.
Does the rack handle data processing?
No. It provides electrical routing and mounting; processing occurs within the installed modules.
Is it easy to install in OEM enclosures?
The smaller footprint and simplified mounting pattern make it an excellent fit for OEM frames.
