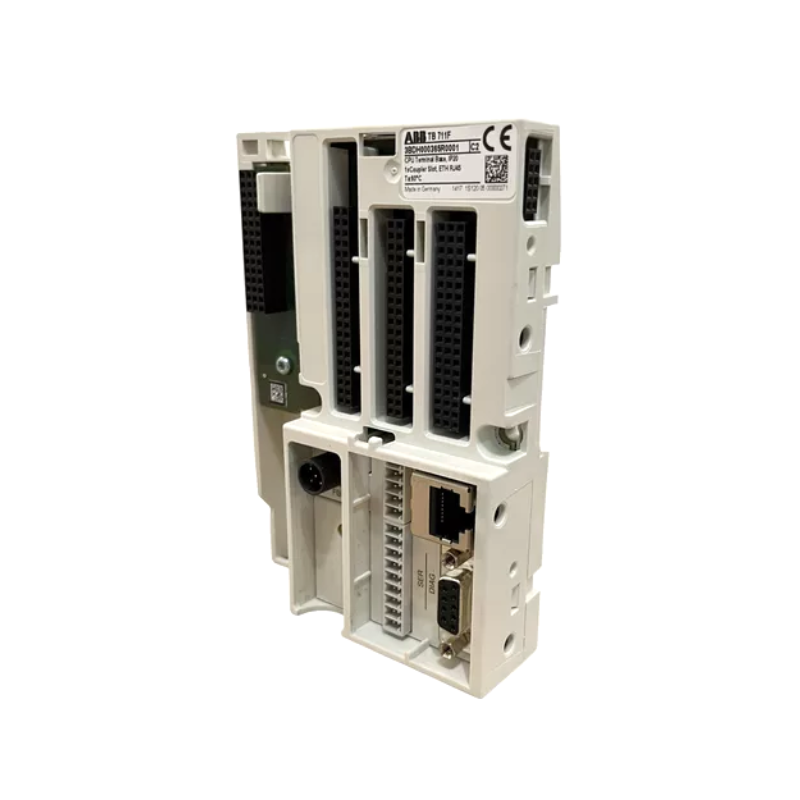

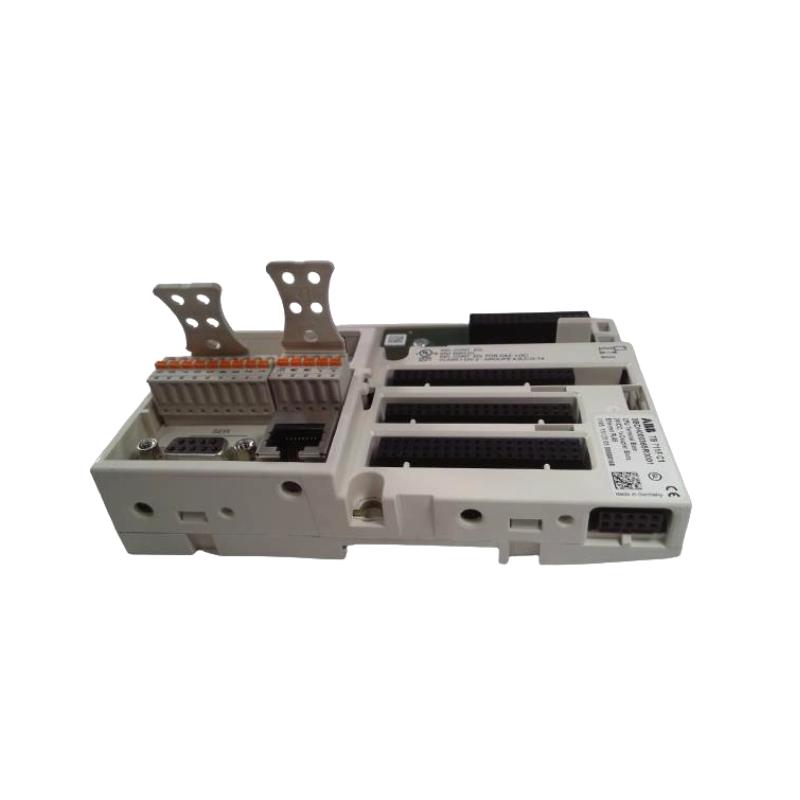

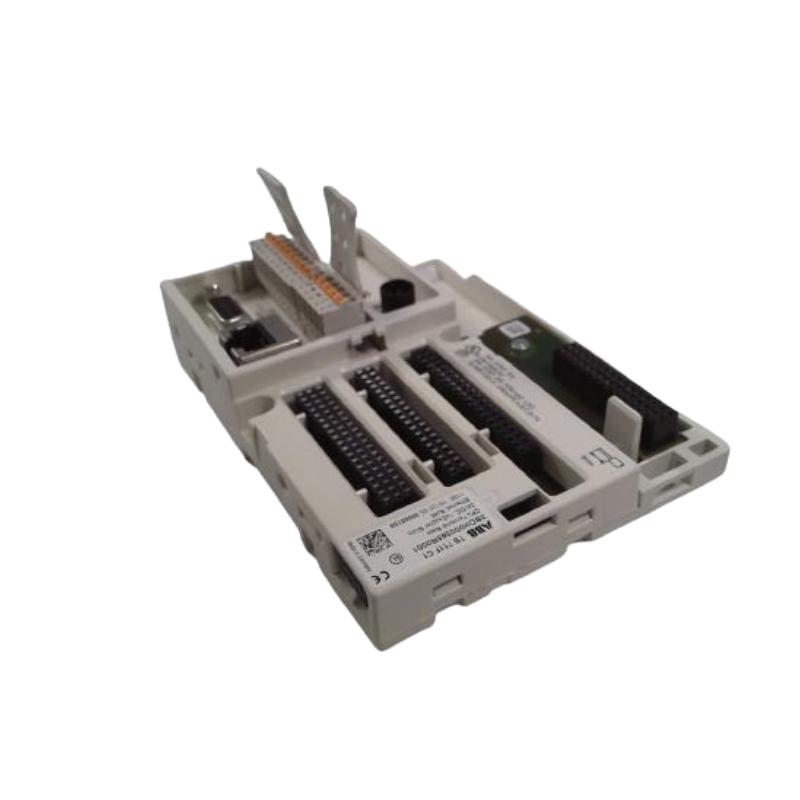

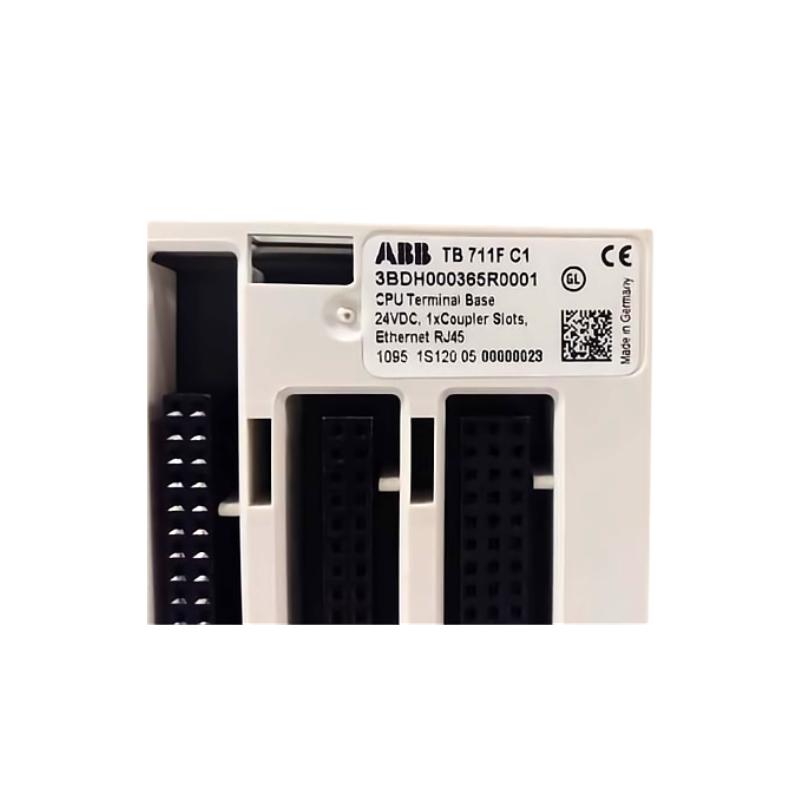

The ABB TB711F is a robust CPU terminal base module designed to support ABB industrial control architectures such as Advant AC800F Freelance and System 800xA. It serves as the physical and electrical interface between the CPU module and the system wiring, providing stable connections for power distribution, communication interfaces, and signal routing.

Engineered for reliability in demanding industrial environments, the TB711F enables quick CPU installation and replacement while maintaining secure field wiring. Its modular design simplifies system expansion and maintenance, making it a practical solution for building scalable distributed control systems.

With its compact footprint and industrial-grade durability, the TB711F is widely used in automation cabinets where dependable control infrastructure and efficient wiring organization are essential.

Technical Specifications

Parameter	Details
Model	TB711F
Product Type	CPU Terminal Base Module
Compatible Systems	ABB Freelance / System 800xA / AC800F Controllers
Power Supply	24 VDC
Communication Interface	1 × Ethernet RJ45
Fieldbus / Coupler Slot	1 Slot
Serial Interfaces	COM1 / COM2
Protection Class	IP20
Mounting Method	DIN Rail Mounting
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Material	Industrial-grade metal and engineering plastic
Dimensions	95.5 × 135 × 30 mm
Weight	0.175 kg

Dimensions and weight values may vary slightly depending on configuration and production batch.

Recommended Related Models

For building a complete ABB Freelance or System 800xA control architecture, the following modules are often used together with the TB711F:

ABB PM783F Processor Module
ABB CM672 Communication Module
ABB TU715F Terminal Unit
ABB TU706F Terminal Unit
ABB AI723F Analog Input Module

These components allow flexible expansion of control, communication, and I/O capabilities within industrial automation systems.

Popular ABB Automation Modules

Several ABB control modules are widely adopted across PLC and DCS environments:

ABB PM591-ETH PLC Controller
ABB CI840A Communication Interface
ABB SB822 Power Supply Module
ABB AI830A Analog Input Module
ABB PP865A Process Panel HMI

These products form reliable automation infrastructures for complex industrial operations.

Typical Industrial Applications

The ABB TB711F terminal base is used across a variety of industrial automation sectors:

Process automation and distributed control systems
Power generation and electrical grid management
Oil and gas production systems
Chemical and petrochemical plants
Water and wastewater treatment facilities
Manufacturing and industrial machinery control

Its reliable connection architecture ensures stable communication between the CPU, I/O modules, and network interfaces.

Key Advantages

Stable CPU Integration
Provides a secure mounting and electrical interface for controller modules in ABB automation systems.

Simplified Wiring Architecture
Designed to organize field wiring efficiently, improving installation speed and maintenance convenience.

Modular Expansion Capability
Supports fieldbus couplers and additional communication modules for scalable automation architectures.

Industrial-Grade Reliability
Constructed with durable materials and designed to operate reliably in harsh industrial environments.

Optimized for ABB Control Platforms
Fully compatible with Freelance and System 800xA control systems, ensuring smooth system integration.

Technical FAQs

1. What is the function of the ABB TB711F module?
It acts as a CPU terminal base, providing mechanical mounting and electrical connections for controller modules.

2. Which control systems support the TB711F?
It is commonly used with ABB Freelance, AC800F, and System 800xA automation platforms.

3. What power supply does the TB711F require?
The module typically operates with a 24 VDC power input.

4. Does the module support Ethernet connectivity?
Yes, the TB711F includes an Ethernet RJ45 interface for network communication.

5. How many communication slots are available?
The module provides one coupler slot for fieldbus or communication expansion.

6. What is the protection rating of this module?
It has an IP20 protection class, suitable for installation inside control cabinets.

7. What are the installation requirements?
The module is designed for standard DIN-rail mounting in industrial control panels.

8. What are the dimensions of the TB711F module?
The approximate size is 95.5 × 135 × 30 mm.

9. How much does the module weigh?
The net weight is about 0.175 kg, making it compact and easy to integrate.

10. What industries typically use the TB711F?
It is widely used in process control, energy systems, manufacturing automation, and infrastructure control systems.
