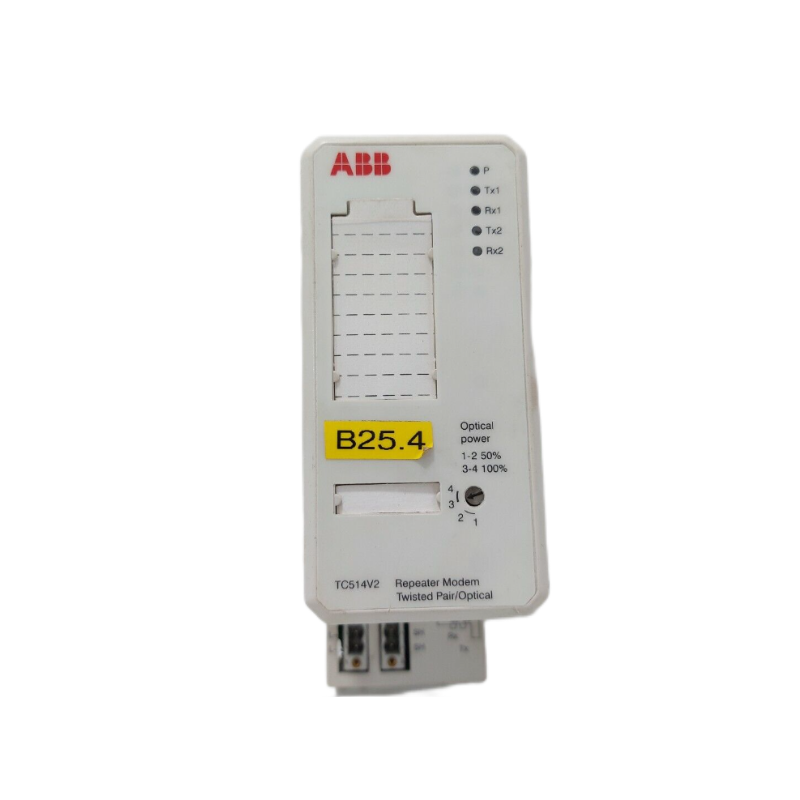

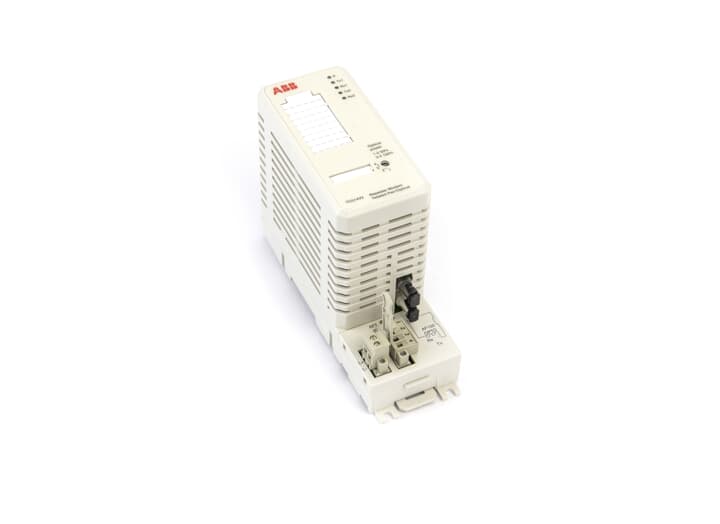

ABB TC514V2 AF100 Twisted Pair to Optical Communication Repeater Module
ABB TC514V2 AF100 Twisted Pair to Optical Communication Repeater Module
0.0
Points
Brand:ABB PLC Item No.:ABB TC514V2 Product Origin:Sweden Product Dimensions:168 × 122 × 58 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB TC514V2 is a high-performance communication module designed for Advant Fieldbus 100 (AF100) networks used in ABB distributed control systems. This module functions as a twisted-pair to optical repeater, converting copper communication signals into optical signals to enable reliable long-distance data transmission in industrial automation environments.
Engineered for use in ABB Advant OCS, Advant Controller, and System 800xA environments, the TC514V2 improves communication reliability by isolating electrical networks and extending communication distances through fiber-optic technology.
By combining electrical and optical communication channels, this module helps reduce electromagnetic interference and improves signal stability in demanding industrial environments such as power plants, process industries, and manufacturing facilities.
Technical Specifications
Parameter
Specification
Model
TC514V2
Product ID
3BSE013281R1
Product Type
Communication Module / Twisted Pair to Optical Repeater
Communication Bus
Advant Fieldbus 100 (AF100)
Communication Conversion
Twisted Pair ↔ Optical Fiber
Power Supply
24 V DC
Rated Isolation
50 V
Data Transmission Rate
Up to 100 Mbps
Protection Class
IP20
Mounting Method
DIN Rail / Control Cabinet Installation
Operating Temperature
-20°C to +60°C
Optical Fiber Support
Single-mode and Multi-mode
Product Dimensions
168 × 122 × 58 mm
Weight
0.34 kg
The module enables communication extension and signal regeneration, ensuring stable data transmission over longer industrial network distances.
Recommended Related Models
The TC514V2 is frequently used together with other ABB communication and fieldbus components:
ABB TC512V1 RS485 Twisted Pair Modem
ABB TC501V150 Fieldbus Termination Unit
ABB CI520 Communication Interface Module
ABB CI522 Fieldbus Communication Module
ABB CI526 Communication Interface Module
These modules form a complete communication architecture for AF100 fieldbus networks.
Popular ABB Automation Models
Many ABB automation systems integrate the following widely used modules:
ABB PM591-ETH PLC Processor Module
ABB CI840A Communication Interface Module
ABB AI830A Analog Input Module
ABB SB822 Power Supply Module
ABB PP865A Industrial HMI Panel
These devices are commonly deployed in distributed control systems across process industries.
Typical Industrial Applications
The TC514V2 communication repeater is widely used in complex industrial automation infrastructures:
Distributed Control Systems (DCS)
Power generation and electrical substations
Oil and gas process facilities
Chemical and petrochemical plants
Industrial manufacturing automation
SCADA and plant monitoring systems
The optical communication capability ensures reliable operation even in environments with heavy electrical noise.
Advantages
Extended Communication Distance
Converts twisted-pair signals into optical fiber transmission, significantly extending network reach.
Improved Signal Stability
Fiber-optic communication reduces interference from electromagnetic noise common in industrial plants.
High-Reliability Industrial Design
Built with robust industrial components and compliant with IEC automation standards.
Flexible Network Integration
Compatible with ABB Advant controllers, AF100 fieldbus networks, and System 800xA infrastructures.
Easy Installation and Maintenance
Compact DIN-rail installation and clear diagnostic indicators simplify setup and maintenance.
Technical FAQs
1. What is the main function of the ABB TC514V2 module?
It converts twisted-pair communication signals into optical signals to extend AF100 fieldbus communication networks.
2. Which ABB systems commonly use the TC514V2?
It is typically used in Advant OCS, Advant Controller systems, and System 800xA architectures.
3. What communication network does this module support?
The module supports the Advant Fieldbus 100 (AF100) industrial communication network.
4. What power supply is required for the TC514V2?
The module operates using 24 V DC power input.
5. Does the module support fiber-optic communication?
Yes. It converts copper communication signals into fiber-optic signals for long-distance transmission.
6. What is the maximum data transmission rate?
The module supports communication speeds up to 100 Mbps depending on network configuration.
7. What protection class does the device have?
The TC514V2 has an IP20 protection rating, suitable for installation inside control cabinets.
8. What are the physical dimensions of the module?
The unit measures 168 × 122 × 58 mm.
9. What is the weight of the TC514V2 module?
The net weight is approximately 0.34 kg.
10. What industries typically use this module?
Industries such as power generation, oil & gas, chemical processing, and manufacturing automation commonly use this communication repeater module.
