The ABB TK527V030 is a prefabricated interface cable used in ABB distributed control systems to connect a personal computer or engineering workstation to communication interface modules. It is primarily used within ABB Advant OCS and System 800xA architectures, especially for engineering tasks such as configuration, diagnostics, and software downloads.
With a 3-meter cable length and DE9 connector configuration, the TK527V030 provides a stable serial interface between a PC and modules such as CI810, CI820, and CI830, enabling engineers to perform commissioning and maintenance tasks efficiently.
The cable is widely used in S800 I/O installations, where reliable engineering access is essential for system configuration and controller programming. Its industrial-grade design ensures stable signal transmission and long service life in demanding automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TK527V030 |
| Part Number | 3BSC950004R1 |
| Product Type | Interface Cable |
| System Compatibility | ABB Advant OCS / System 800xA / S800 I/O |
| Cable Length | 3 m |

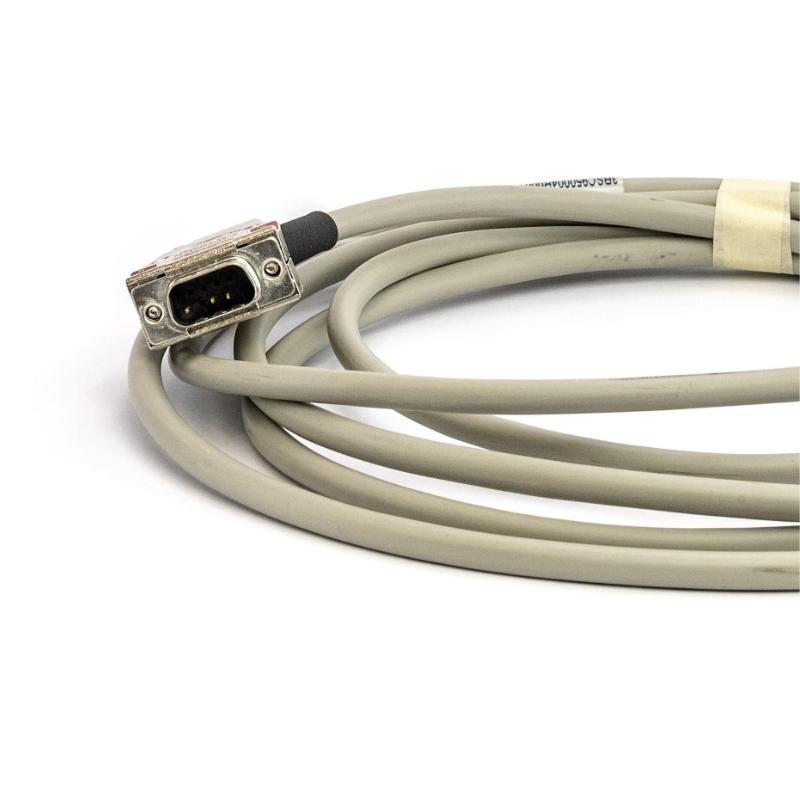

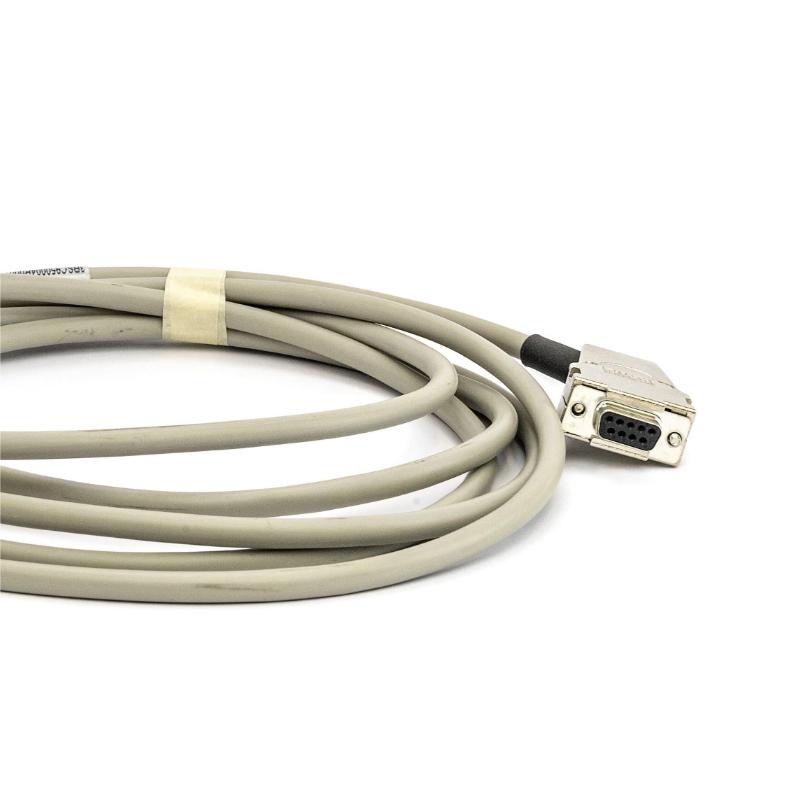

| Connector Type | DE9 Pin to DE9 Socket |
| Communication Type | Serial Interface |
| Application | PC connection to communication interface modules |
| Supported Modules | CI810, CI820, CI830 |
| Installation | Engineering workstation to control cabinet interface |
| Conductor Type | Shielded industrial cable |
| Dimensions | 178 × 76 × 178 mm |
| Weight | 0.40 kg |
The cable is designed for engineering access to ABB communication modules, enabling configuration and software downloading tasks.
Recommended Related Models
The TK527V030 cable is frequently used together with ABB communication interface modules and service cables:
-
ABB CI801 Communication Interface Module
-
ABB CI810 Fieldbus Interface Module
-
ABB CI820 Communication Interface Module
-
ABB CI830 Communication Interface Module
-
ABB TK212A Tool Cable
These modules and cables help establish engineering communication links for ABB automation systems.
