Introduction

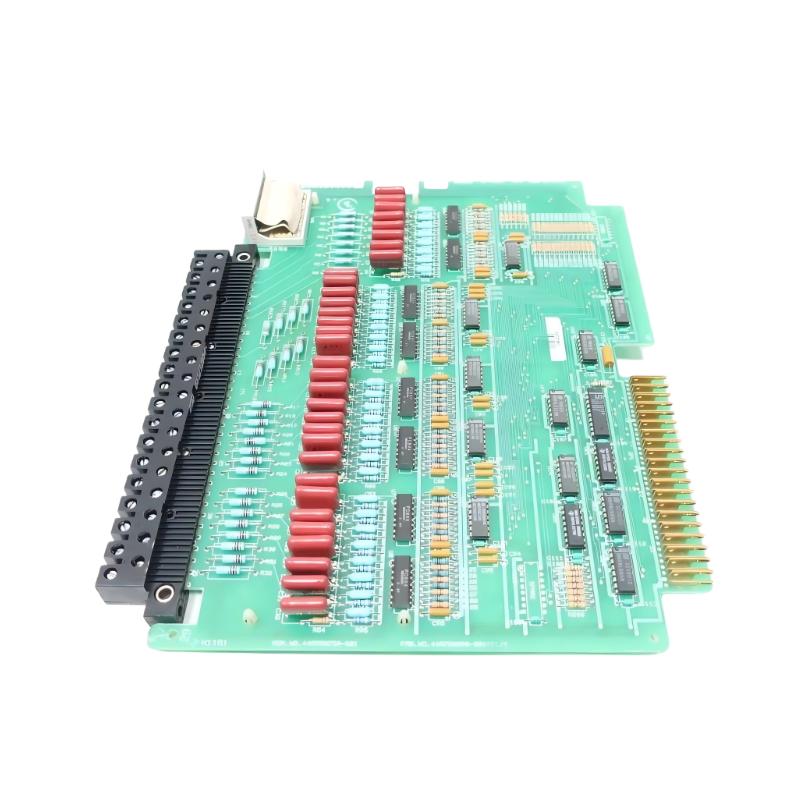

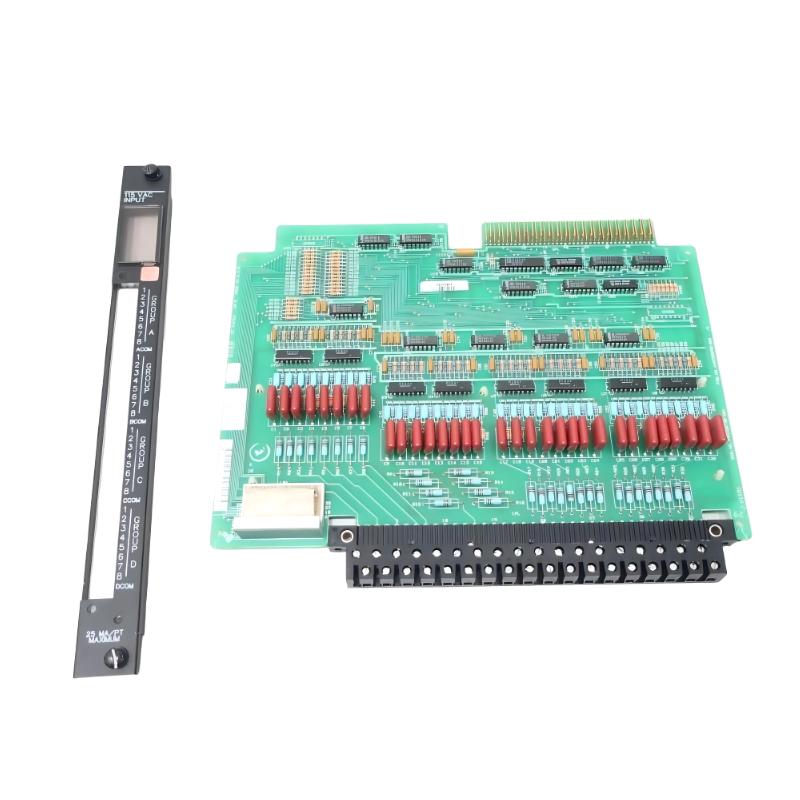

The GE IC600BF832 Input Module is a high-performance digital input module engineered for GE Series Six control systems. It provides fast, reliable, and accurate acquisition of field signals, ensuring uninterrupted process monitoring and control. Compact yet robust, the IC600BF832 excels in industrial environments that demand durability, electrical noise immunity, and stable long-term operation. Its easy installation and dependable performance make it an essential component for both new automation projects and system upgrades.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Digital Input Module |
| Compatible Series | GE Series Six |
| Input Channels | 32 discrete inputs |
| Input Voltage Range | 24 VDC nominal |
| Input Type | Sourcing / Sink configurable |
| Diagnostics | LED indicators for status and faults |
| Isolation | Optical isolation per channel |
| Mounting | DIN rail / panel mounting on Series Six rack |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 120 × 100 × 85 mm |
| Weight | 0.363 kg |
| Power Requirement | Supplied via backplane (24 VDC typical) |
Recommended Related Models
| Model | Description |
|---|---|
| IC600BF834 | Digital input module with higher current rating |
| IC600BF832-2 | Redundant input module variant |
| IC600BF832-4 | Extended diagnostic module for advanced systems |
| IC600BF833 | Combined input/output module |
| IC600CHS810 | Standard Series Six carrier base |
| IC600PWR800 | Power supply module for Series Six racks |
| IC600CPU830 | CPU module compatible with IC600BF832 |
| IC600TBM002 | Auxiliary terminal block for clean wiring |
| IC600MDL841 | Digital output module |
| IC600ALG620 | Analog input module for mixed-signal systems |
Popular GE Series Six Models
| Model | Use Case |
|---|---|
| IC600CPU830 | Main CPU module for automation control |
| IC600PWR800 | Power supply for Series Six I/O racks |
| IC600BF833 | Mixed input/output module |
| IC600BF834 | High-current input module |
| IC600MDL841 | Digital output for actuators and relays |
| IC600ALG620 | Analog input for process measurement |
| IC600CHS810 | Carrier base for Series Six modules |
| IC600BRD825 | Bus interface module |
| IC600TBM002 | Terminal block for field wiring |
| IC600PCM802 | Programmable coprocessor module |
