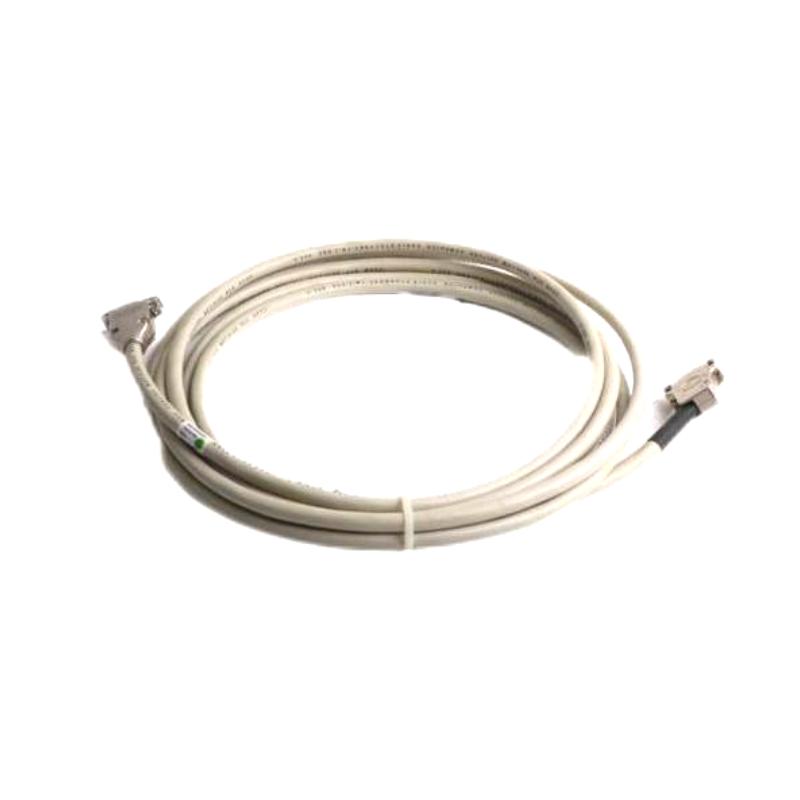

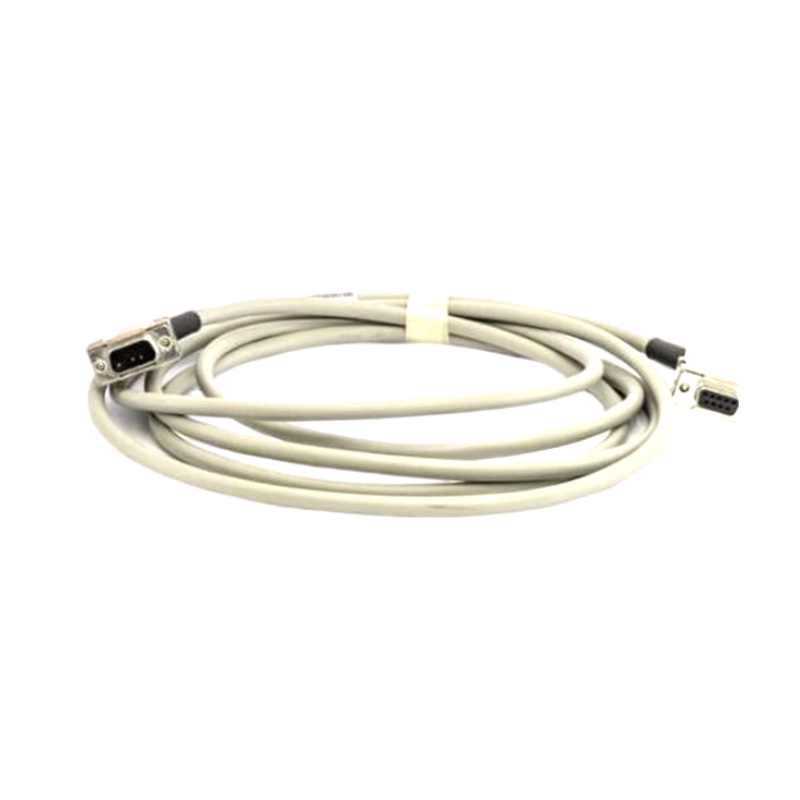

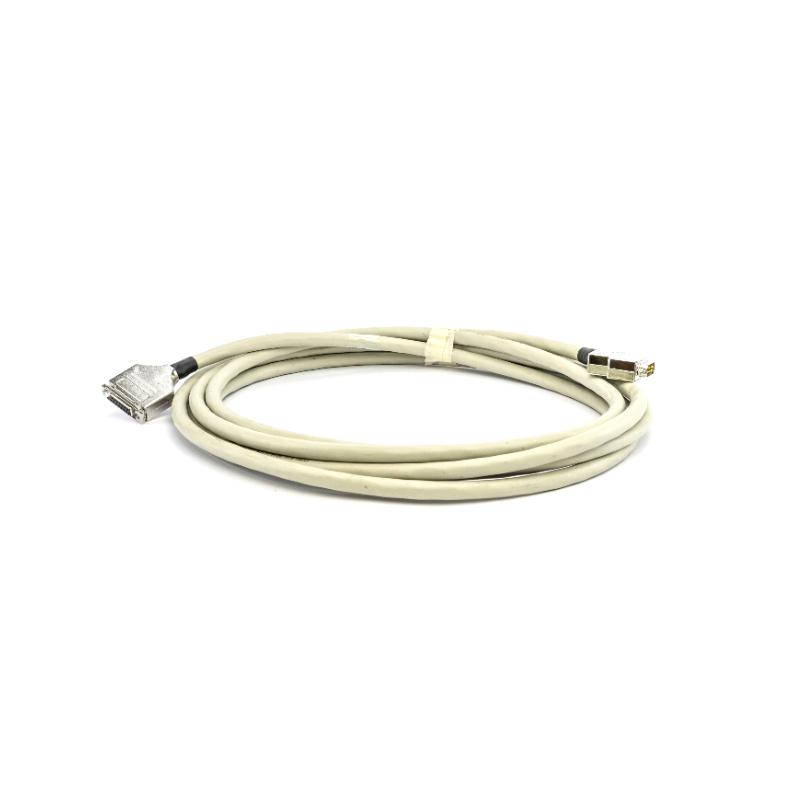

The ABB TK576V050 is a prefabricated AUI communication cable assembly designed for use in ABB Advant OCS distributed control systems. It is typically used to connect communication controllers to external Ethernet transceivers, enabling reliable network communication within industrial control infrastructures.
With a standard 5-meter cable length, the TK576V050 supports AUI-to-AUI connections, commonly used to link system units or communication interface modules to thick-Ethernet transceivers in legacy automation networks.
This cable is frequently used with Advant Controller 450 and similar systems, where it connects communication modules such as CS513 or CI543 to a network transceiver. Its industrial-grade construction ensures stable signal transmission and dependable connectivity in demanding process control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TK576V050 |
| Product ID | 3BSC950055R1 |
| Product Type | Communication Cable Assembly |
| System Compatibility | ABB Advant OCS / Advant Controller / 800xA for Advant |
| Communication Interface | AUI (Attachment Unit Interface) |
| Cable Type | AUI to AUI Cable |
| Cable Length | 5 m (16 ft) |
| Connector Type | D-Sub 15-pin (socket to pin) |
| Application | Controller or interface module to Ethernet transceiver |
| Installation | Industrial control cabinet / network interface |
| Conductor Type | Industrial shielded cable |
| Dimensions | 263 × 58 × 28 mm |
| Weight | 0.90 kg |
The cable is commonly used to connect communication controllers to Ethernet transceiver units for network access in industrial automation systems.
Recommended Related Models
The TK576V050 is typically deployed together with other communication and networking components in ABB Advant systems:
-
ABB CS513 MasterBus Controller
-
ABB CI543 GCOM Communication Interface
-
ABB MB300K01 Transceiver Set
-
ABB TK576V115 Communication Cable (15 m version)
-
ABB TK610V025 Bus Connection Cable
These modules and cables enable stable communication within distributed control system architectures.
