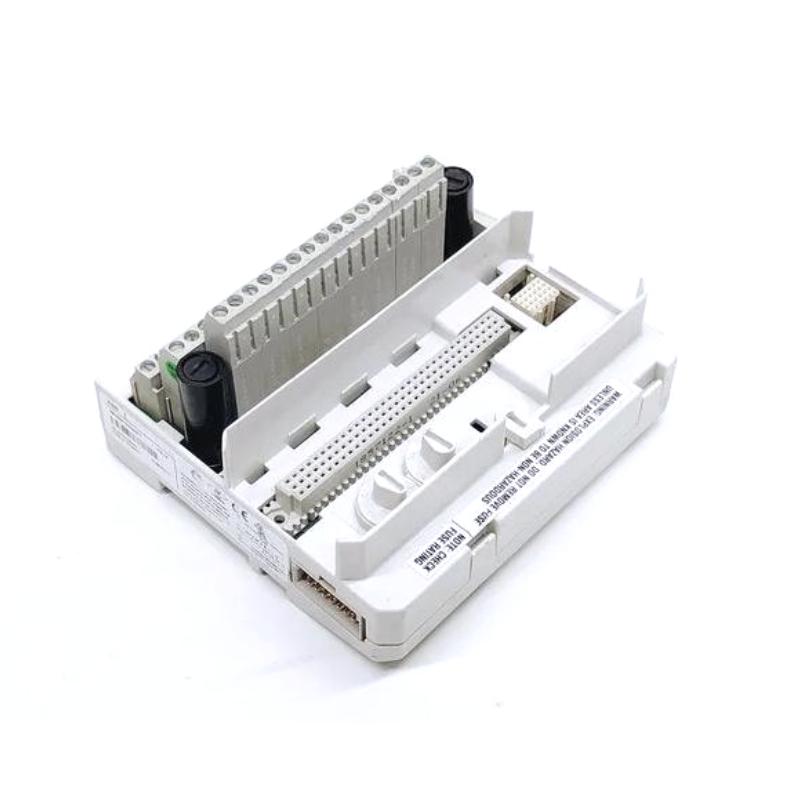

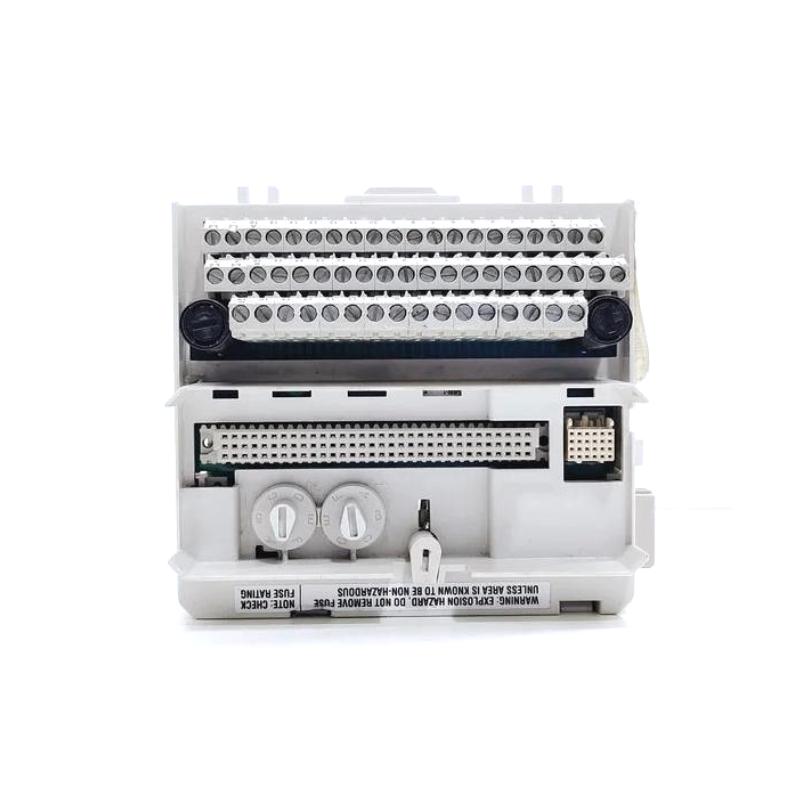

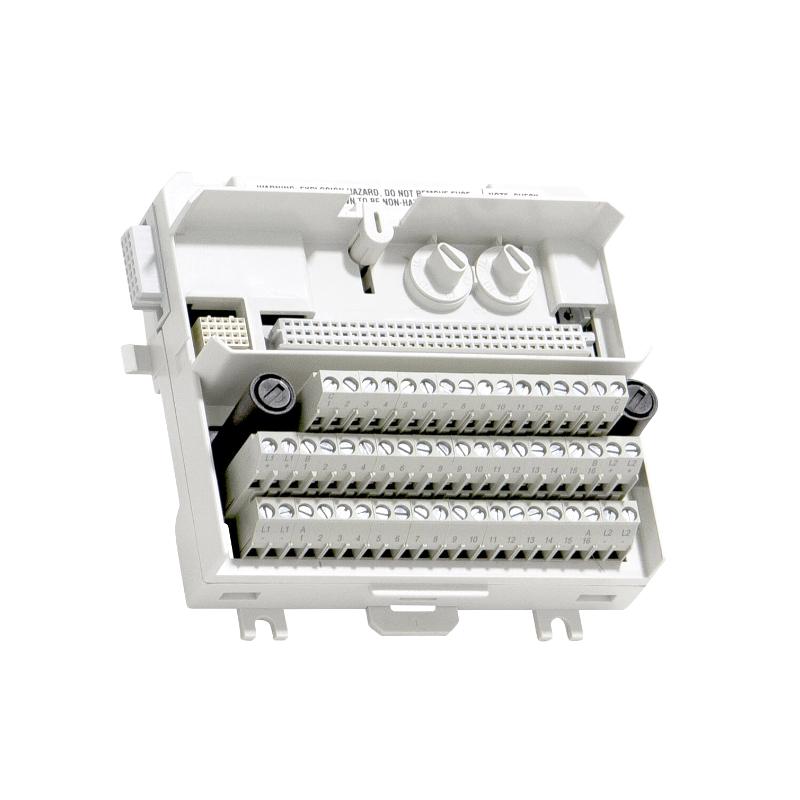

The ABB TU830V1 is an extended Module Termination Unit (MTU) designed for the ABB S800 I/O distributed control system, providing a reliable interface between field wiring and I/O modules. As a passive component within the automation architecture, it simplifies signal termination while distributing the ModuleBus communication required for seamless interaction between modules and controllers.

The TU830V1 supports up to 16 I/O channels and includes two isolated process voltage groups, allowing flexible power distribution and signal management within industrial control cabinets. Each group is protected by a 6.3 A fuse, ensuring stable operation and enhanced electrical protection for connected field devices.

Built for demanding process automation environments, the TU830V1 integrates mechanical keying that prevents incorrect module insertion. This design reduces installation errors and ensures dependable operation in large-scale distributed automation systems such as ABB 800xA or AC 800M control architectures.

Technical Specifications

Parameter	Specification
Model	TU830V1
ABB Article Number	3BSE013234R1
Product Type	Extended Module Termination Unit (MTU)
System Compatibility	ABB S800 I/O
Signal Channels	16
Process Voltage Groups	2 isolated groups
Rated Voltage	50 V
Maximum Current per Channel	2 A
Fuse Protection	6.3 A per voltage group
Process Connections	56
Connection Type	Terminal block
Mounting	DIN rail (horizontal or vertical)
Protection Class	IP20
Operating Temperature	0 °C to +55 °C
Dimensions (H × W × D)	110 × 126 × 64 mm
Weight	0.28 kg

The TU830V1 distributes the ModuleBus communication signals and shifts address information to the next MTU in the system, enabling scalable expansion of S800 I/O installations.

Recommended Related Models

Model	Description
TU810V1	Compact MTU for S800 I/O systems
TU811V1	8-channel module termination unit
TU812V1	16-channel MTU with D-Sub interface
TU814V1	MTU with snap-in connectors
TU842	Redundant termination unit for high-availability systems

Popular ABB Automation Modules

Model	Module Type
PM803F	Controller CPU Module
CI840A	Communication Interface Module
AI830A	Analog Input Module
SB822	Power Supply Module
PP865A	Operator Panel
PM583-ETH	PLC Controller

Typical Industrial Applications

The ABB TU830V1 is widely used in distributed automation systems where reliable field signal termination and scalable I/O architectures are required.

Common application scenarios include:

Distributed Control Systems (DCS)
Oil & gas process automation facilities
Power generation and energy management plants
Chemical and petrochemical processing systems
Industrial manufacturing production lines
Water treatment and utility automation infrastructure

Its high-density terminal configuration allows efficient wiring management in complex control cabinets, improving installation efficiency and long-term maintenance reliability.

Key Advantages

High-Density Signal Termination
Supports up to 16 field I/O channels, allowing centralized management of multiple field devices.

Reliable Power Distribution
Two isolated voltage groups with fuse protection enhance electrical safety.

Integrated ModuleBus Communication
Ensures stable data transmission between connected S800 I/O modules.

Mechanical Keying Safety
Prevents incorrect module installation and protects system integrity.

Industrial-Grade Design
Built for long-term performance in harsh process automation environments.

Technical FAQs

1. What is the ABB TU830V1 used for?
It is a module termination unit used to connect field wiring to ABB S800 I/O modules while distributing ModuleBus communication.

2. How many channels does the TU830V1 support?
The unit supports 16 I/O channels.

3. What is the maximum rated voltage?
The MTU supports a maximum rated voltage of 50 V.

4. What is the maximum current per channel?
Up to 2 A per channel.

5. Does the TU830V1 include fuse protection?
Yes, each process voltage group is protected by a 6.3 A fuse.

6. What automation systems use this MTU?
Primarily ABB S800 I/O systems integrated with 800xA or AC 800M controllers.

7. How is the unit mounted?
It is installed on a standard DIN rail, supporting both horizontal and vertical mounting.

8. Which I/O modules are compatible with TU830V1?
Modules such as AI810, AI830, AO810, DI810, DI830, DO810, and DP820 can be used with this MTU.

9. Does the TU830V1 process signals itself?
No. It is a passive interface unit designed for wiring termination and communication distribution.

10. Why is TU830V1 widely used in automation systems?
Because it provides reliable field wiring termination, scalable I/O connectivity, and seamless integration within ABB S800 distributed control architectures.
