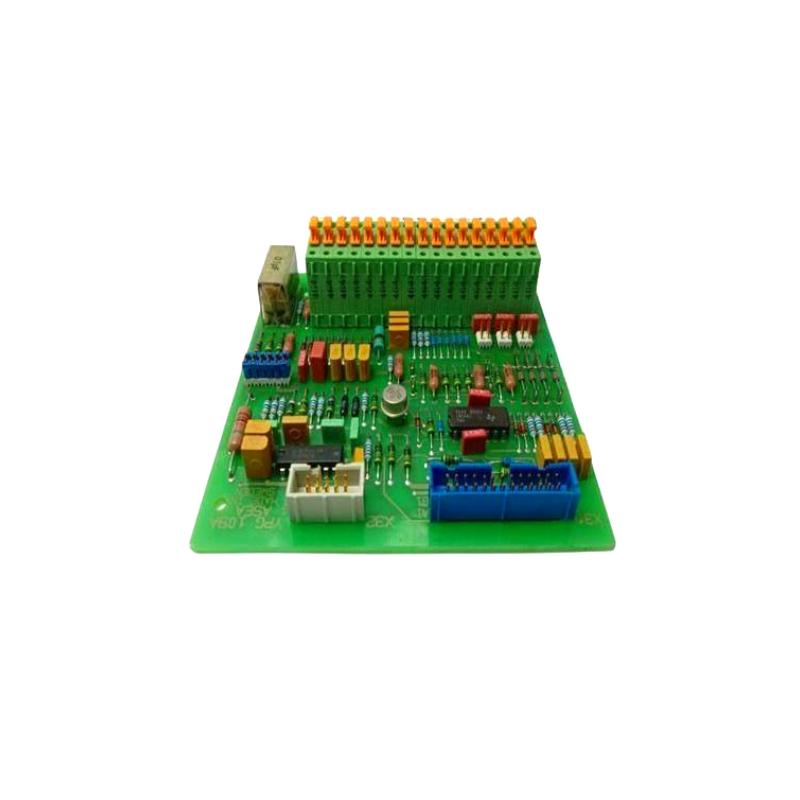

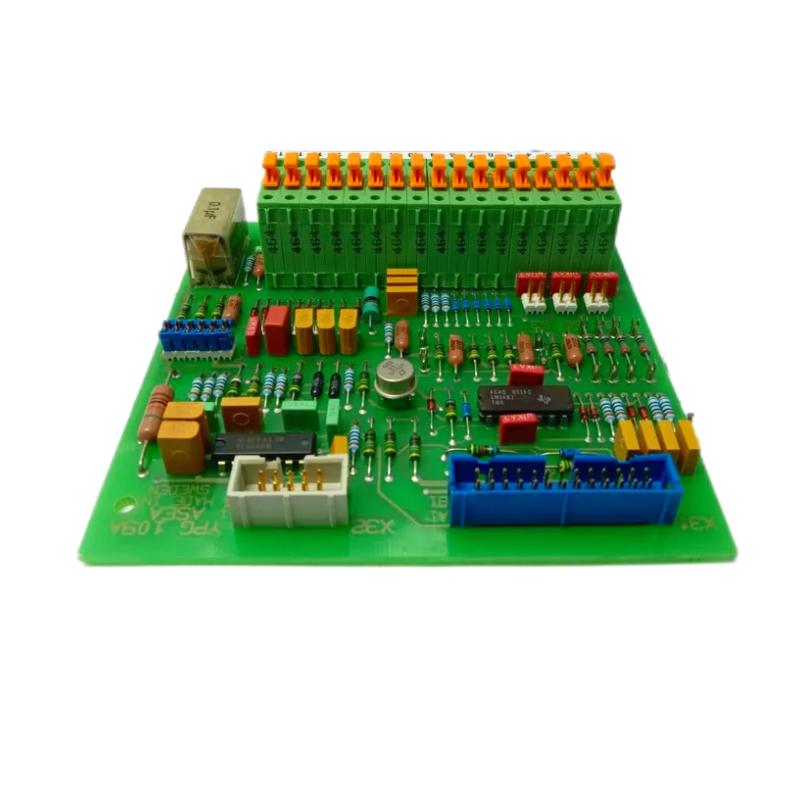

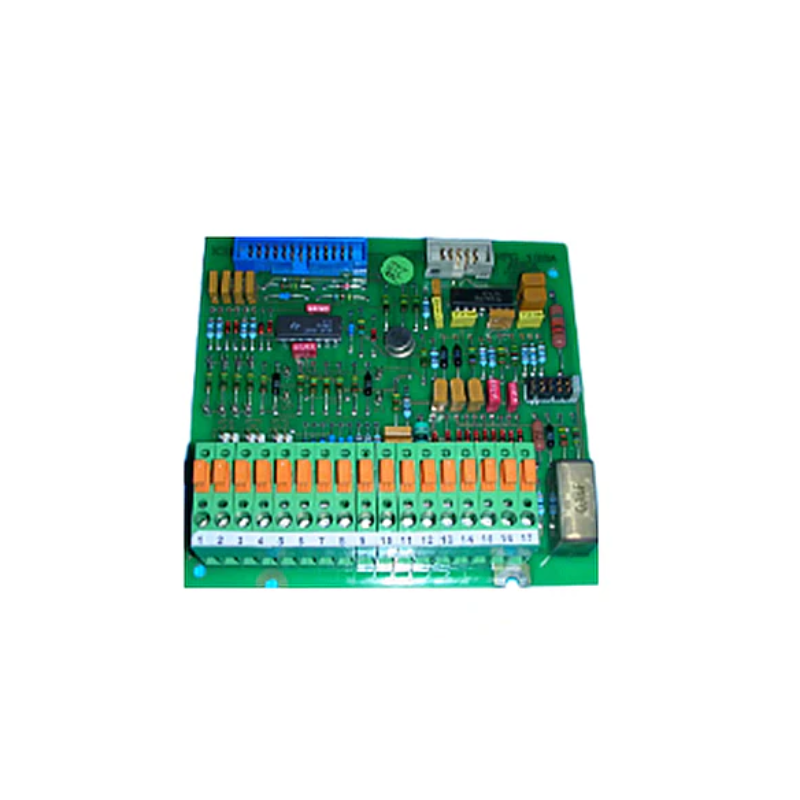

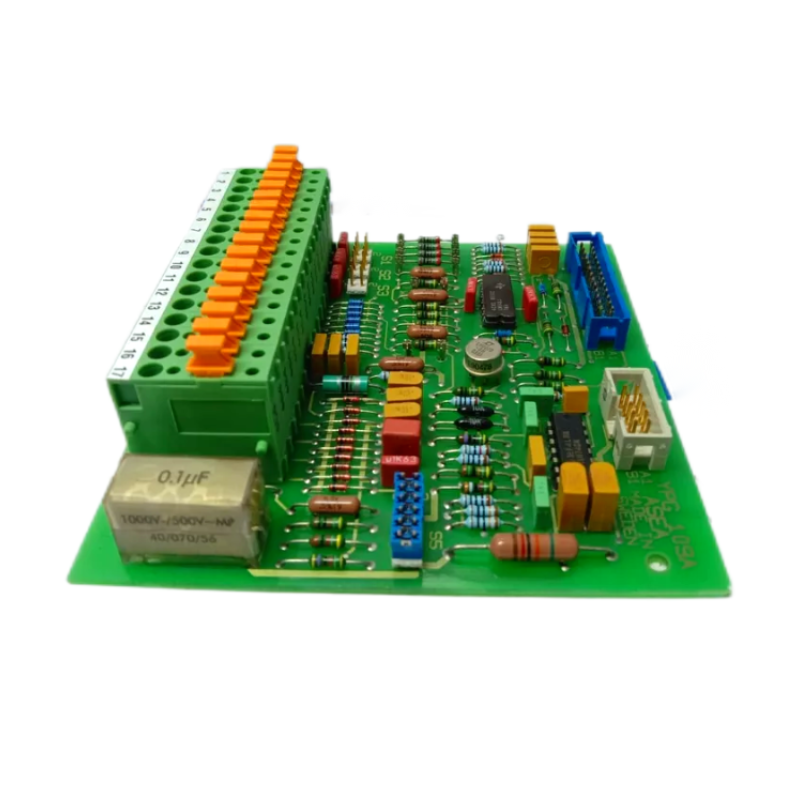

The ABB YPG 109A (catalogued as YT204001‑CE) is an industrial‑grade analog input connection unit engineered to process and manage analog signals within distributed automation, DCS, and PLC control systems. This module serves as a robust interface for analog input channels, converting field‑level voltage or current signals (such as 0–10 V or 4–20 mA) into precise, usable data for controllers and supervisory systems. Its design supports seamless integration into ABB automation architectures and is crafted for stable, long‑term performance in demanding industrial environments.

Technical Specifications

Parameter	Specification
Model	YPG 109A
ABB Article Number	YT204001‑CE
Product Type	Analog Input Connection Unit
Function	Analog signal acquisition and conversion
System Compatibility	Distributed control and PLC systems
Analog Input Range	0–10 V, 4–20 mA (configurable)
Resolution	Typically 16‑bit for high precision
Sample Rate	~1 kHz (application dependent)
Power Supply	24 V DC (±20 %)
Operating Temperature	–20 °C to +60 °C
Installation	DIN rail or panel mounted integration
Dimensions (L × W × H)	120 × 90 × 30 mm (industry standard module footprint; typical for analog interface boards)
Weight	0.18 kg
Protection Class	Industrial enclosure (dependent on panel integration)
Country of Origin	Sweden

This unit provides precise analog data conversion and is often used where accurate measurement and conditioning of field signals are required before logic processing or control.

Recommended Related Models

Model	Description
ABB YPG 110A	Analog connection unit with extended channel support
ABB UF C719 AE01	I/O control board for mixed signal interfaces
ABB UF C721 AE101	Voltage/current measurement and communication module
ABB CI801	Communication interface module for controllers
ABB PM803F	Controller CPU module

Popular ABB Automation Modules

Model	Module Type
PM902F	CPU Processor Module
AI830A	Analog Input Module
SB822	Power Supply Module
PP865A	Operator Panel
CI840A	Communication Interface Module
PM583‑ETH	PLC Controller with Ethernet

Typical Industrial Applications

The ABB YPG 109A analog input connection unit is suited for applications requiring robust analog signal interfacing and conversion:

Distributed Control Systems (DCS) requiring precise field signal acquisition
PLC‑based automation in manufacturing and process plants
Remote I/O station analog input expansion
Machine control panels requiring analog sensor integration
Energy management and utility monitoring systems
Process monitoring for chemical, petrochemical, and power generation industries

Its design prioritizes accurate analog conversion and signal integrity, supporting stable real‑time control and monitoring workflows.

Key Advantages

Precise Analog Signal Handling
Designed for multi‑channel analog input measurement and high‑resolution conversion.

Seamless System Integration
Optimized for ABB distributed systems and PLC interfaces with standard industrial protocols.

Space‑Efficient Form Factor
Compact dimensions (120 × 90 × 30 mm) allow easy installation inside control cabinets or DIN rail assemblies.

Industrial‑Grade Reliability
Built for stable performance in harsh automation environments with wide operating temperature tolerance.

Configurable Input Ranges
Supports common industrial analog ranges such as 0–10 V and 4–20 mA, making it adaptable to diverse sensors and transducers.

Technical FAQs

1. What is the ABB YPG 109A used for?
It is an analog input connection unit that collects and conditions analog signals from field devices for control system processing.

2. What analog signal ranges does it support?
Typical support includes 0–10 V and 4–20 mA configurable ranges.

3. What systems is it compatible with?
It integrates with distributed control and PLC automation systems requiring analog data acquisition.

4. What power supply is required?
Standard 24 V DC supply.

5. What is the typical resolution for signal conversion?
High‑precision 16‑bit resolution for accurate analog‑to‑digital conversion.

6. How does it mount?
Designed for DIN rail or panel mounting inside control enclosures.

7. What is its operating temperature range?
Typically –20 °C to +60 °C.

8. Is it suitable for industrial environments?
Yes — built for industrial use with robust signal handling.

9. Can this unit reduce wiring complexity?
Yes — centralizes analog input connections and conditioning, simplifying panel wiring.

10. Why choose ABB YPG 109A for your automation system?
Because it delivers precise analog signal processing, broad compatibility, and reliable performance in industrial control applications.
