Introduction

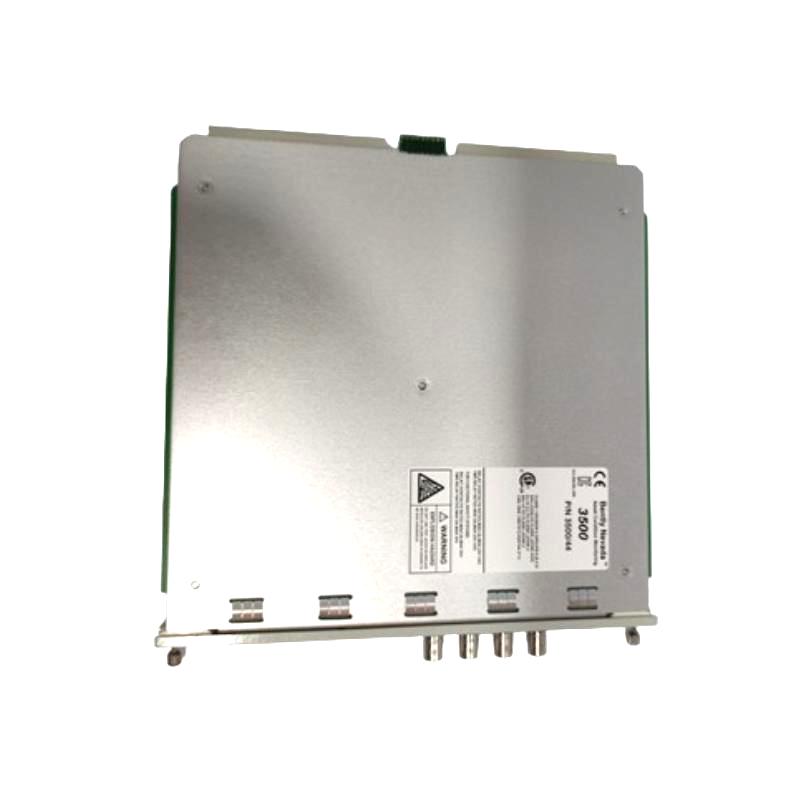

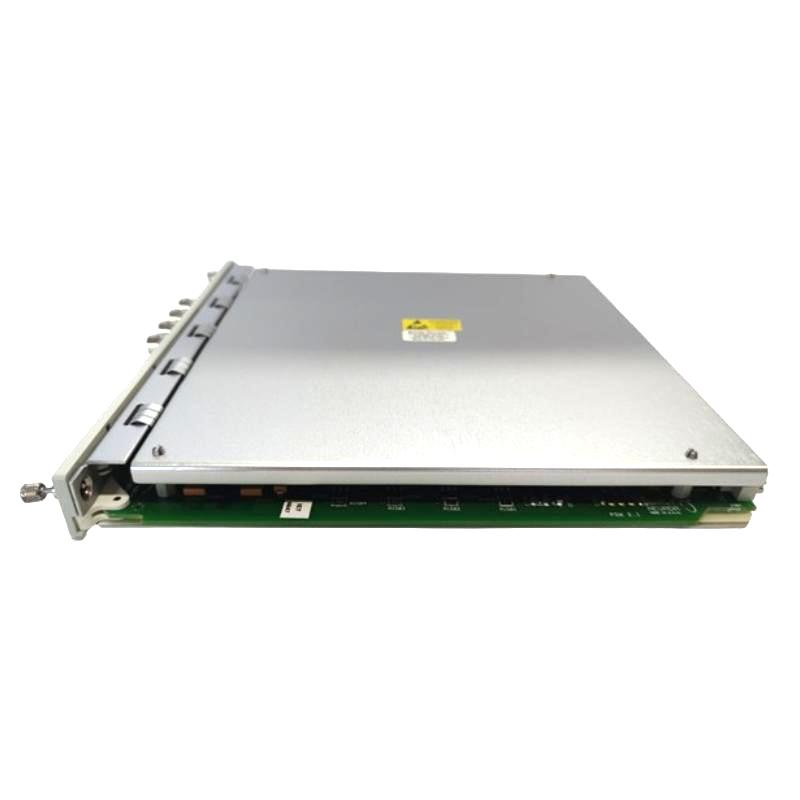

The Bently Nevada 3500/44M 176449-03 Aeroderivative GT Vibration Monitor is a high-performance module designed to protect aeroderivative gas turbines and other high-speed machinery. By accurately measuring vibration and integrating with the 3500 protection system, it enables early fault detection, predictive maintenance, and enhanced operational safety. Compact, robust, and engineered for harsh industrial conditions, it is ideal for facilities seeking reliable turbine monitoring.

Technical Specifications

Parameter	Details
Model	3500/44M 176449-03
Function	Aeroderivative Gas Turbine Vibration Monitor
Dimensions	241.3 × 24.4 × 241.8 mm
Weight	0.91 kg
System Compatibility	Bently Nevada 3500 Series Racks
Cooling	Natural convection
Installation	Standard 3500 rack slot
Signal Types	Vibration inputs for high-speed turbines
Channels	Multiple sensor inputs supported
Operating Environment	Turbine halls, industrial machinery, compressor stations

Recommended Related Models

Bently Nevada 3500/05 System Rack
Bently Nevada 3500/42M 176449-02 Preamplifier Seismic Monitor
Bently Nevada 3500/22M 164466-01 Transient Data Interface Module
Bently Nevada 3500/15 126399-01 AC Power Module
Bently Nevada 3300 XL Proximity and Velocity Sensors

Popular Related Models

Bently Nevada 3500/42 140471-01 Prox/Velom I/O Module
Bently Nevada 3500/32 125712-01 4-Channel Relay Module
Bently Nevada 3500/33 149986-01 16-Channel Relay Module
Bently Nevada 3500/45 Position Monitor
Bently Nevada 3500/50 Tachometer Module

Applications

The Bently Nevada 3500/44M 176449-03 Aeroderivative GT Vibration Monitor is engineered for high-speed gas turbine applications, particularly aeroderivative units. Typical use cases include:

Monitoring aeroderivative gas turbines in power plants
High-speed compressors and rotating machinery
Critical asset protection in oil & gas, petrochemical, and energy sectors
Integrating into 3500 system racks for continuous vibration surveillance
Supporting predictive maintenance and early fault detection in turbine machinery

Advantages

Optimized for High-Speed Turbines: Designed specifically for aeroderivative gas turbines with rapid response requirements.
Accurate Vibration Monitoring: Captures both amplitude and phase of vibration signals for detailed diagnostics.
Integrated Signal Processing: Prepares vibration data for seamless system analysis and alarm triggering.
Compact Rack Integration: Fits standard 3500 racks while maintaining high functionality.
Reliable and Durable: Built for harsh industrial environments with vibration, temperature, and operational stress.
Enhanced Maintenance and Safety: Supports predictive maintenance strategies and protects high-value assets.

Technical FAQs

What is the purpose of the 3500/44M module?
To monitor vibration on aeroderivative gas turbines and deliver precise data to the 3500 system.
Is it compatible with standard 3500 racks?
Yes, designed for 19-inch 14-slot and compatible 12-inch racks.
Does it support multiple vibration channels?
Yes, multiple sensor inputs can be configured depending on the system setup.
Can it operate in high-speed turbine environments?
Absolutely, it is specifically engineered for high-speed machinery.
Is redundancy supported?
Multiple modules can be installed for backup monitoring and additional coverage.
Is hot-swapping possible?
Replacement should be performed with the rack powered down according to safety procedures.
What maintenance is required?
Minimal; periodic inspection and connection checks are recommended.
Does it integrate with plant-wide control systems?
Yes, via 3500 system modules for alarm and data analysis integration.
Which industries benefit most?
Power generation, oil & gas, petrochemical, and industrial plants with high-speed turbines.
Does it support predictive maintenance strategies?
Yes, by providing accurate vibration data for trend analysis and fault detection.
