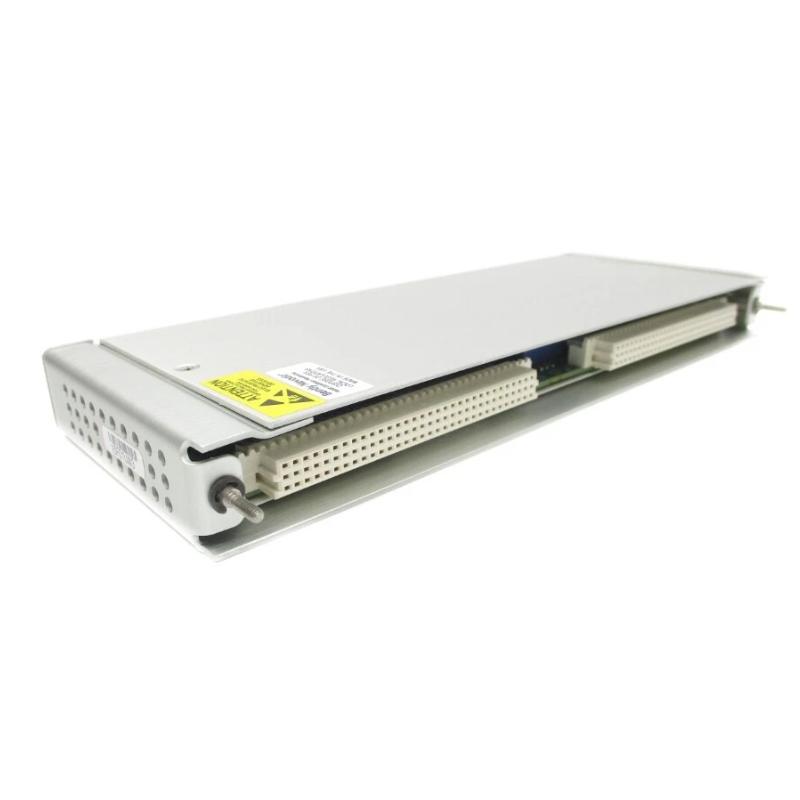

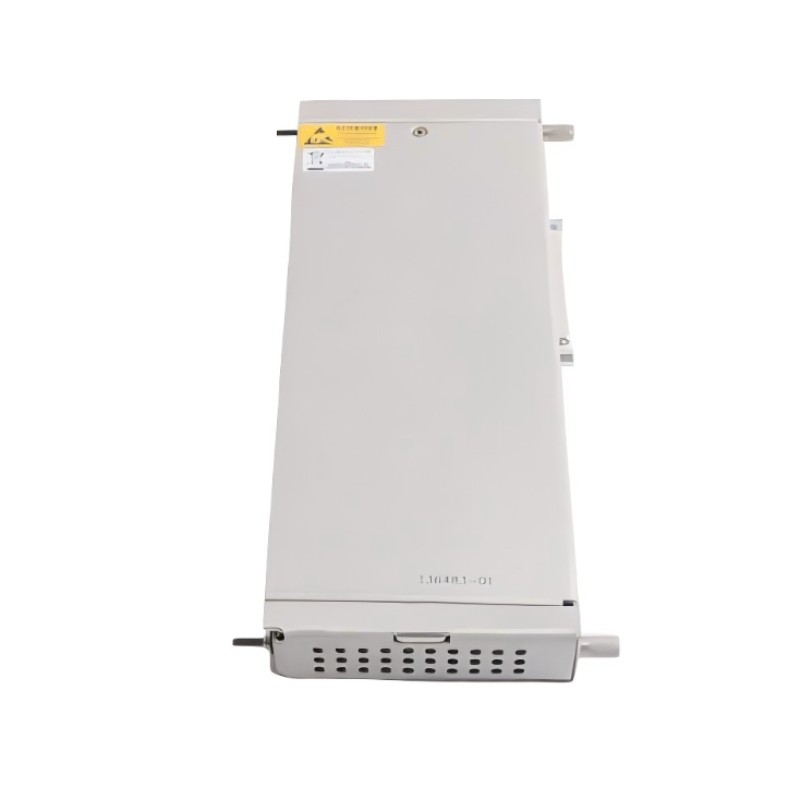

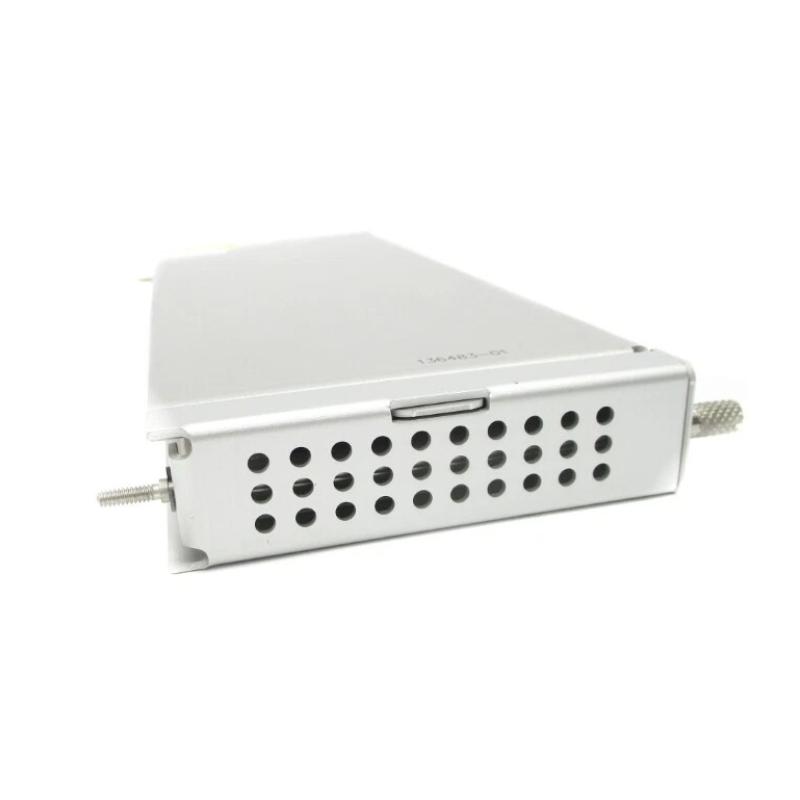

Bently Nevada 3500/62 136499-01 I/O Module with External Terminal
Bently Nevada 3500/62 136499-01 I/O Module with External Terminal
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/62 Product Origin:USA Product Dimensions:241.3 x 24.4 x 99.1 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/62 136499‑01 I/O Module with External Terminal enhances the flexibility of 3500 Series machinery protection systems by providing additional, easily accessible input and output points. Its compact design, rugged construction, and seamless integration allow operators to expand monitoring capabilities without disrupting existing setups. This module ensures reliable alarms and control signals, improving machinery protection and operational safety.
Technical Specifications
Specification
Detail
Part Number
136499‑01
Series
3500/62
Function
I/O Module with External Terminal
Inputs/Outputs
Multiple configurable points for alarms, trips, and monitoring
Bently Nevada 3500/22M 288055‑01 Transient Data Interface
Bently Nevada 3500/60 133819‑01 Temperature Monitor I/O Module
Applications
The Bently Nevada 3500/62 136499‑01 I/O Module with External Terminal is designed to expand the input/output capabilities of 3500 Series machinery protection systems. It provides a convenient interface for external sensors, alarm relays, and control circuits, enabling precise monitoring and rapid response in industrial environments. Typical applications include integrating auxiliary alarms, interfacing with control systems, and extending monitoring points for turbines, compressors, and pumps.
Advantages
External Terminal Integration: Simplifies connection to external sensors and control devices.
Flexible I/O Configuration: Supports multiple input and output points for alarms, trips, and monitoring.
Compact Design: Slim profile allows efficient use of rack space.
Seamless 3500 Series Integration: Fits standard racks and communicates with other modules without modification.
Industrial Durability: Built to operate reliably in high-vibration, high-temperature, and harsh environments.
Technical FAQs
What is the main function of this module?
To provide additional I/O points with external terminal connectivity for 3500 Series systems.
How many inputs and outputs does it support?
Configurable; supports multiple external sensors, alarms, and control connections.
Can it integrate with other 3500 Series modules?
Yes, it communicates via the 3500 rack backplane.
Is the module configurable without hardware changes?
Yes, configuration is done via 3500 Rack Configuration software.
What is the operating voltage?
18–30 V DC (supplied from the 3500 Series rack).
Can it operate in harsh industrial environments?
Yes, designed for industrial temperature and vibration ranges.
Is it easy to install in existing racks?
Yes, designed for quick integration with standard 3500 Series racks.
Does it provide alarm outputs?
Yes, configurable outputs for alarms and trips.
What maintenance is required?
Minimal; routine checks of external connections and configuration are recommended.
What is the module’s physical size and weight?
Dimensions: 241.3 x 24.4 x 99.1 mm, Weight: 0.2 kg.
