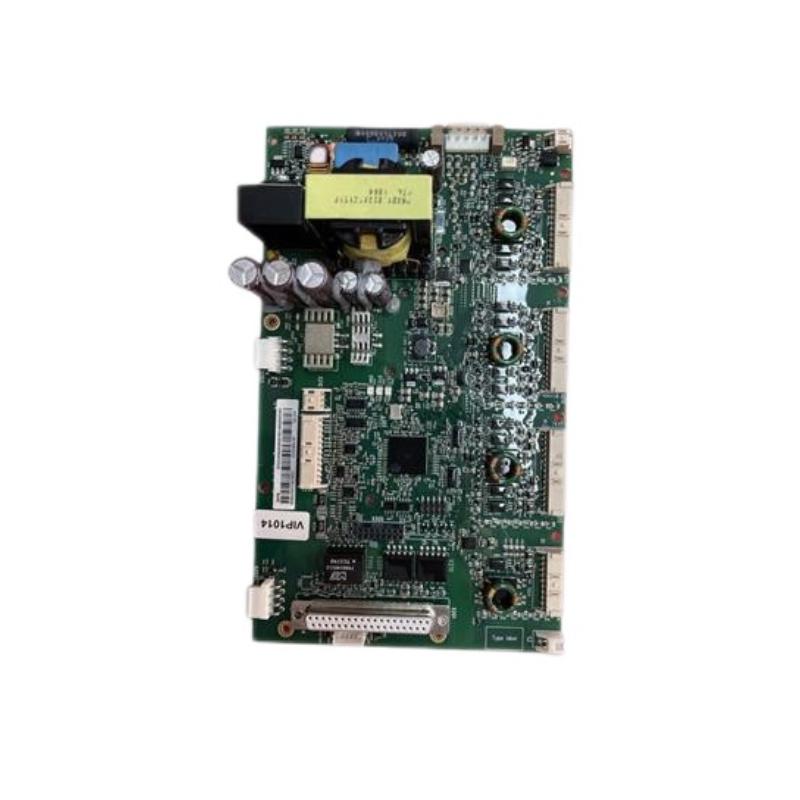

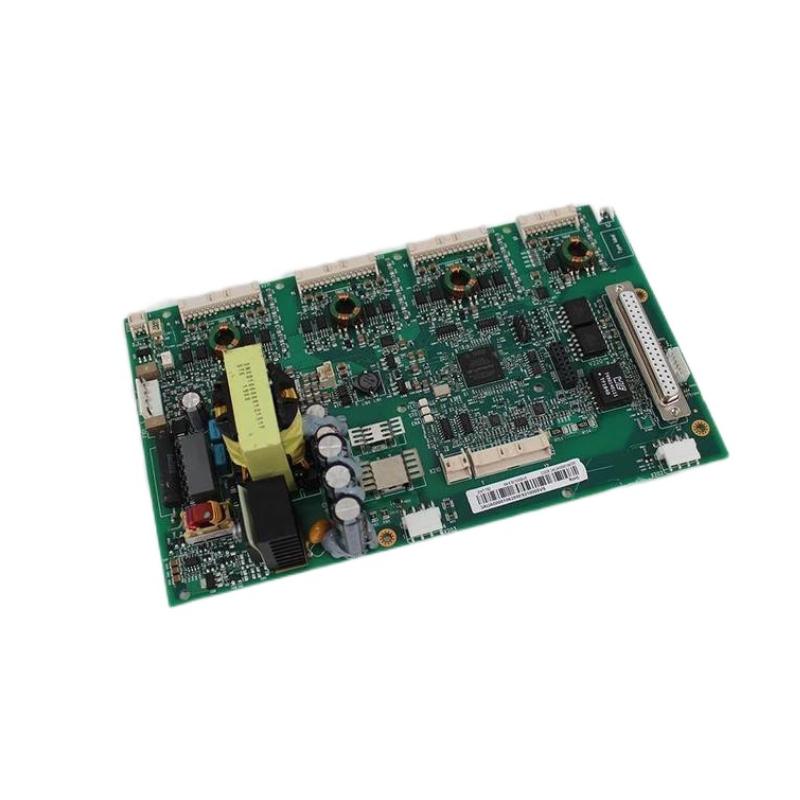

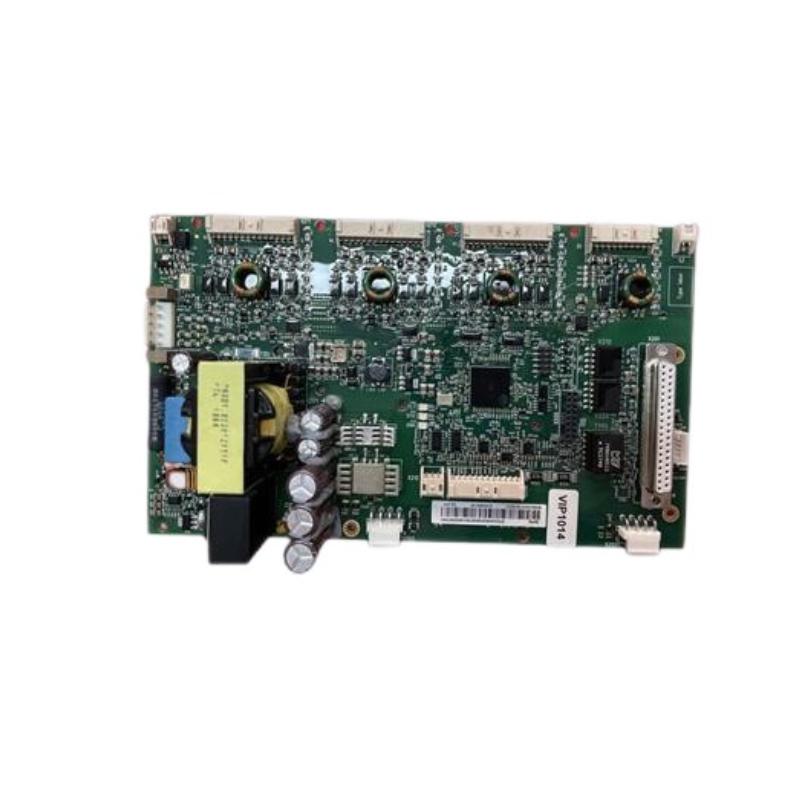

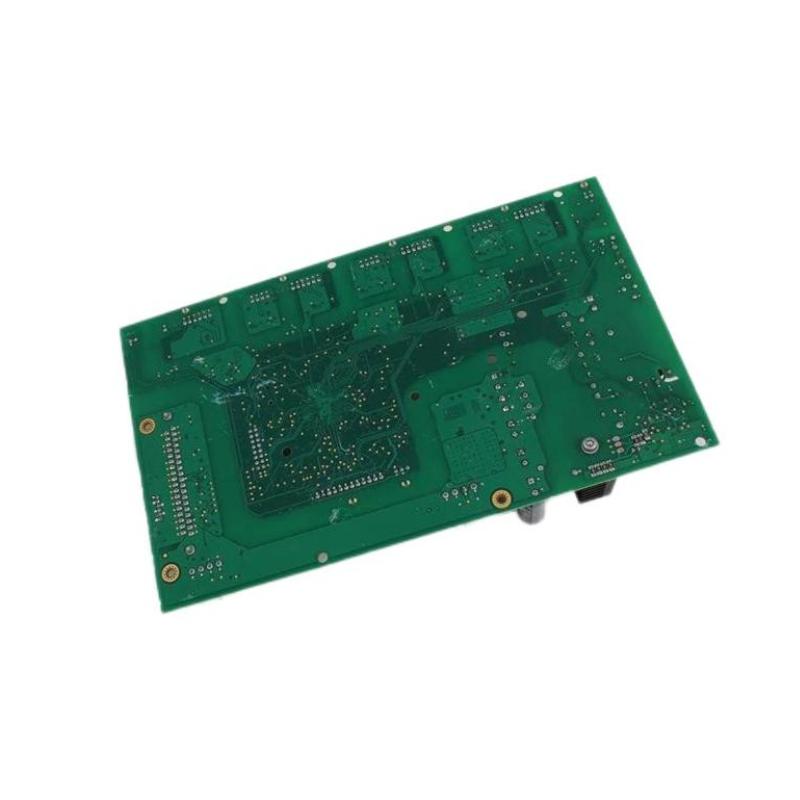

The ABB ZINT‑792 (catalog number 3AUA0000106285) is a core main circuit interface board designed for integration into ABB ACS880 series frequency converter / drive systems (specifically ACS880‑01 models with 690 V devices and frame sizes R6–R9). This board is responsible for managing key interface tasks between the drive’s power electronics and its control circuitry, enabling reliable signal coordination and stable electrical performance inside the inverter.
Engineered with industrial‑grade components and tested for durability, the ZINT‑792 ensures consistent operation under demanding industrial conditions. It is often used as a replacement part in maintenance or drive refurbishment programs to restore original performance and endurance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | ZINT‑792 |
| ABB Article Number | 3AUA0000106285 |
| Product Type | Main Circuit Interface Board / Drive Board |
| Compatible Drives | ABB ACS880‑01 (690 V devices, frame R6–R9) |
| Function | Power & control interface inside VFD systems |
| Mounting Type | Drive internal assembly |
| Weight | 0.415 kg (net) |
| Protection | Internal enclosure (IP20 drive interior) |
| Dimensions (L × W × H) | 160 × 85 × 35 mm (typical board form factor) |
| Origin | Sweden |
This module integrates directly with the ACS880 drive components and supports stable power distribution and signal exchange between main power electronics and embedded control systems.
