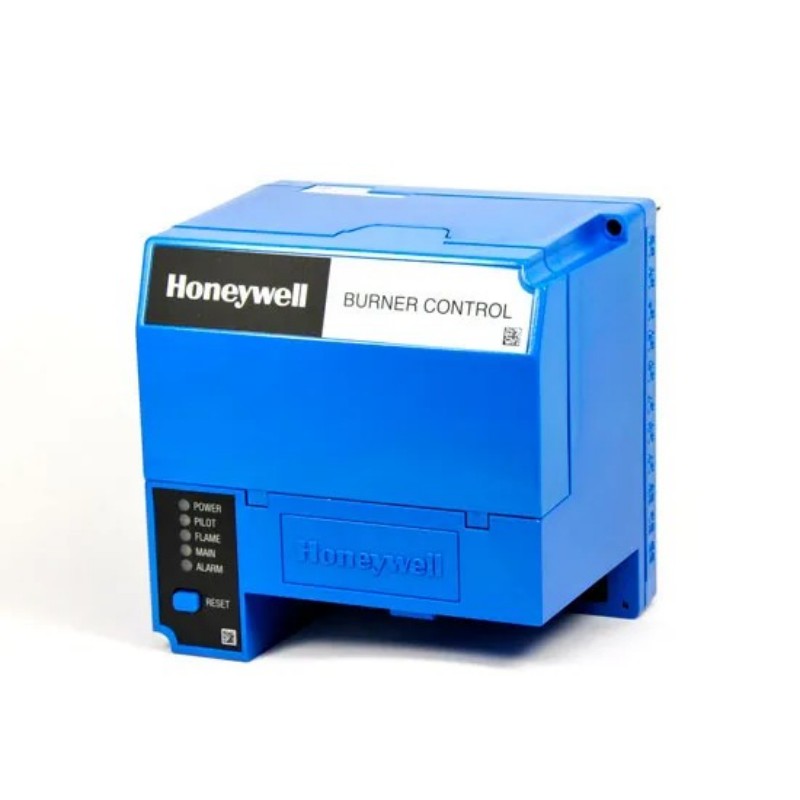

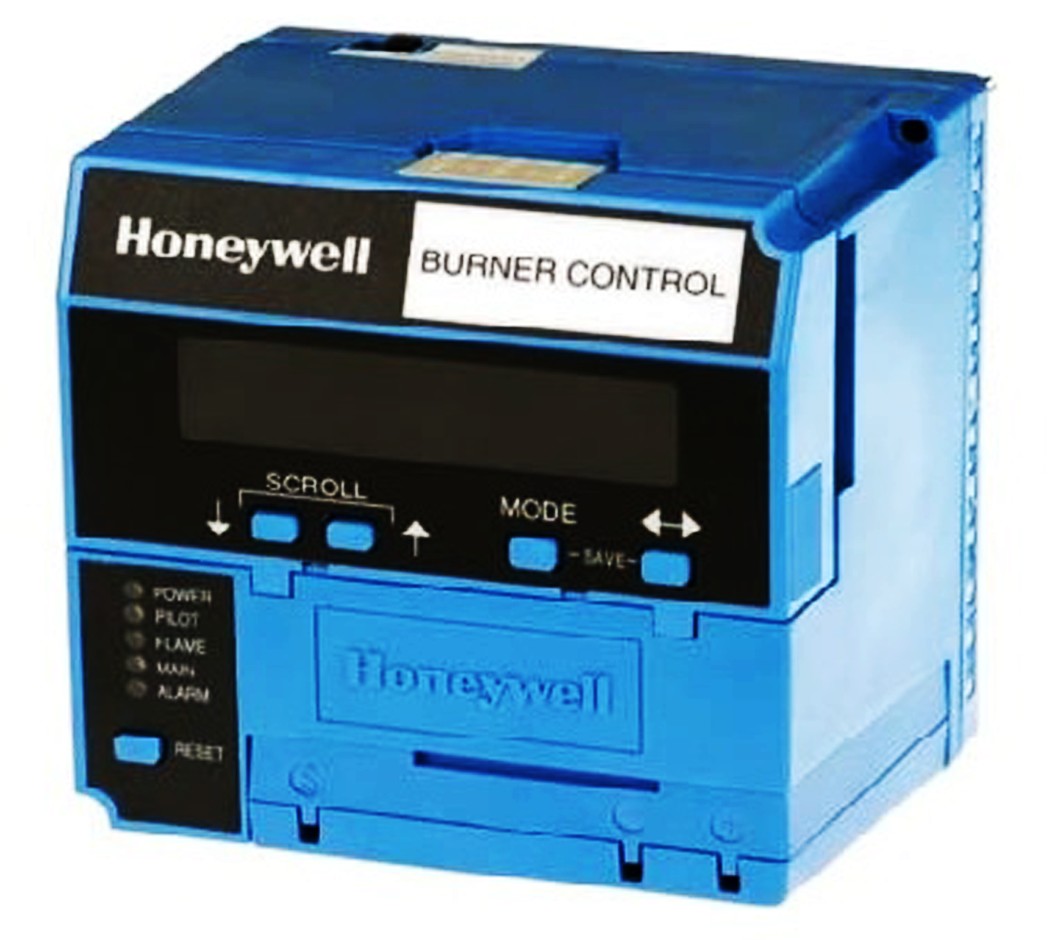

Honeywell RM7890A105 Industrial Burner Control Module for Flame Supervision and Safety Sequencing
Honeywell RM7890A105 Industrial Burner Control Module for Flame Supervision and Safety Sequencing
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell RM7890A10 Product Origin:USA Product Dimensions:125 × 110 × 100 mm Product Weight:0.72 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell RM7890A105 burner control module represents a benchmark in industrial combustion control by offering dependable flame detection, automatic sequencing, and safety shutdown for commercial and industrial burner systems. Built to deliver consistent performance in demanding environments, this module is ideal for managing ignition, supervised flame monitoring, and controlled burner operation where safety compliance and operational uptime are critical. Its robust engineering and seamless integration with Honeywell sub‑bases and auxiliary components make the RM7890A105 a reliable choice for OEMs and field engineers alike who require both precision and durability in combustion management.
Technical Specifications
Parameter
Specification
Model
RM7890A105
Manufacturer
Honeywell
Module Type
Burner Control Module
Core Function
Flame monitoring and sequenced burner control
Power Supply
120 VAC
Control Outputs
Relay outputs for ignition, fuel, and safety circuits
Flame Input
Photocell/flame rod input compatible
Diagnostics
Built‑in status indicators and fault outputs
Operating Temperature
-40°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting
Plug‑in with compatible sub‑base
Dimensions (L × W × H)
125 × 110 × 100 mm
Weight
0.72 kg
Recommended Related Models
Honeywell RM7890A1015
Honeywell RM7890A1031
Honeywell RM7840L1018
Honeywell RM7850A1019
Honeywell RM7885A1015
Honeywell RM7888A1019
Honeywell RM7824A1006
Popular Honeywell Burner Control Modules
Honeywell RM7890A105
Honeywell RM7890A1015
Honeywell RM7890A1031
Honeywell RM7840G1014
Honeywell RM7840L1026
Honeywell RM7850A1001
Honeywell RM7885A1015
Honeywell RM7888A1019
Applications
The Honeywell RM7890A105 is extensively used across industries where precise flame control and automated burner sequencing improve safety and efficiency. Common use cases include:
High‑capacity industrial steam and hot water boilers
Commercial and industrial burner systems
Combustion control in HVAC and process heating equipment
Industrial furnaces and thermal processing lines
Food processing and drying installations
Chemical and petrochemical combustion applications
With its reliable safety features and flexible control logic, the RM7890A105 enhances operational stability and helps meet stringent safety standards in regulated environments.
Advantages
Reliable Flame Supervision
The module’s integrated flame detection and safety shutdown logic provide peace of mind in critical combustion applications.
Automatic Sequenced Control
Automated sequencing reduces manual intervention for ignition, fuel control, and safety logic, boosting system efficiency.
Modular Integration
Designed for compatibility with Honeywell relay sub‑bases and auxiliary modules, allowing scalable system architectures.
Straightforward Troubleshooting
Built‑in status indicators and fault outputs help technicians quickly identify issues, reducing downtime.
Industrial‑Grade Durability
Robust construction ensures the RM7890A105 performs reliably under wide temperature ranges and demanding conditions.
Technical FAQs
What primary function does the Honeywell RM7890A105 serve?
It supervises burner flame and controls sequenced ignition and safety shutdown in combustion systems.
What power requirement does this module have?
The RM7890A105 is designed to operate on a 120 VAC supply.
Can this controller work with different types of flame detectors?
Yes, it supports standard photocell and flame rod inputs that interface with common flame sensing devices.
Is the RM7890A105 suitable for commercial boilers?
Yes, it is built to handle combustion control for both commercial and industrial boiler applications.
Does this module include diagnostic features?
Yes, built‑in indicators and fault outputs assist in rapid diagnostics and maintenance.
How is this module mounted?
It mounts on a compatible Honeywell relay sub‑base using a plug‑in installation.
Can this controller reduce system downtime?
Yes, its logical sequencing and diagnostic output help streamline maintenance activities while supporting uninterrupted operation.
What environments can it operate in?
It is rated for wide temperature ranges suitable for most industrial settings.
Is the unit compatible with auxiliary displays or external controls?
When paired with compatible Honeywell interface modules, expanded monitoring and control capabilities are possible.
What safety actions occur on flame loss?
The module immediately initiates a safety shutdown to prevent unsafe combustion conditions.
