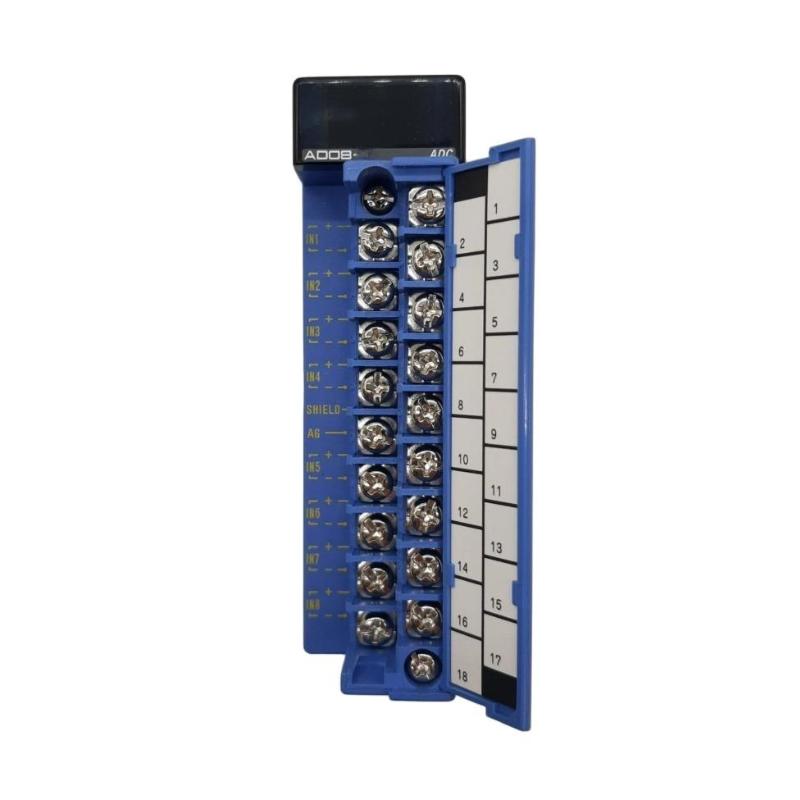

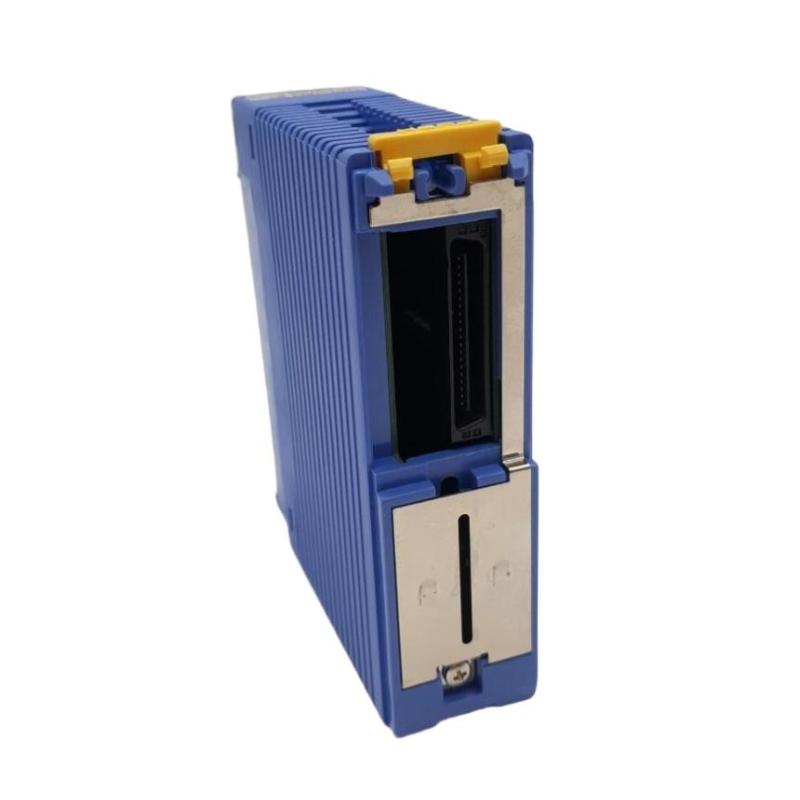

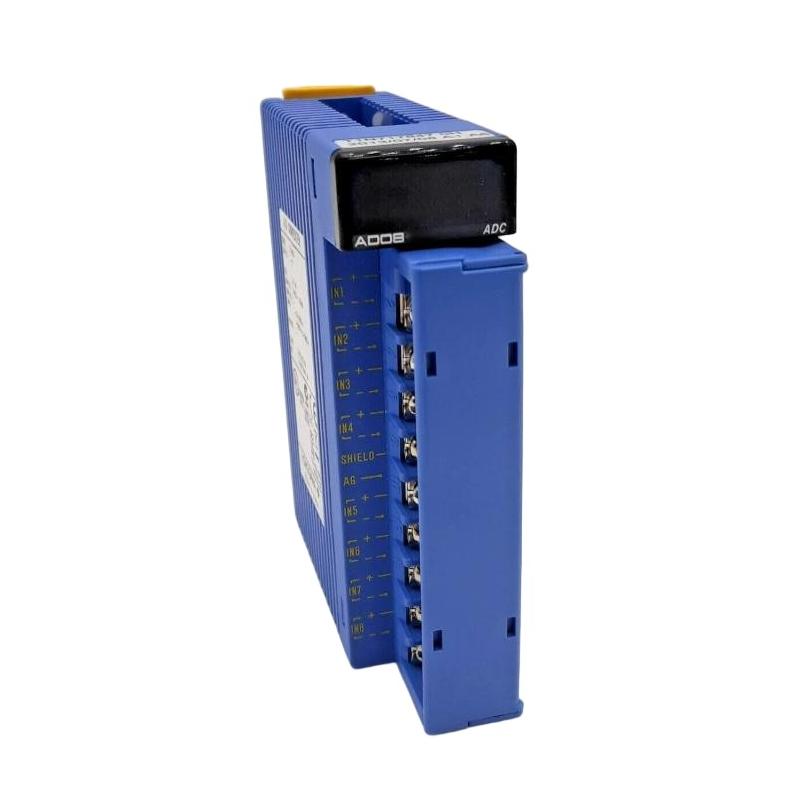

Yokogawa F3AD08-4V Analog-to-digital Conversion Input Module

Applications

• Industrial process monitoring and data acquisition

• Signal conversion for chemical and petrochemical plants

• Integration with CENTUM VP and FAST/TOOLS systems for real-time control

• Power generation and distribution system monitoring

• Automated manufacturing lines requiring precise analog signal conversion

Advantages

• High-accuracy analog-to-digital conversion for reliable process data

• Low latency for real-time control applications

• Seamless integration with Yokogawa control systems

• Compact design suitable for high-density I/O racks

• Reduced maintenance due to robust industrial-grade construction

Technical FAQs

1. Q: What type of signals does the F3AD08-4V support?
   A: It supports standard analog input signals, including 4–20 mA and 0–10 V.

2. Q: How many channels are available on this module?
   A: The module provides 8 analog input channels.

3. Q: Can it handle simultaneous sampling?
   A: Yes, it supports simultaneous sampling of all channels for accurate data acquisition.

4. Q: What is the typical conversion accuracy?
   A: ±0.1% of full scale under normal operating conditions.

5. Q: How does it communicate with the main controller?
   A: Communication is via the standard Yokogawa backplane interface for CENTUM systems.

6. Q: What is the operating temperature range?
   A: 0°C to 55°C (32°F to 131°F).

7. Q: Does it support isolation between channels?
   A: Yes, all channels are electrically isolated to prevent interference.

8. Q: Is firmware or calibration software available?
   A: Yes, calibration and configuration are handled via Yokogawa system tools.

9. Q: Can it be used in redundant configurations?
   A: Yes, it can operate in dual-redundant systems for critical applications.

10. Q: Is it suitable for high-noise industrial environments?
    A: Yes, it is designed with shielding and isolation to reduce noise interference.
