Introduction

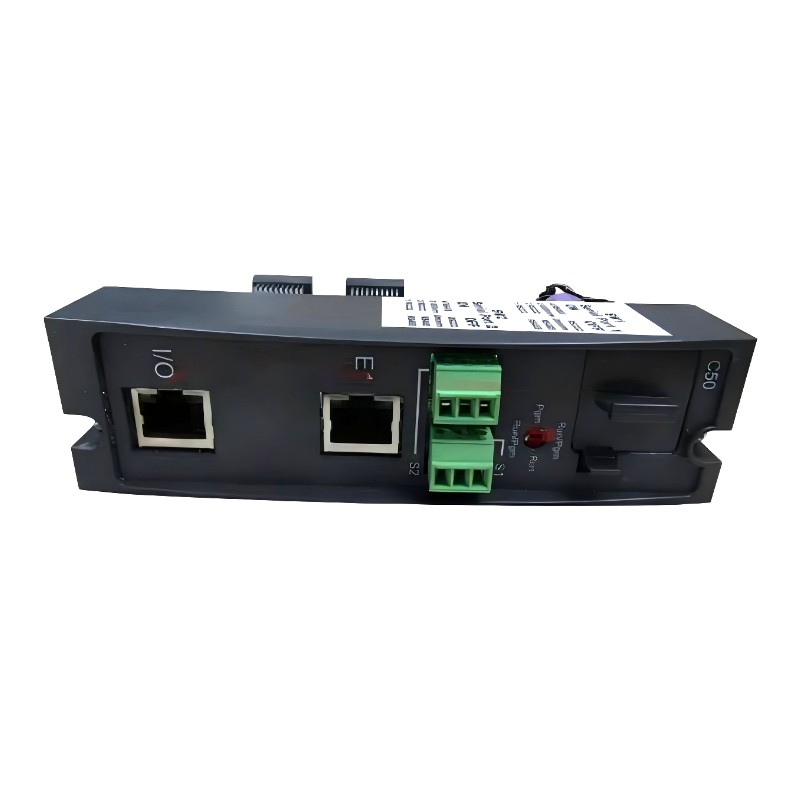

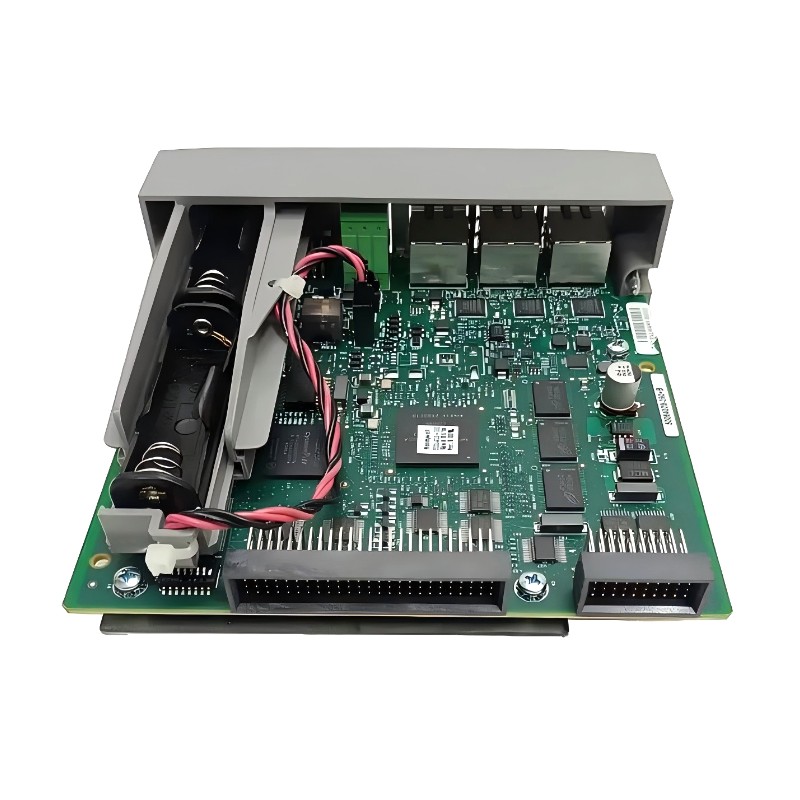

The Honeywell 900C51-0124-00 HC900 C50 CPU Processor Module is the core of the HC900 C50 automation system, providing reliable, high-speed processing for industrial control applications. With a compact design, advanced diagnostics, and compatibility with multiple I/O modules, it ensures efficient, real-time control in manufacturing and process automation.

Technical Specifications

Feature	Specification
Module Type	CPU Processor Module
Model	900C51-0124-00
Operating Temperature	-20°C to 60°C
Power Supply	24 VDC ±10%
Connectivity	RS-232, RS-485, Ethernet
MTBF	60,000 hours
Dimensions	68 mm × 107 mm × 78 mm
Weight	0.59 kg

Recommended Related Models

900C50-0101-00 — HC900 C50 Analog Input Module
900C50-0112-00 — HC900 C50 Digital Output Module
900C50-0120-00 — HC900 C50 Power Supply Module
900C50-0130-00 — HC900 C50 Communication Module
900C50-0140-00 — HC900 C50 Analog Output Module

Popular Related Models

900C50-0150-00 — HC900 C50 Expansion I/O Module
900C50-0160-00 — HC900 C50 Redundant CPU Module
900C50-0170-00 — HC900 C50 High-Speed Digital Module
900C50-0180-00 — HC900 C50 Fieldbus Interface Module
900C50-0190-00 — HC900 C50 Remote I/O Extension Module

Applications

Central processing unit for HC900 C50 control systems
Monitoring and managing industrial automation processes
Communication with analog and digital I/O modules for distributed control
Real-time data acquisition and process control in manufacturing systems
Integration with remote diagnostics and predictive maintenance platforms

Advantages

High-Performance CPU: Ensures fast and reliable control for critical industrial applications
Robust and Reliable: Designed for continuous operation in industrial environments
Seamless Integration: Compatible with Honeywell HC900 C50 controllers and peripheral modules
Compact Design: Efficient footprint ideal for panel mounting
Diagnostic Feedback: Built-in LEDs and system diagnostics for status and troubleshooting
Future-Ready: Supports firmware updates and system expansions without major hardware changes

Technical FAQs

What is the primary function of the 900C51-0124-00?
It acts as the main CPU for HC900 C50 systems, managing all control logic and communication.
Is it compatible with previous HC900 modules?
Yes, it is backward compatible with C50 series modules and standard HC900 I/O devices.
What type of communication interfaces are supported?
Supports RS-232, RS-485, and Ethernet interfaces for module and system communication.
Can it be used in high-temperature environments?
Yes, the operating temperature range is -20°C to 60°C.
Does it provide diagnostic indicators?
Yes, LEDs show CPU status, communication errors, and fault conditions.
Is firmware upgradeable?
Yes, firmware updates are supported for compatibility with new system features.
Can it operate continuously without maintenance?
Yes, it is designed for long-term, uninterrupted industrial operation.
Does it support real-time data logging?
Yes, it can interface with HC900 system memory and external logging devices.
Can it handle multiple I/O modules simultaneously?
Yes, it supports a full HC900 C50 system with analog, digital, and expansion modules.
Is it suitable for safety-critical applications?
It can be used for general industrial control; certified safety modules should be used for SIL-rated applications.
