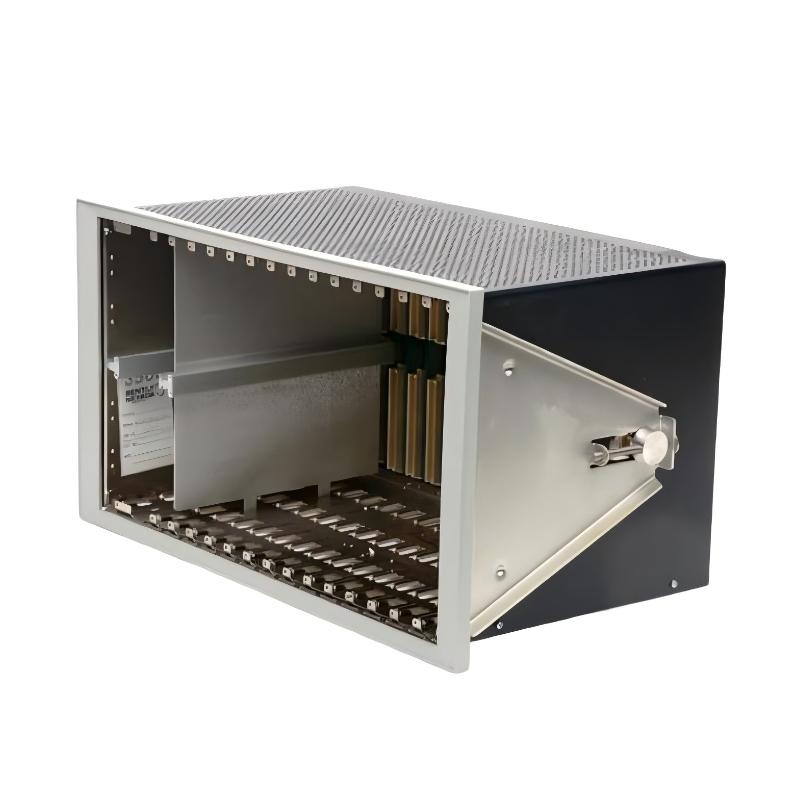

Bently Nevada 3500/05-01-00-00-01 3500/05 System Rack

Applications

The Bently Nevada 3500/05-01-00-00-01 System Rack is engineered to provide a secure and organized platform for 3500 Series monitoring modules.
Typical applications include:

• Housing multiple 3500 Series modules in industrial monitoring systems

• Centralizing I/O connections for machinery protection and condition monitoring

• Facilitating installation and maintenance in power plants, chemical, and oil & gas facilities

• Providing a modular solution for vibration, speed, and process monitoring modules

• Enabling easy system expansion and reconfiguration

Advantages

• Supports up to 14 half-height modules in a compact 19-inch rack

• Rigid industrial-grade construction ensures stability and longevity

• Optimized layout for efficient airflow and cooling of installed modules

• Easy module installation and removal for minimal maintenance downtime

• Organized cable management simplifies wiring and reduces installation errors

• Compatible with the entire 3500 Series module line

• Lightweight yet durable, enhancing portability and installation flexibility

• Professional rack design provides a clean and structured monitoring system setup

FAQs

1. How many modules can the 3500/05 System Rack accommodate?
The rack supports up to 14 half-height 3500 Series modules.

2. Is the rack compatible with full-height modules?
No, it is specifically designed for half-height modules only.

3. What rack size standard does it follow?
It is a 19-inch standard industrial rack.

4. Can modules be added or removed while the system is powered?
No, modules should be installed or removed when the system is powered down.

5. Does the rack provide any built-in cooling?
The rack allows for natural airflow but does not include active cooling.

6. Is the rack suitable for high-vibration environments?
Yes, it is designed to withstand typical industrial vibration and mechanical stress.

7. Can the rack be mounted horizontally or vertically?
It is intended for horizontal installation in standard 19-inch cabinets.

8. Are connectors included in the rack for module power and signal?

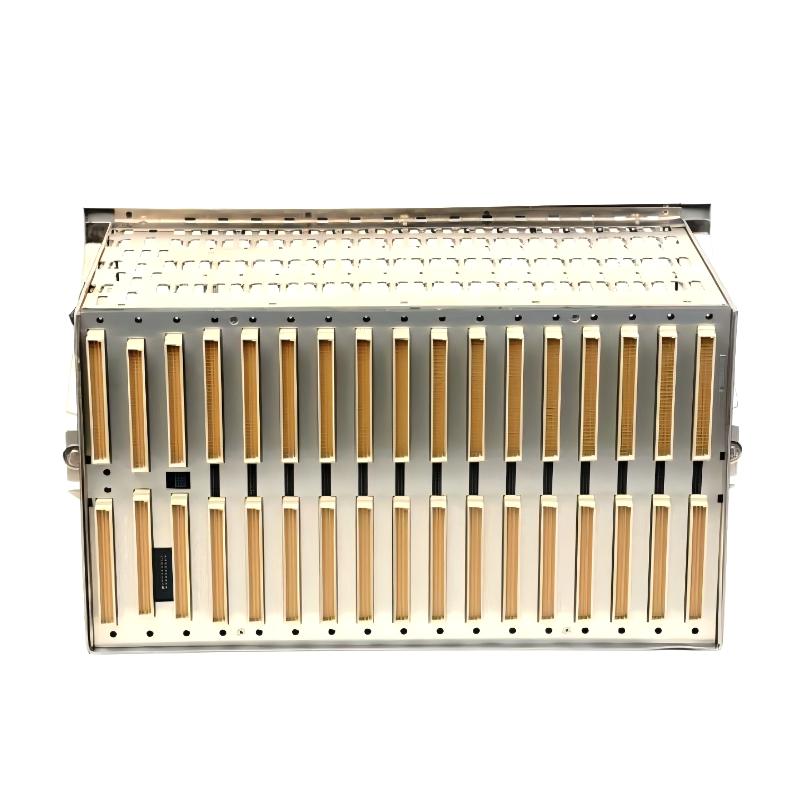

The rack provides slots and guides; module power and signal are connected via backplanes.

9. Is the rack compatible with previous Bently Nevada 3500 modules?
Yes, it supports all half-height 3500 Series modules.

10. What materials are used in the rack construction?
The rack is made of industrial-grade steel for durability and long-term reliability.
