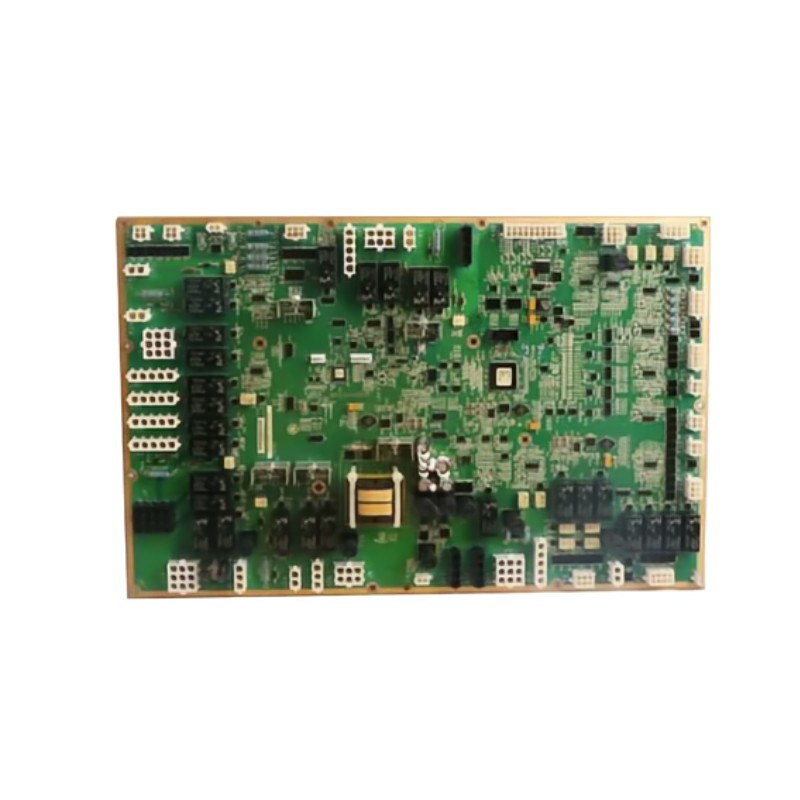

The GE IS215WETAH1BB is a high‑performance Ethernet Adapter and Enhanced Network Interface Module developed for the GE Mark VI Speedtronic control platform. Designed to bridge the VMEbus with robust Ethernet field networks, this module delivers deterministic, high‑throughput communication between central controllers and distributed devices. With enhanced networking capabilities and ruggedized industrial construction, the IS215WETAH1BB provides reliable connectivity in demanding environments such as power generation plants, process automation systems, and complex industrial control applications.

Technical Specifications

Feature	Specification
Model	IS215WETAH1BB
Module Type	VME Ethernet Adapter & Enhanced Network Interface Module
Series	Mark VI Speedtronic
Network Standard	IEEE 802.3 Ethernet
Communication Interface	Dual Ethernet ports (RJ45)
Bus Interface	32‑bit VMEbus
Function	Enhanced Ethernet communications adapter for distributed field networks
Operating Voltage	+5 VDC (via VME backplane)
Operating Temperature	-30°C to 65°C
Storage Temperature	-40°C to 85°C
Dimensions (L × W × H)	330 × 100 × 200 mm
Weight	1.75 kg
Mounting	Standard 6U VME Rack

Recommended Related Models

GE IS215WETAH1BA – Standard Ethernet Adapter & Network Interface
GE IS215WEPAH1AB – Power & Ethernet communication interface
GE IS215WEPAH2AB – Enhanced Ethernet power adapter communication module
GE IS215VCMIH2B – VME Bus Master communication interface

Popular GE Models

GE IS220PTURH1B Turbine I/O Module
GE IS200VVIBH1B Vibration Monitoring Board
GE IS200IGDMH1B Gate Driver Module

Applications

High‑speed Ethernet communication for industrial automation systems
Distributed field network integration with GE Mark VI controllers
Power generation plant automation networking
Real‑time communication for process control and monitoring

Advantages

Dual High‑Speed Ethernet Ports: Provides increased network capacity and segmented communication paths
Deterministic Industrial Ethernet: Compliant with IEEE 802.3 for reliable real‑time data transfer
Enhanced Connectivity: Supports dual network segments for field device communication
Native Mark VI Integration: Seamless compatibility with VMEbus architecture and GE controllers
Rugged Industrial Design: Withstands challenging industrial environments for long‑term reliability

Technical FAQs

What is the main purpose of the IS215WETAH1BB?
It serves as an enhanced Ethernet adapter and network interface for GE Mark VI control systems.
Which Ethernet standard does it support?
IEEE 802.3 Ethernet for industrial communication.
How many Ethernet ports does this module have?
Two RJ45 Ethernet ports for dual network connectivity.
What is the operating voltage requirement?
+5 VDC supplied via the VME backplane.
What operating temperatures can it withstand?
It supports continuous operation from -30°C to 65°C.
What are the physical dimensions of the module?
330 × 100 × 200 mm (L × W × H).
How much does the module weigh?
Approximately 1.75 kg.
Is this suitable for real‑time field communication?
Yes, it supports deterministic Ethernet networking ideal for control systems.
Can this module handle multiple network segments?
Yes, dual Ethernet ports allow segmented field networks.
Is the module compatible with GE Mark VI control racks?
Yes, it is specifically designed for seamless integration with VMEbus‑based Mark VI systems.
