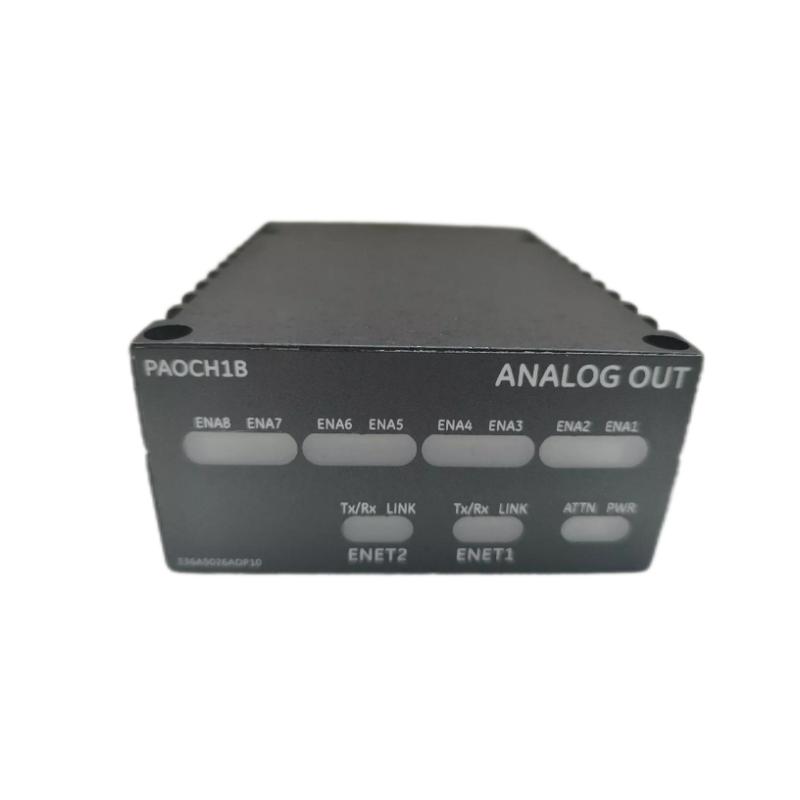

The GE IS220PAOCH1B Analog Output Module is a precision-engineered I/O pack developed for the Mark VIe and Mark VIeS control platforms. Designed to convert digital control commands into stable analog signals, this module plays a critical role in controlling actuators, valves, and other field devices across complex industrial processes.

Engineered for high-demand environments such as turbine control and energy systems, the IS220PAOCH1B delivers consistent signal integrity, advanced diagnostics, and seamless integration. Its robust architecture supports continuous operation, helping engineers maintain system accuracy, uptime, and operational safety in mission-critical applications.

Technical Specifications

Parameter	Specification
Model	IS220PAOCH1B
Module Type	Analog Output Module
Compatible Systems	Mark VIe / Mark VIeS
Output Channels	6–8 channels (configurable)
Output Signal Range	0–20 mA / 0–10 VDC
Resolution	12-bit / up to 16-bit (depending on configuration)
Accuracy	±0.5%
Power Supply	24 V DC
Power Consumption	≤ 5.3 W
Communication Protocol	Modbus RTU / Ethernet
Isolation	Channel-to-channel galvanic isolation
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +70°C
Protection Rating	IP54 / NEMA 12
Dimensions (L×W×H)	121 × 42 × 83 mm
Weight	2.0 kg

Recommended Related Models

IS220PAICH1A – Analog Input Module
IS220PDOAH1A – Discrete Output Module
IS220PDIAH1A – Discrete Input Module
IS220PSVOH1A – Servo Control Module
IS220UCSAH1A – Controller Module

Commonly Used GE Mark VIe Modules

IS220PAOCH1A
IS220YDOAS1A
IS220YDIAS1A
IS220PPROH1A
IS220PTCCH1A
IS220PRTDH1A

Application Areas

The IS220PAOCH1B is widely applied in industries where precise analog control is essential:

Gas and steam turbine control systems
Power generation plants and substations
Oil & gas production and refining
Chemical processing facilities
Industrial automation and heavy machinery control

Its ability to maintain stable output signals ensures accurate modulation of pressure, flow, temperature, and other critical process variables.

Key Advantages

High Signal Accuracy – Delivers precise analog outputs for sensitive control loops
Industrial Reliability – Built for harsh environments with wide temperature tolerance
Flexible Output Options – Supports both current and voltage output standards
Advanced Diagnostics – Real-time monitoring improves maintenance efficiency
Hot-Swappable Design – Minimizes downtime during module replacement
Seamless System Integration – Fully compatible with GE Mark VIe architecture

Technical FAQs

1. What is the main function of IS220PAOCH1B?
It converts digital signals from the controller into analog outputs for field devices.

2. How many output channels are available?
Typically 6 to 8 channels depending on system configuration.

3. What signal types are supported?
Standard industrial outputs such as 0–20 mA and 0–10 V.

4. Is the module suitable for hazardous environments?
Yes, it supports industrial certifications and is designed for demanding conditions.

5. What communication protocols are used?
It supports Modbus RTU and Ethernet-based communication.

6. Can the module be replaced without shutting down the system?
Yes, it supports hot-swapping for reduced downtime.

7. What is the operating temperature range?
Approximately -30°C to +65°C.

8. Does it provide channel isolation?
Yes, each channel includes galvanic isolation for signal integrity.

9. What industries typically use this module?
Power generation, oil & gas, and industrial automation sectors.

10. What makes this module a preferred choice?
Its combination of precision, durability, diagnostics, and seamless integration into Mark VIe systems.
