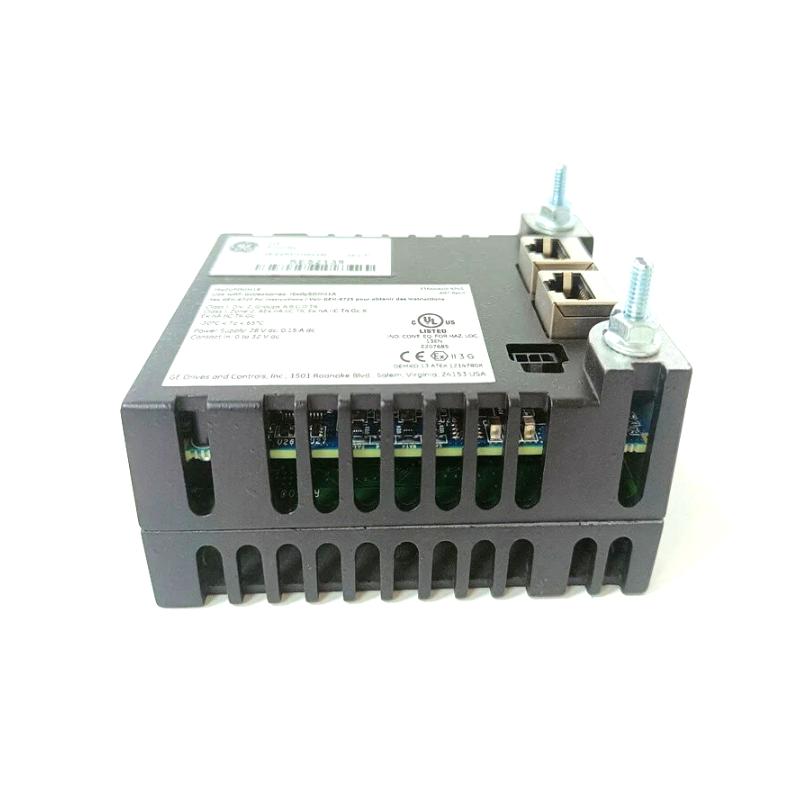

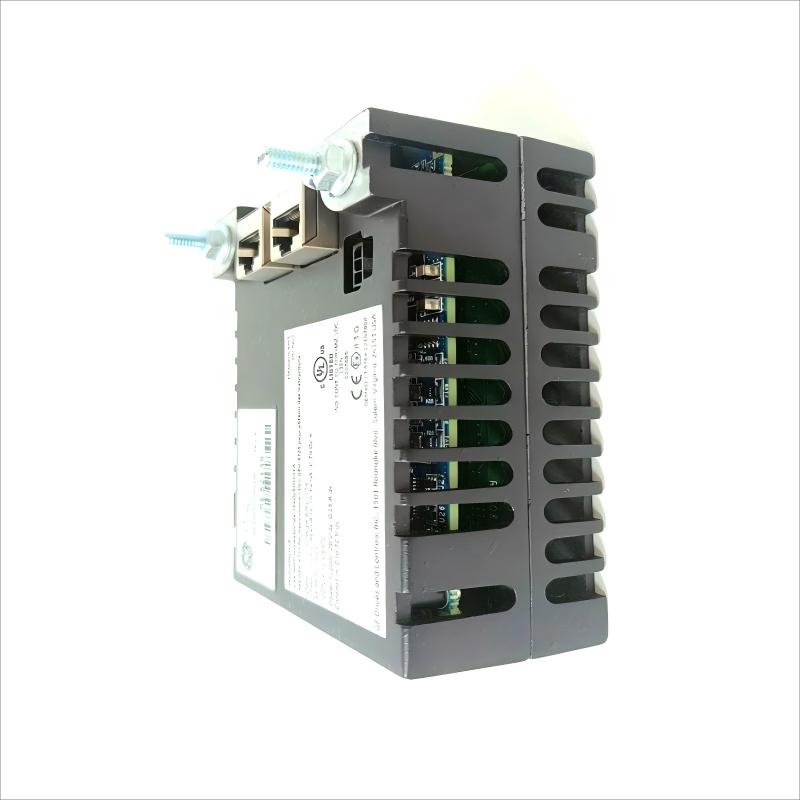

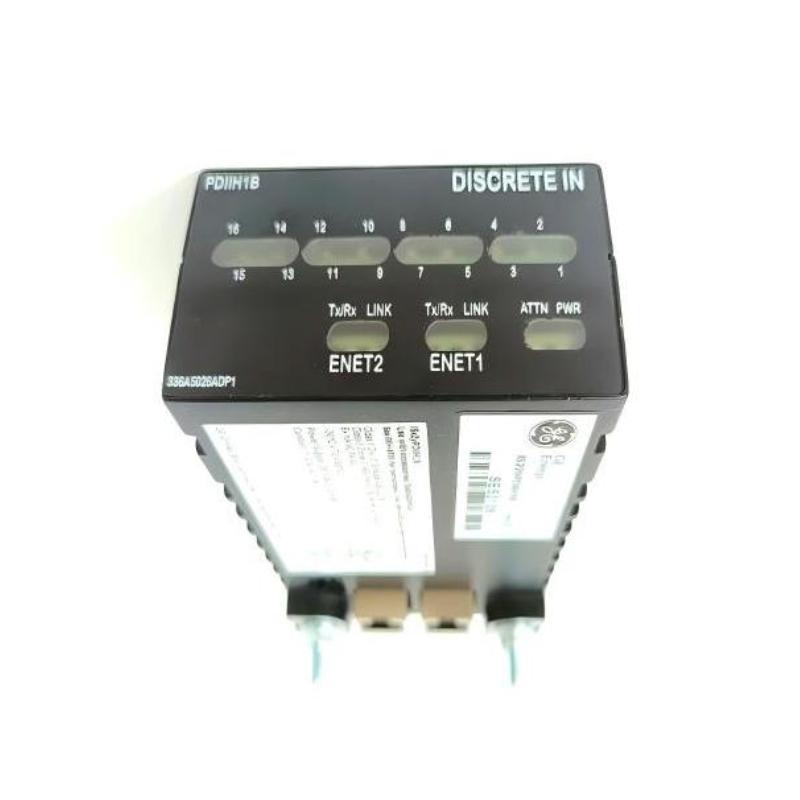

GE IS220PDIIH1B Discrete Input/Output Module for Mark VIe Control System
GE IS220PDIIH1B Discrete Input/Output Module for Mark VIe Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS220PDIIH1B Product Origin: USA Product Dimensions:125 × 83 × 42 mm Product Weight:0.85 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IS220PDIIH1B is a high-performance discrete input/output (I/O) module tailored for the Mark VIe and Mark VIeS control systems. It is engineered to handle precise digital signal acquisition and control, bridging field devices such as switches, relays, and sensors to the control logic with exceptional reliability.
Designed for mission-critical industrial environments, this module delivers fast response times, robust electrical isolation, and built-in diagnostics. Its rugged construction ensures dependable performance even under high electromagnetic interference (EMI) and extreme environmental conditions, making it ideal for power generation, oil & gas, and complex automation applications.
Technical Specifications
Parameter
Specification
Model
IS220PDIIH1B
Module Type
Discrete Input/Output Module
System Compatibility
Mark VIe / Mark VIeS
Digital Inputs
32 channels (24 V DC)
Digital Outputs
16 channels (relay type)
Output Rating
Up to 2 A @ 250 VAC / 3 A @ 30 VDC
Input Response Time
< 1 ms
Output Switching Time
< 10 ms
Isolation
Optical / Channel-to-channel
Power Supply
24 V DC
Power Consumption
≤ 10 W
Communication Interface
Dual Ethernet (IONet / Modbus)
Operating Temperature
-40°C to +70°C
Storage Temperature
-50°C to +85°C
Protection Rating
IP20
Dimensions (L×W×H)
125 × 83 × 42 mm
Weight
0.85 kg
Recommended Companion Models
IS220PDIAH1B – Discrete Input Module
IS220PDOAH1B – Discrete Output Module
IS220PAOCH1B – Analog Output Module
IS220PAICH1A – Analog Input Module
IS220UCSAH1A – Controller Module
Popular GE Mark VIe Modules
IS220YDIAS1A
IS220YDOAS1A
IS220PPROH1A
IS220PRTDH1A
IS220PTCCH1A
IS220PSVOH1A
Application Areas
The IS220PDIIH1B module is ideal for applications requiring high channel density, fast digital processing, and reliable signal isolation:
Turbine control and monitoring systems
Power plant distributed control systems
Oil & gas process automation
Industrial machinery automation
Safety interlock and emergency shutdown systems
Its combined input/output capability reduces cabinet footprint while maintaining precise, real-time digital signal management. (controlplc.com)
Key Advantages
High-Density Digital I/O – Supports large numbers of inputs and outputs on a single module
Fast Response and Switching – Sub-millisecond input detection and rapid output activation
Robust Isolation – Protects against electrical noise, surges, and cross-talk between channels (controlplc.com)
Dual Ethernet Communication – Ensures redundancy and high system availability
Compact and Rugged Design – Space-saving module suitable for panel installation
Advanced Diagnostics – Real-time monitoring simplifies troubleshooting and maintenance
Technical FAQs
1. What is the main function of IS220PDIIH1B?
It manages discrete inputs and outputs, allowing digital field devices to communicate with the Mark VIe control system.
2. How many digital input channels are available?
32 discrete input channels, ideal for high-density control applications. (controlplc.com)
3. How many output channels does it provide?
16 relay-type outputs capable of switching industrial loads.
4. What is the input voltage range?
0–32 V DC, nominally 24 V DC.
5. Does it provide electrical isolation?
Yes, optical isolation between channels ensures noise immunity and signal integrity.
6. Can the module operate in harsh conditions?
Yes, it supports -40°C to +70°C operating temperature and up to -50°C storage temperature. (controlplc.com)
7. What is the response time of digital inputs?
Less than 1 ms for fast detection of state changes.
8. Are outputs fast-switching?
Yes, typical output switching time is under 10 ms.
9. What industries typically use this module?
Power generation, oil & gas, heavy industry, and automated manufacturing.
10. Why choose IS220PDIIH1B?
Its high I/O density, fast performance, strong electrical isolation, and dual Ethernet redundancy make it a reliable choice for critical control systems.
