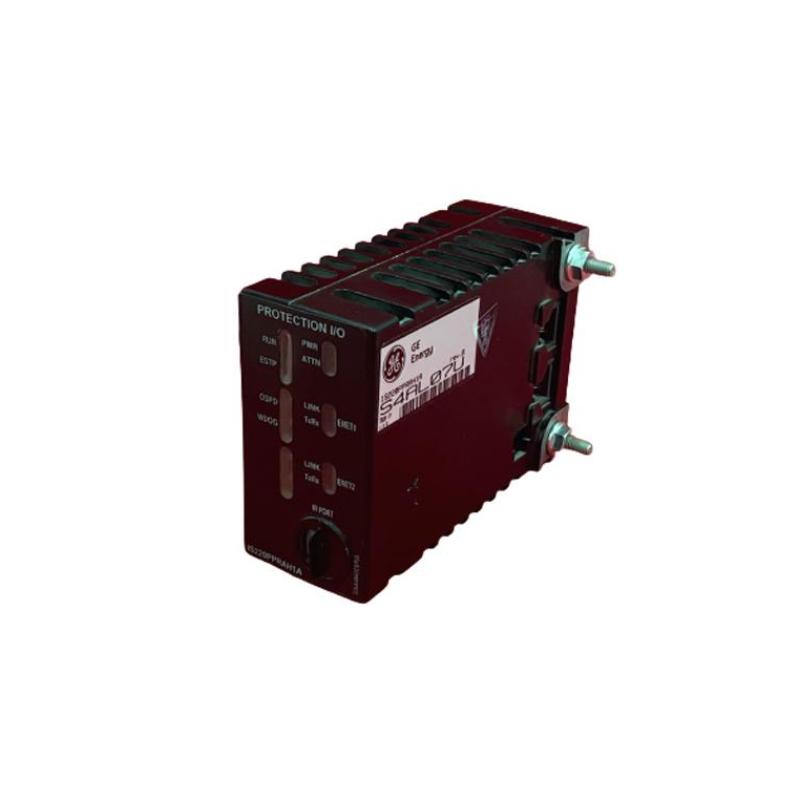

The GE IS220PPRAH1A is a specialized Emergency Turbine Protection I/O Module engineered for the Mark VIe and Mark VIeS control systems. Unlike standard I/O packs, this module is purpose-built for critical turbine safety protection, providing an independent backup layer for overspeed protection and trip logic.

Designed for high-integrity applications, the IS220PPRAH1A operates as part of a triple modular redundant (TMR) protection architecture, ensuring continuous monitoring and rapid response to abnormal turbine conditions. With high-speed processing, dual Ethernet communication, and dedicated protection logic, it significantly enhances operational safety and system reliability in mission-critical environments.

Technical Specifications

Parameter	Specification
Model	IS220PPRAH1A
Module Type	Emergency Turbine Protection I/O Module
System Compatibility	Mark VIe / Mark VIeS
Input Channels	16 channels
Input Voltage Range	0–32 V DC / ±15 V speed signals
Power Supply	28 V DC (nominal)
Power Consumption	≤ 15 W
Communication Interface	Dual Ethernet (IONet / Modbus TCP/IP)
Processor	High-speed embedded processor
Protection Function	Overspeed protection, trip monitoring, watchdog
Redundancy	TMR (Triple Modular Redundant) support
Operating Temperature	-20°C to +70°C
Mounting	Surface mount with terminal board integration
Dimensions (L×W×H)	160 × 160 × 120 mm
Weight	0.8 kg

Recommended Related Models

IS220PPROH1A – Turbine Protection Module
IS220PPDAH1B – Power Distribution Feedback Module
IS220PDIAH1B – Discrete Input Module
IS220PDOAH1B – Discrete Output Module
IS220UCSAH1A – Controller Module

Popular GE Mark VIe Modules

IS220PDIOH1B
IS220PDIIH1B
IS220YDIAS1A
IS220YDOAS1A
IS220PAOCH1B
IS220PAICH1A

Application Areas

The IS220PPRAH1A is specifically designed for safety-critical turbine protection systems, including:

Gas and steam turbine overspeed protection
Emergency shutdown (ESD) systems
Power generation plants and combined-cycle facilities
Oil & gas turbine-driven compressors
High-risk industrial rotating equipment

By operating independently from the main control system, it ensures that even in the event of a controller failure, the turbine protection layer remains active and responsive.

Key Advantages

Independent Protection Layer – Functions as a backup safety system separate from primary control
TMR Architecture Support – Enables high-integrity, fault-tolerant turbine protection
High-Speed Processing – Rapid detection of overspeed and abnormal conditions
Dual Ethernet Communication – Ensures reliable and redundant data transmission
Advanced Diagnostics – Built-in watchdog and health monitoring improve reliability
Industrial-Grade Durability – Designed for continuous operation in harsh environments

Technical FAQs

1. What is the main function of IS220PPRAH1A?
It provides emergency turbine protection, including overspeed detection and trip control.

2. How is it different from standard I/O modules?
It is a safety-critical module with independent protection logic rather than general I/O processing.

3. Does it support redundancy?
Yes, it is designed for TMR (Triple Modular Redundant) systems.

4. What type of signals does it process?
Digital inputs, voltage signals, and speed sensor inputs for turbine monitoring.

5. What is the typical operating voltage?
Approximately 28 V DC.

6. Can it operate independently of the main controller?
Yes, it provides an independent backup protection function.

7. What communication protocols are supported?
Ethernet-based IONet and Modbus TCP/IP.

8. Is it suitable for hazardous environments?
Yes, when used with approved terminal boards, it can be deployed in hazardous locations.

9. What industries commonly use this module?
Power generation, oil & gas, and heavy industrial turbine applications.

10. Why choose IS220PPRAH1A?
Because it delivers high-integrity protection, redundancy support, and reliable turbine safety—making it essential for critical control systems.
