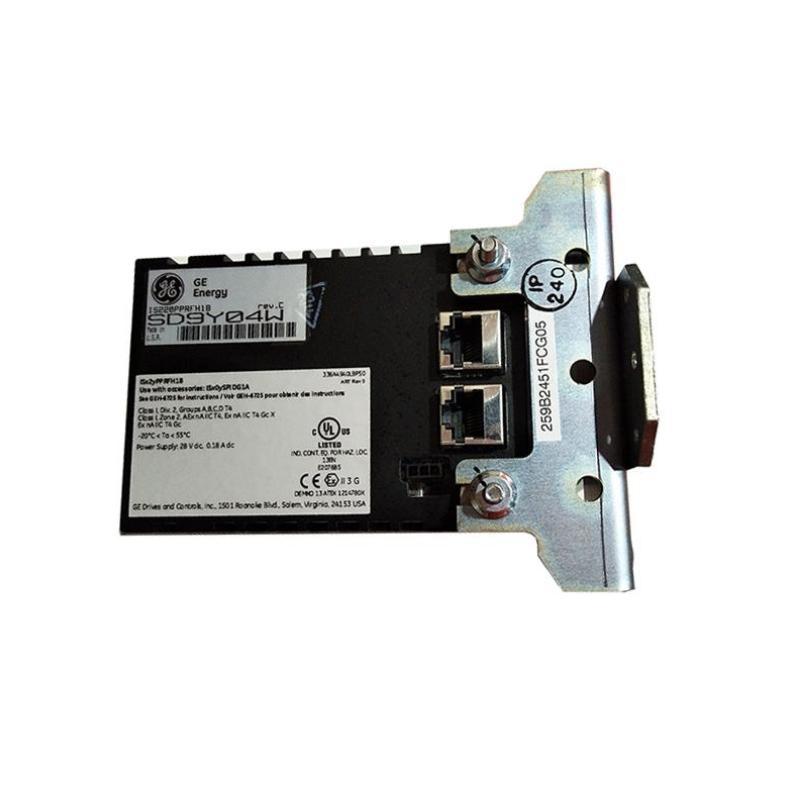

GE IS220PPRFH1A PROFIBUS Master Gateway Module for Mark VIe Control System
GE IS220PPRFH1A PROFIBUS Master Gateway Module for Mark VIe Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS220PPRFH1A Product Origin: USA Product Dimensions:160 × 160 × 120 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

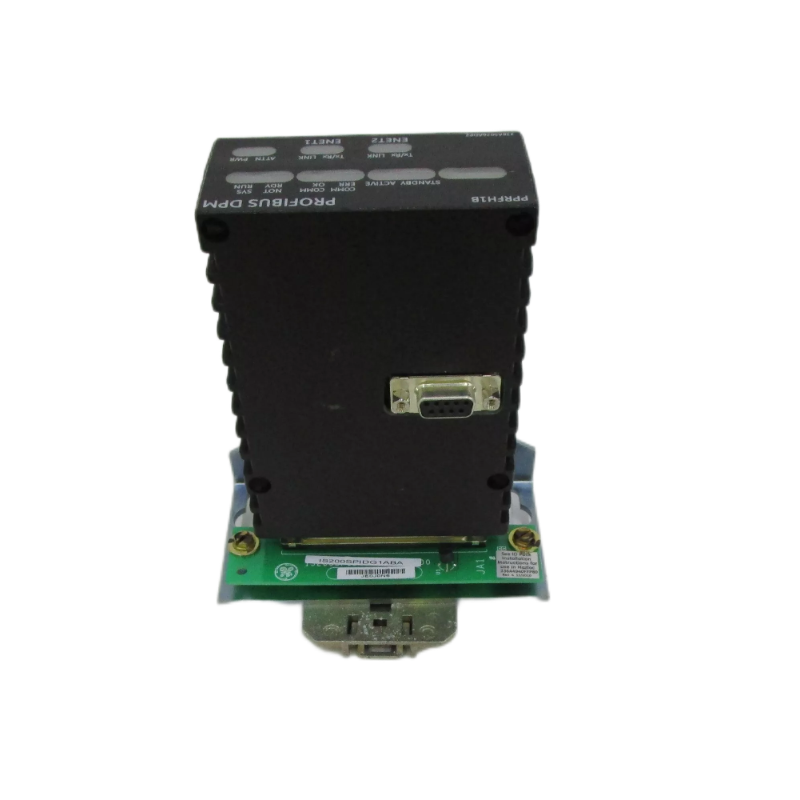

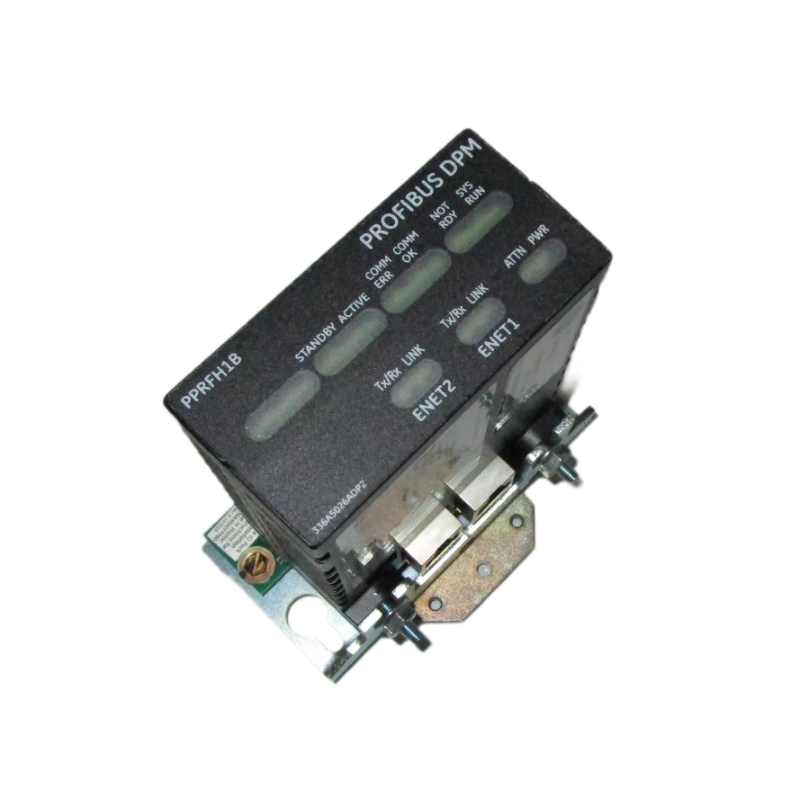

The GE IS220PPRFH1B is a high-performance PROFIBUS Master Gateway Module engineered for seamless communication within Mark VIe and Mark VIeS control systems. Designed to act as a central communication bridge, it connects PROFIBUS field devices with the turbine control network, enabling real-time, deterministic data exchange across complex industrial architectures.
Built for high-availability environments, the IS220PPRFH1B supports large-scale distributed I/O networks with advanced redundancy options. Its hot-swappable design, dual Ethernet capability, and industrial-grade durability make it a preferred solution for engineers who demand both scalability and uninterrupted operation in critical systems.
Technical Specifications
Parameter
Specification
Model
IS220PPRFH1B
Module Type
PROFIBUS Master Gateway Module
System Compatibility
Mark VIe / Mark VIeS
PROFIBUS Standard
DP-V0 Class 1 Master
Communication Interface
RS-485 (COM-C module)
Transmission Rate
9.6 kbps to 12 Mbps
Max Slave Devices
Up to 125 devices
Data Capacity per Slave
244 bytes input / 244 bytes output
Power Supply
28 V DC (nominal)
Input Current
Max 0.18 A
Communication Ports
Dual Ethernet (redundant support)
Redundancy Options
Single, Dual Ethernet, Hot-Backup
Operating Temperature
-20°C to +55°C
Certifications
ATEX Zone 2, UL
Mounting
I/O pack with terminal board integration
Dimensions (L×W×H)
110 × 60 × 67 mm
Weight
0.14 kg
Recommended Related Models
IS220PPRFH1A – PROFIBUS Gateway Module
IS220PIOAH1A – ARCNET Interface Module
IS220PDIOH1B – Discrete Input/Output Module
IS220PDOAH1B – Discrete Output Module
IS220UCSAH1A – Controller Module
Popular GE Mark VIe Modules
IS220PDIAH1B
IS220PDIIH1B
IS220PPDAH1B
IS220PPRAH1A
IS220YDIAS1A
IS220YDOAS1A
Application Areas
The IS220PPRFH1A is designed for applications where fieldbus communication and distributed control integration are essential:
Power generation systems (gas & steam turbines)
Oil & gas processing and pipeline automation
Industrial distributed control systems (DCS)
Manufacturing lines with PROFIBUS networks
Hybrid systems integrating legacy and modern devices
By enabling direct communication between PROFIBUS devices and Mark VIe controllers, it simplifies system architecture and improves overall operational efficiency.
Key Advantages
Seamless PROFIBUS Integration – Acts as a Class 1 master, mapping field device data into the control system
High-Speed Communication – Supports up to 12 Mbps for real-time industrial data exchange
Scalable Network Architecture – Connects over 100 slave devices with high data capacity
Reliable Industrial Design – Operates in harsh environments with stable performance
Flexible Redundancy Options – Supports dual Ethernet and redundant configurations
Integrated Diagnostics – LED indicators and system feedback simplify troubleshooting
Technical FAQs
1. What is the main function of IS220PPRFH1A?
It serves as a PROFIBUS master gateway, enabling communication between field devices and the Mark VIe control system.
2. What type of PROFIBUS protocol does it support?
It supports PROFIBUS DP-V0 and DP-V1 Class 1 master communication.
3. How many devices can it connect?
Up to approximately 124–125 PROFIBUS slave devices.
4. What is the maximum communication speed?
Up to 12 Mbps depending on network configuration.
5. What voltage does the module require?
Typically 28 V DC, within a range of 27.4–28.6 V DC.
6. Can it be used in hazardous environments?
Yes, it is certified for both hazardous and non-hazardous locations.
7. How is the module installed?
It is mounted as an I/O pack and connected to a compatible terminal board such as SPIDG1A.
8. Does it support redundancy?
Yes, it can be configured with redundant Ethernet and I/O pack setups.
9. What industries typically use this module?
Power generation, oil & gas, and industrial automation sectors.
10. Why choose IS220PPRFH1A?
Because it delivers high-speed, reliable PROFIBUS integration, enabling scalable and efficient communication in complex control systems.
