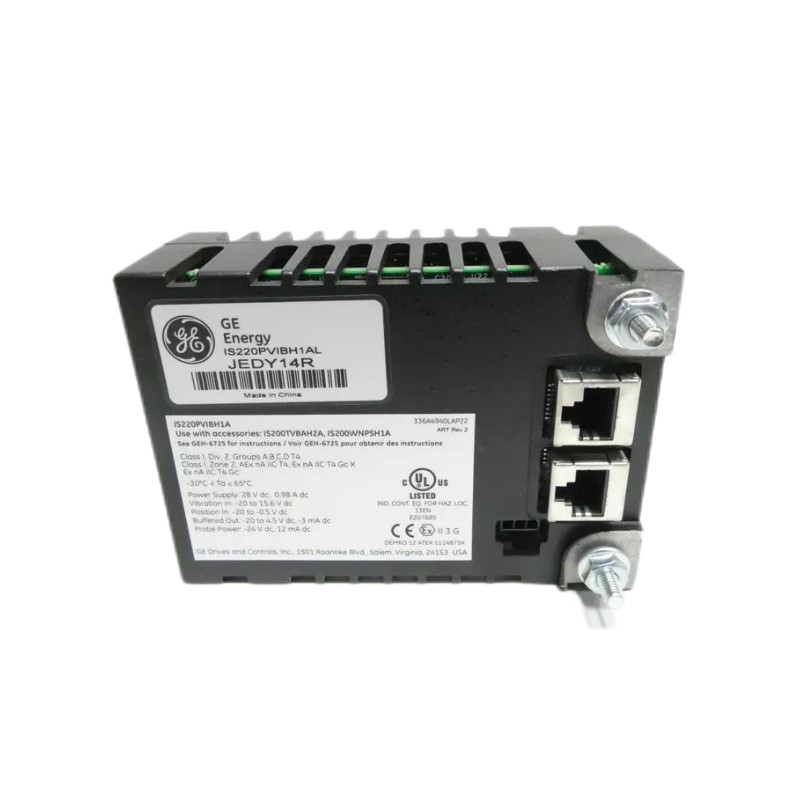

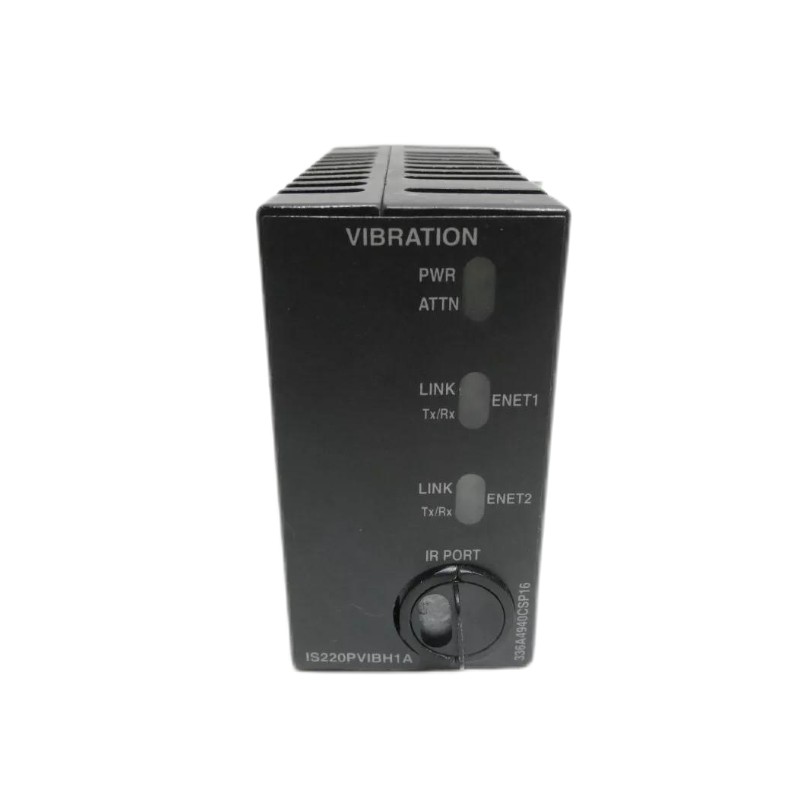

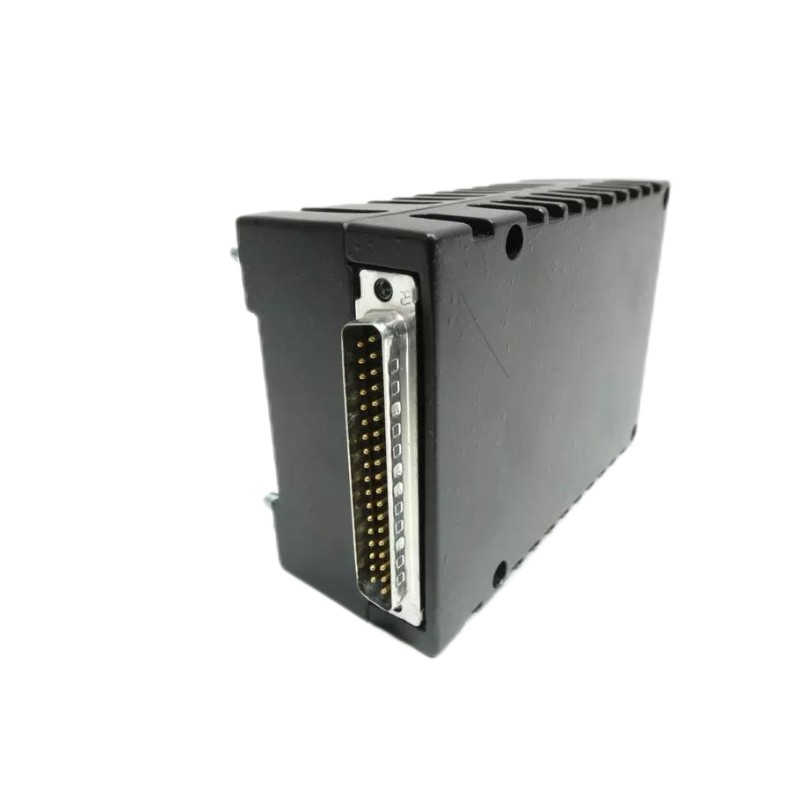

GE IS220PVIBH1A Vibration Monitoring I/O Module for Mark VIe Control System
GE IS220PVIBH1A Vibration Monitoring I/O Module for Mark VIe Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS220PVIBH1A Product Origin: USA Product Dimensions:121 × 42 × 83 mm Product Weight:0.38 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IS220PVIBH1A is a high‑performance vibration monitoring I/O module designed for the Mark VIe Speedtronic turbine control system. This module plays a critical role in real‑time vibration acquisition and analysis, supporting predictive maintenance, fault detection, and rotating machinery protection in mission‑critical industrial environments. Its advanced signal processing, multiple vibration and proximity channels, and robust communication make it ideal for turbine, compressor, and generator health monitoring.
Technical Specifications
Parameter
Specification
Model
IS220PVIBH1A
Module Type
Vibration Monitoring I/O Module
System Compatibility
GE Mark VIe / Mark VIeS
Input Channels
12–13 vibration and proximity probe channels
Supported Sensors
IEPE accelerometers, proximity probes
Measurement Range
0–50 g acceleration / 0–20 mm displacement
Resolution
24‑bit A/D conversion
Accuracy
±0.2 % full scale
Frame Rates
3.125, 6.25, 12.5, 25, 50, 100 Hz
Probe Power
–24 V DC, 12 mA per channel
Isolation Rating
2 kVrms channel‑to‑channel
Operating Temperature
–30 °C to +65 °C
Communication Interface
Dual 100 Mbps Ethernet (redundant capable)
Mounting
Mark VIe I/O chassis slot
Dimensions (L × W × H)
121 × 42 × 83 mm
Weight
0.38 kg
Typical electrical performance and rugged industrial enclosure support continuous operation in harsh environments.
The IS220PVIBH1A module is widely deployed in systems that require high‑fidelity vibration monitoring and machine health assessment:
Gas and steam turbine vibration analysis
Rotating machinery condition monitoring
Generator and compressor vibration protection
Predictive maintenance programs
Integrated alarm and shutdown logic based on vibration thresholds
Its ability to acquire and transmit real‑time multi‑channel vibration data helps operators anticipate mechanical wear and prevent unscheduled downtime.
Key Advantages
Multi‑Channel Vibration Monitoring – Supports up to 13 vibration and proximity inputs simultaneously.
High‑Resolution Signal Acquisition – 24‑bit analog‑to‑digital conversion provides precise measurement.
Industrial‑Grade Design – Durable enclosure and isolation make it suitable for harsh environments.
Real‑Time Diagnostics – Provides continuous feedback for predictive protection logic.
Ease of Integration – Direct support for vibration terminal boards and GE I/O network.
Technical FAQs
1. What is the primary function of IS220PVIBH1A?
It captures and processes vibration and proximity signals from rotating machinery sensors for real‑time analysis and protection.
2. How many channels does this module support?
It supports 12–13 independent vibration and proximity sensor inputs.
3. What kinds of sensors are compatible?
IEPE accelerometers and proximity probes are supported for vibration and displacement measurement.
4. What is the typical operating temperature range?
The module operates between –30 °C and +65 °C in industrial environments.
5. What communication interface does it use?
Dual 100 Mbps Ethernet ports provide high‑speed, redundant data connections.
6. Does it support predictive maintenance applications?
Yes, it is ideal for predictive maintenance, providing early fault detection and vibration trends.
7. What frame rates are available for data acquisition?
Multiple frame rates (3.125–100 Hz) are supported depending on the application.
8. How accurate is the vibration measurement?
Measurement accuracy is typically ±0.2 % full scale with high‑resolution data.
9. Is the module hot‑swappable?
Yes — hot‑swap support allows replacement without system shutdown.
10. Why choose the IS220PVIBH1A?
Because it combines high‑channel density, precise signal conditioning, robust construction, and reliable communication for comprehensive rotating machinery monitoring.
