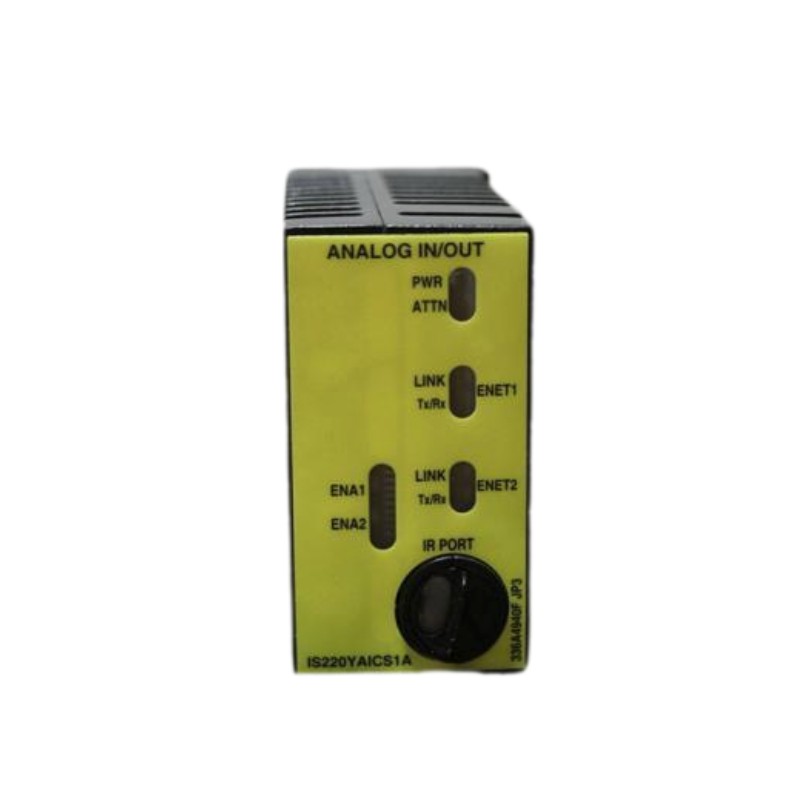

GE IS220YAICS1A Safety Analog Input Module for Mark VIe/S Control System
GE IS220YAICS1A Safety Analog Input Module for Mark VIe/S Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS220YAICS1A Product Origin: USA Product Dimensions:120 × 80 × 40 mm Product Weight:0.70 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IS220YAICS1A is a Safety‑Rated Analog Input Module designed for the GE Mark VIe / Mark VIeS turbine and process control systems. Engineered for mission‑critical signal acquisition, this module delivers high‑precision analog input performance with built‑in safety diagnostics and integrity, making it ideal for functional safety loops and safety instrumented systems (SIS). It supports a wide range of analog sensor types and is often used where rapid, accurate analog measurement is essential for system protection and control.
Technical Specifications
Parameter
Specification
Model
IS220YAICS1A
Module Type
Safety Analog Input Module
System Compatibility
GE Mark VIe / Mark VIeS
Safety Integrity Level (SIL)
SIL 2 / SIL 3 (depending on system design)
Input Channels
Up to 8 isolated analog inputs (configurable)
Supported Signal Types
4–20 mA DC, 0–10 V DC; thermocouple and RTD support (depending on configuration)
Resolution
16‑bit A/D conversion
Accuracy
±0.1 % full scale
Sampling Rate
Up to 500 Hz per channel
Isolation
Channel‑to‑channel galvanic isolation
Communication Interface
Dual Ethernet I/O network ports
Power Supply
24–28 V DC
Power Consumption
Typical industrial low‑power design
Operating Temperature
–40 °C to +70 °C
Mounting
Mark VIe / Mark VIeS I/O rack compatible
Dimensions (L × W × H)
120 × 80 × 40 mm (approx.)
Weight
0.70 kg (approx.)
Recommended Related Modules
IS200STAIS1A / IS400STAIS1A – Safety Analog Input Terminal Boards
IS220YDIAS1A – Safety Discrete Input Module
IS220YDOAS1A – Safety Discrete Output Module
IS220UCSAH1A – Universal Controller Module
IS220PPRFH1B – PROFIBUS Master Gateway Module
Popular GE Mark VIe/S Safety Modules
IS220PDIAH1B
IS220PDIOH1B
IS220PPDAH1B
IS220PRTDH1B
IS220PSVOH1B
IS220PTURH1B
Application Areas
The IS220YAICS1A is ideal for safety‑critical analog signal acquisition and monitoring in industrial control environments:
Safety Instrumented Systems (SIS) for process plant protection
Temperature, pressure, and flow signal acquisition in turbine control
Redundant analog measurement for functional safety loops
Measurement of analog transmitter outputs in power generation
Hazard detection and safety shutdown logic in oil & gas facilities
Its SIL‑capable design and diagnostics help maintain high system availability while ensuring accurate real‑time data for safety control logic.
Key Advantages
SIL‑Rated Safety Design – Certified for SIL 2/3 safety applications, supporting regulatory compliance and fault tolerance.
High Precision Input – 16‑bit resolution and ±0.1 % accuracy ensure reliable signal readings.
Wide Signal Compatibility – Supports current, voltage, thermocouple, and RTD signals (depending on configuration).
Real‑Time Diagnostics – Continuous monitoring of channel health and sensor faults enhances safety loop performance.
Robust Industrial Reliability – Operates across a wide temperature range with galvanic isolation to resist noise and interference.
Redundancy Support – Dual Ethernet and power inputs enable use in redundant architectures to minimize risk of failure.
Technical FAQs
1. What is the primary function of the IS220YAICS1A?
It acquires and conditions analog signals from field sensors for use in safety instrumented and process control systems.
2. How many analog inputs can it support?
Typically up to 8 isolated channels, configurable for various signal types.
3. What types of signals does it accept?
Common industrial signals including 4–20 mA, 0–10 V, thermocouples, and RTDs (depending on configuration).
4. What safety certification levels does it support?
Designed for SIL 2 or SIL 3 applications when integrated with appropriate system architecture.
5. What is the typical operating temperature range?
–40 °C to +70 °C for industrial reliability.
6. Does it support redundancy?
Yes, dual Ethernet ports and redundant power support enable fail‑safe architectures.
7. What is the typical resolution of measurements?
16‑bit analog‑to‑digital conversion for high‑precision data.
8. Can it operate in hazardous environments?
When paired with certified terminal boards, it can be used in hazardous areas.
9. What industries commonly use this module?
Power generation, petrochemical, oil & gas, and large‑scale automation systems require reliable safety signal acquisition.
10. Why choose the IS220YAICS1A?
It pairs high precision, SIL‑capable safety design, and advanced diagnostics for robust, mission‑critical analog input applications.
