GE IS230SRLYH2A Relay Output Terminal Module for Mark VIe Control System
GE IS230SRLYH2A Relay Output Terminal Module for Mark VIe Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS230SRLYH2A R Product Origin: USA Product Dimensions:330 × 102 × 50 mm Product Weight:0.68 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

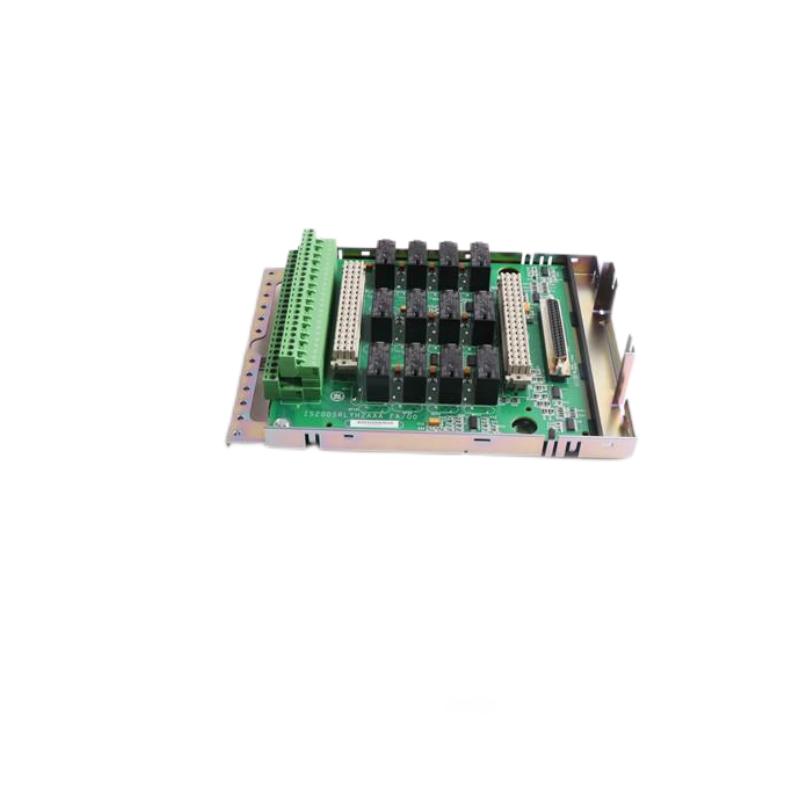

The GE IS230SRLYH2A is a rugged and compact Relay Output Terminal Module designed for integration with GE Mark VIe and Mark VIeS turbine and process control systems. This module provides discrete relay‑based output contacts that interface control logic with field devices such as alarms, annunciators, indicators, relays, and safety interlocks. Its DIN‑rail footprint and robust construction make it ideal for panel‑level control in industrial automation, power generation, and process environments where dependable switching and isolation are essential.
Engineered for high durability and clean signal separation, the IS230SRLYH2A excels in applications that require electromechanical or solid‑state relay actuation, ensuring accurate contact control with minimal electrical interference. Its modular configuration supports flexible wiring schemes and easy integration into existing Mark VIe racks or distributed control systems.
Technical Specifications
Parameter
Specification
Model
IS230SRLYH2A
Module Type
Relay Output Terminal Module
System Compatibility
GE Mark VIe / Mark VIeS
Output Contacts
8–16 SPDT relay outputs (configurable)
Contact Rating
5 A @ 250 VAC / 5 A @ 30 V DC (resistive)
Isolation
1500 Vrms channel‑to‑channel and channel‑to‑ground
Coil Voltage
24 V DC nominal
Response Time
< 10 ms (typical)
Operating Temperature
–30 °C to +65 °C
Humidity
5–95 % RH (non‑condensing)
Mounting
DIN‑rail
Communication Interface
Relay wiring to I/O packs / terminal boards
Dimensions (L × W × H)
330 × 102 × 50 mm
Weight
0.68 kg
Recommended Related Modules
IS230SNCIH2A – Discrete Input Terminal Module
IS230SNAIH2A – Analog I/O Terminal Module
IS230SNAOH2A – Analog Output Module
IS220UCSAH1A – Universal Controller Module
IS200STRLYH2A – Relay Terminal Board
Popular GE Mark VIe Modules
IS220PDIAH1B
IS220PDIOH1B
IS220PPRFH1B
IS220PPDAH1B
IS220PVIBH1A
IS220PTURH1B
Application Areas
The IS230SRLYH2A is ideal for discrete field switching and control applications, including:
Alarm and indicator contact outputs in turbine control
Safety interlocks and emergency shutdown contact actuation
Electromechanical relay drive for field devices
PLC and DCS discrete integration points
Panel wiring interfaces and local control logic
With its high contact rating and galvanic isolation, this module ensures reliable switching performance and protects control circuits from electrical noise and transients, integrating cleanly into large industrial systems.
Application Areas
The IS230SRLYH2A is ideal for discrete field switching and control applications, including:
Alarm and indicator contact outputs in turbine control
Safety interlocks and emergency shutdown contact actuation
Electromechanical relay drive for field devices
PLC and DCS discrete integration points
Panel wiring interfaces and local control logic
With its high contact rating and galvanic isolation, this module ensures reliable switching performance and protects control circuits from electrical noise and transients, integrating cleanly into large industrial systems.
Technical FAQs
1. What is the main purpose of IS230SRLYH2A?
It provides discrete relay contact outputs for field device actuation in Mark VIe control systems.
2. How many relay outputs does it support?
Typically 8–16 SPDT relay channels depending on configuration.
3. What is the contact rating?
5 A at 250 VAC or 5 A at 30 V DC (resistive loads).
4. What kind of isolation is provided?
1500 Vrms isolation between channels and to ground enhances signal reliability.
5. What is the operating temperature range?
–30 °C to +65 °C, suitable for industrial control panels.
6. Can it be mounted on DIN rails?
Yes, it features DIN‑rail mounting for easy cabinet installation.
7. What sort of devices can it drive?
Alarms, lights, relays, contactors, and other electromechanical loads.
8. Does it support redundant communication?
It interfaces through terminal boards and I/O packs; redundancy depends on system architecture.
9. How is the module integrated with Mark VIe?
It connects via terminal board wiring to the I/O network and controller.
10. Why choose IS230SRLYH2A?
Because it offers high‑capacity relay outputs with strong isolation and rugged industrial design — essential for reliable field switching in control systems.
