GE IS230IS410JPDHG1A Pack Power DIN Rail Module for Mark VIe Control System
GE IS230IS410JPDHG1A Pack Power DIN Rail Module for Mark VIe Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS230IS410JPDHG1A Product Origin: USA Product Dimensions:100 × 120 × 80 mm Product Weight:0.60 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

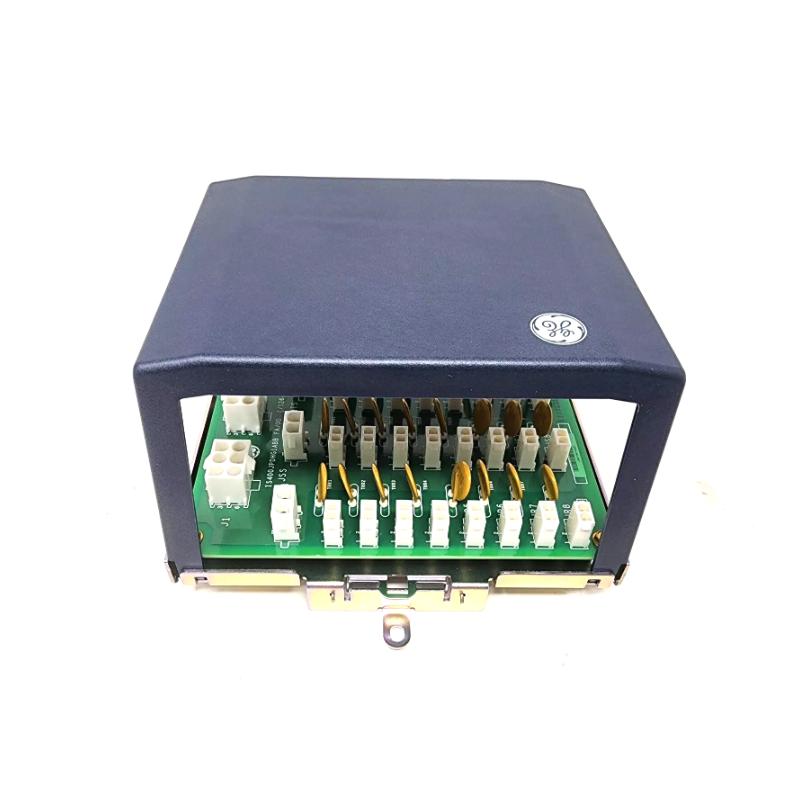

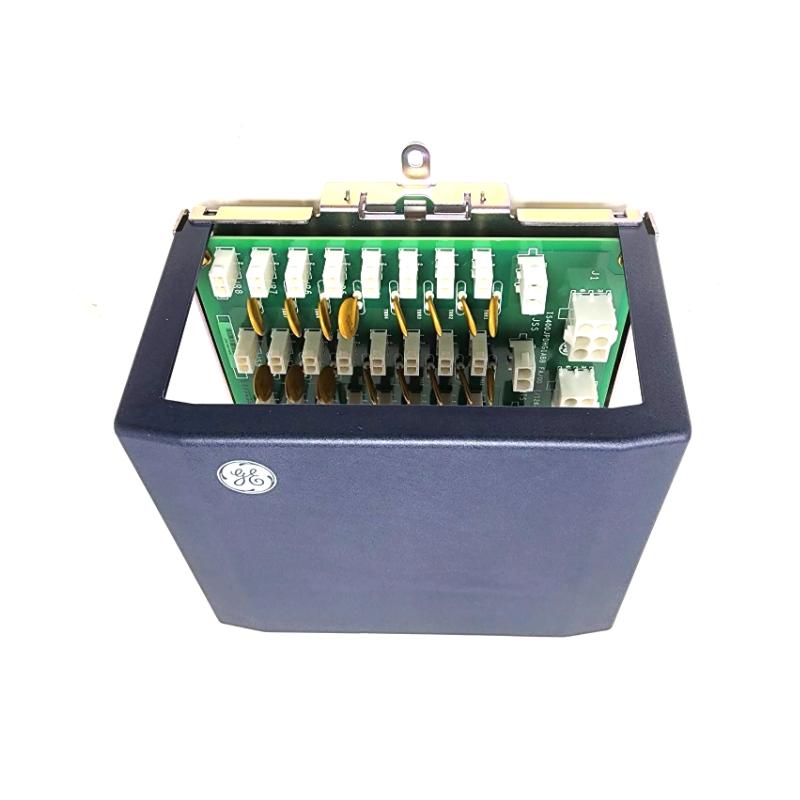

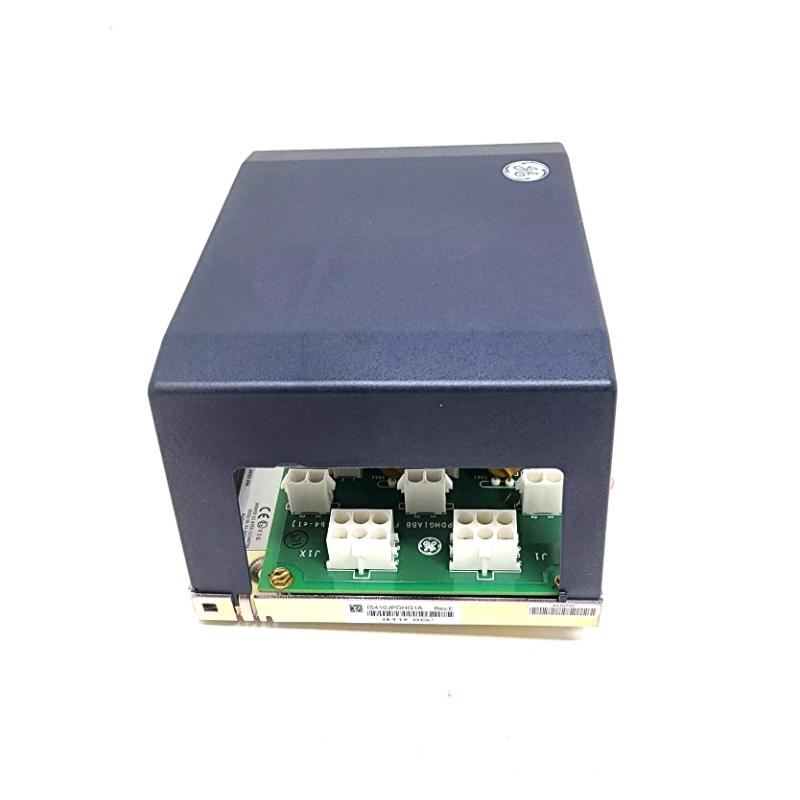

The GE IS410JPDHG1A is an industrial‑grade Pack Power DIN Rail Module that serves as a core power distribution and regulation hub within GE’s Mark VIe turbine control system architecture. It provides stable and protected 24 V DC power to downstream I/O modules, communication devices, and field sensors/actuators essential for turbine, compressor, and process control applications. Designed for harsh industrial environments, this unit simplifies power rail management and enhances system reliability through built‑in protection and redundant input capabilities.
Technical Specifications
Parameter
Specification
Model
IS410JPDHG1A
Module Type
Pack Power DIN Rail Module
System Compatibility
GE Mark VIe / Mark VIeS Speedtronic Control Systems
IS400STCIS1A – DIN Rail Terminal Board for Hazardous Locations
Popular GE Mark VIe Modules
IS220PDIAH1B
IS220PPROH1A
IS220PVIBH1A
IS230SNAOH2A
IS230SNRTH2A
IS220PRTDH1B
Application Areas
The IS410JPDHG1A is used wherever reliable low‑voltage DC distribution is required within a Mark VIe control environment:
Turbine control cabinets — for gas and steam turbines
Power generation plants — feeding control modules, I/O packs, and actuators
Industrial automation systems — supplying consistent DC power to sensors and control electronics
Field device support — feeding power for solenoids, transducers, and protection circuits
Hazardous area installations — with appropriate terminal board and enclosure integration
It ensures that critical control loops and I/O networks receive regulated power under varied load conditions, maintaining uptime and reducing the risk of voltage‑related failures.
Key Advantages
Stable Power Delivery – Regulated 24 V DC output supports multiple modules and peripherals reliably.
Redundant Input Capability – Dual input terminals can help integrate backup power sources.
Compact DIN‑Rail Design – Eases installation and wiring in control cabinets.
Wide Environmental Tolerance – Performs across broad temperature and humidity ranges.
Certified for Industrial Use – Meets global safety standards and hazardous location requirements when properly deployed.
Technical FAQs
1. What is the IS410JPDHG1A used for?
It distributes regulated 24 V DC to I/O packs and field devices in Mark VIe control systems.
2. What input voltage does it require?
18 – 30 V DC industrial standard input.
3. How much current can it deliver?
Up to 10 A continuous and 15 A peak.
4. Can it protect against wiring faults?
Yes — it includes short‑circuit, overload, and reverse polarity protection.
5. Is it suitable for power generation environments?
Yes — designed for turbine control cabinets and related automation systems.
6. How is it mounted?
On standard DIN rails for control panels.
7. What is the operating temperature range?
–30 °C to +65 °C.
8. What certifications does it carry?
CE, UL 508, Class I Division 2 (with proper enclosure).
9. Does it support redundant power inputs?
Yes, dual input terminals facilitate redundant power integration.
10. Why choose this module?
Because it combines robust industrial design with stable DC distribution and built‑in protection, making it essential for complex turbine and process control systems.
