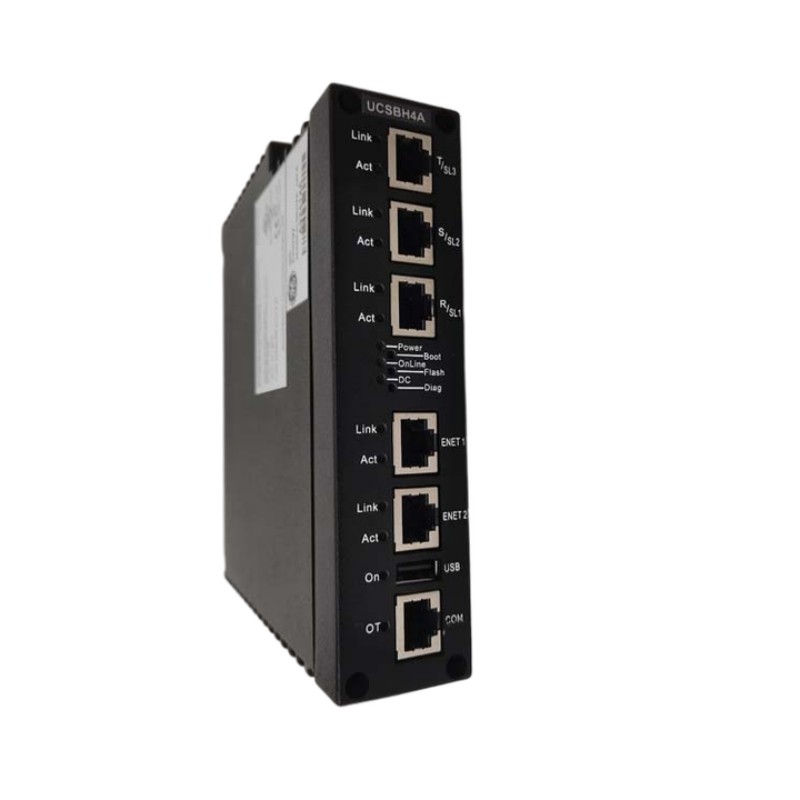

The GE IS420UCSBH3A is a next-generation UCSB Controller Module developed by General Electric (GE) to deliver powerful real-time processing within Mark VIe and Mark VIeS control systems. As a core controller, it executes high-speed logic, manages I/O communication through IONet, and ensures deterministic control for mission-critical applications such as gas turbines, steam turbines, and complex industrial automation systems.

Built with a quad-core architecture and enhanced processing capability, this model represents a significant upgrade over earlier UCSB controllers, offering higher computational performance, improved synchronization, and enhanced system reliability for modern industrial environments.

Technical Specifications

Specification	Details
Brand	GE (General Electric)
Model	IS420UCSBH3A
Module Type	UCSB Controller Module
System Compatibility	Mark VIe / Mark VIeS
Processor	Intel EP80579 Quad-Core, 1200 MHz
Memory	256 MB DDR2 SDRAM (ECC), 2 GB NAND Flash
Operating System	QNX Neutrino RTOS
Communication Interfaces	3 × IONet Ethernet (100Base-TX)
Synchronization	IEEE 1588 (≤100 µs accuracy)
Power Supply	24–28 V DC (max 32 V)
Power Consumption	~17.3 W nominal / 28.7 W peak

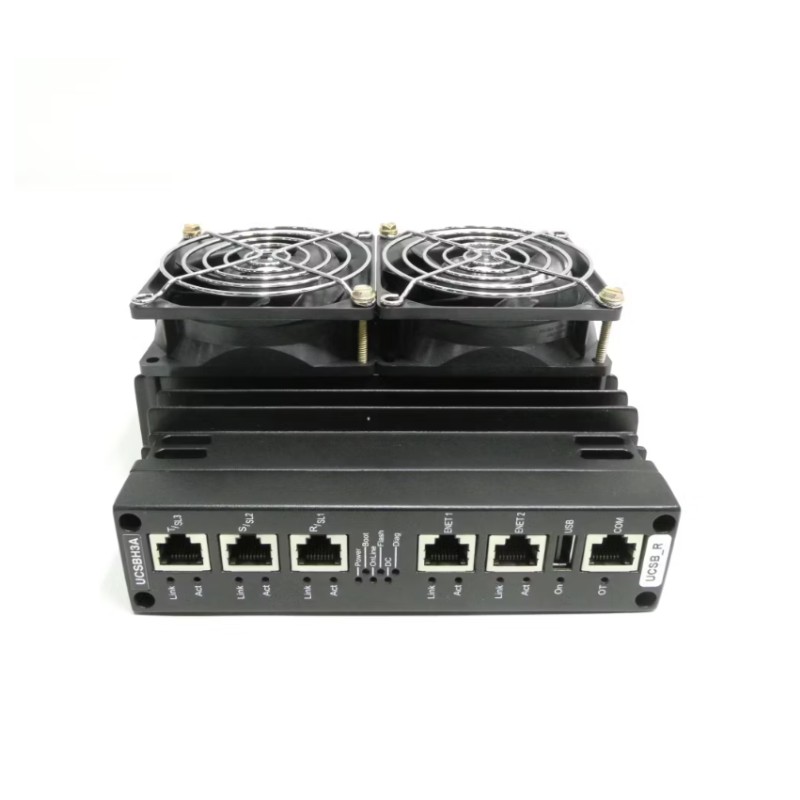

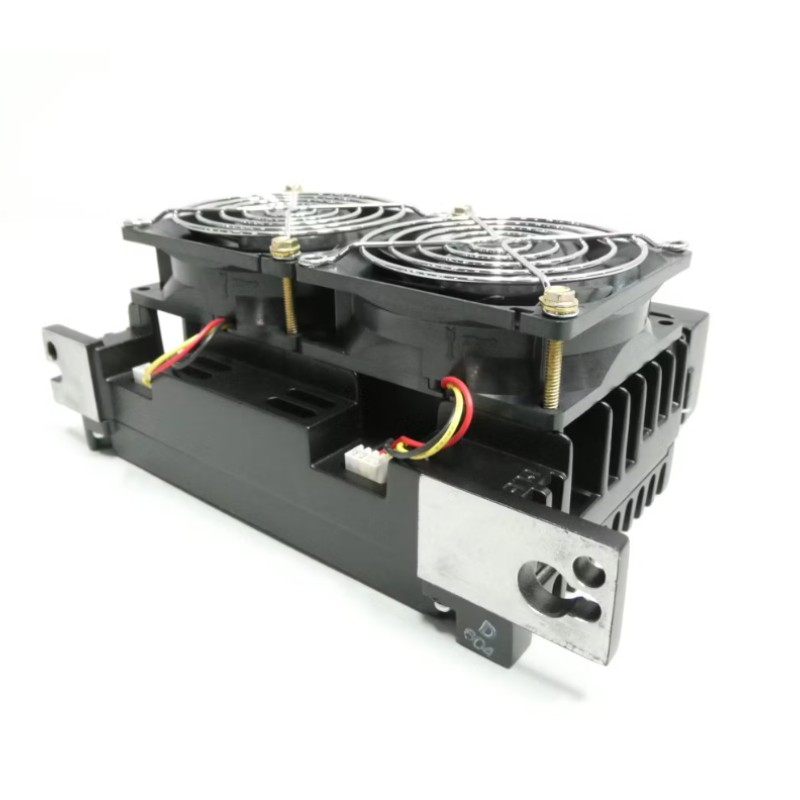

Cooling Method	Fanless or dual-fan (variant dependent)
Operating Temperature	0 °C to +65 °C (extended industrial range supported)
Mounting	Panel mount
Dimensions (L × W × H)	206 mm × 163 mm × 36 mm
Weight	1.3 kg
Safety Level	SIL2 / SIL3 capable (with safety I/O)

Recommended Related Models

GE IS420UCSBH1A – Entry-level UCSB controller (600 MHz)
GE IS420UCSBH4A – Enhanced controller with upgraded processing
GE IS420PPNGH1A – PROFINET gateway module
GE IS420ESWBH2A – Industrial Ethernet switch module

These modules allow flexible expansion of processing, networking, and field integration within GE automation systems.

Popular Allen Bradley Models

Allen-Bradley 1756-L81E – ControlLogix high-performance CPU
Allen-Bradley 1756-EN2T – EtherNet/IP communication module
Allen-Bradley 1783-ETAPND8 – Industrial Ethernet adapter
Allen-Bradley 1756-IB16 – Digital input module

These are widely used equivalents for industrial control and networking in Rockwell Automation environments.

Applications

The GE IS420UCSBH3A is widely used in:

Gas, steam, and wind turbine control systems
Distributed control systems (DCS) in power plants
Safety Instrumented Systems (SIS) with SIL3 requirements
High-speed industrial automation and process control
Real-time synchronization and data acquisition systems
Retrofit and modernization of legacy Mark V/VI systems

Its deterministic processing and high-speed communication make it ideal for applications requiring precision, safety, and continuous operation.

Advantages

High-Performance Processing: 1200 MHz quad-core CPU ensures rapid execution of complex control logic
Deterministic Real-Time Control: QNX RTOS guarantees stable and predictable operation
Precise Time Synchronization: IEEE 1588 enables microsecond-level coordination across I/O networks
Industrial Reliability: Designed for harsh environments with rugged construction and stable operation
Flexible Redundancy: Supports simplex, dual, and TMR system architectures
Seamless Integration: Native compatibility with GE IONet and Mark VIe architecture simplifies deployment

Technical FAQs

What is the GE IS420UCSBH3A used for?
It is a high-performance controller module used in GE Mark VIe/VIeS systems for real-time control and communication.
What processor does it use?
A 1200 MHz Intel EP80579 quad-core processor.
What is the memory configuration?
256 MB DDR2 RAM with ECC and 2 GB NAND flash storage.
What operating system does it run?
QNX Neutrino real-time operating system.
What are the dimensions?
Approximately 206 mm × 163 mm × 36 mm (L×W×H).
What is the weight?
About 1.3 kg.
What communication interfaces are available?
Three IONet Ethernet ports for real-time communication.
Does it support redundancy?
Yes — supports simplex, dual, and triple modular redundancy configurations.
What temperature range can it operate in?
Typically 0 °C to +65 °C, with extended industrial tolerance.
Is it suitable for safety systems?
Yes — it can achieve SIL2/SIL3 when used with appropriate safety I/O modules.
