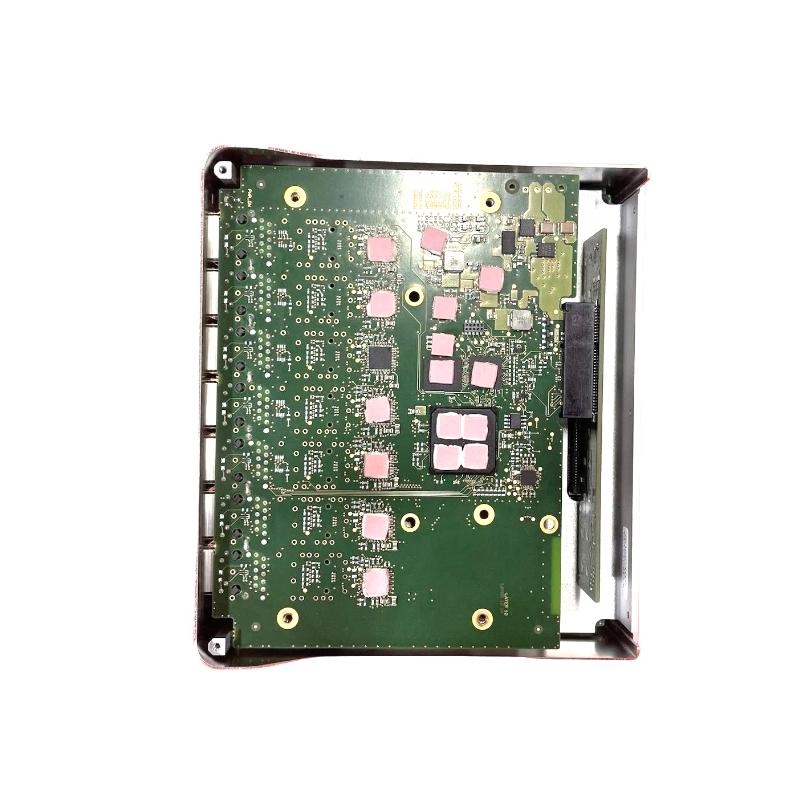

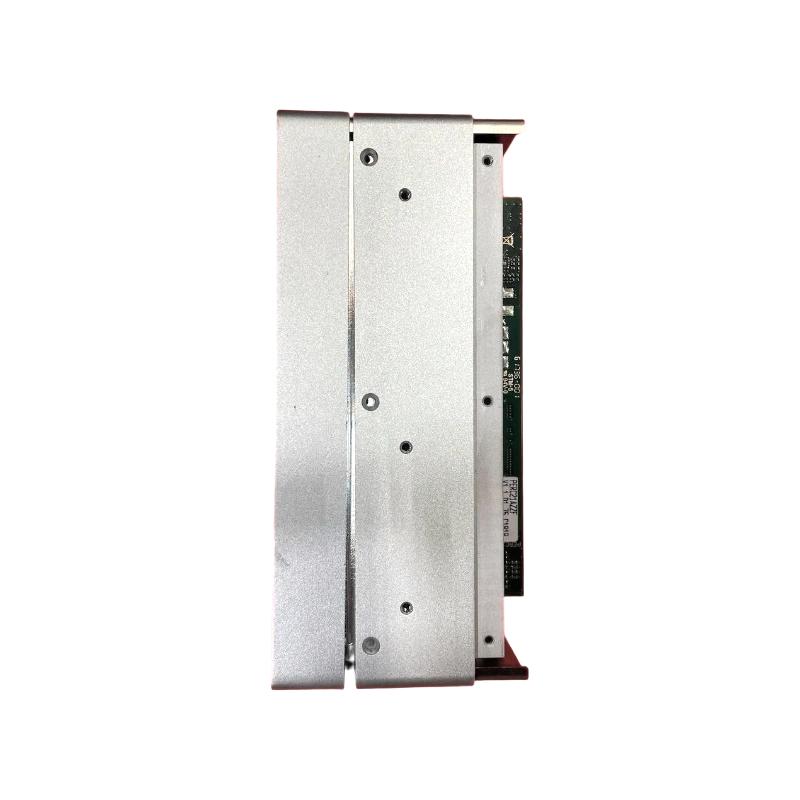

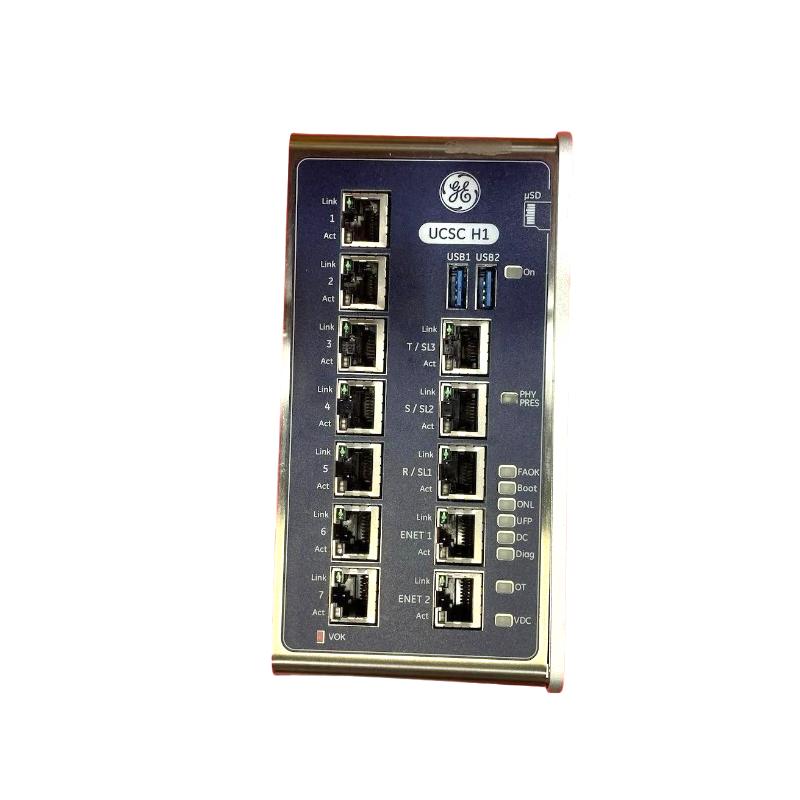

The GE IS420UCSCH1A is a powerful UCSC Controller Module developed by General Electric (GE) as a core processing unit for Mark VIe and Mark VIeS control systems. As one of the first quad-core controllers in the series, it delivers high-speed deterministic control, advanced communication capabilities, and exceptional reliability for mission-critical industrial environments.

Designed for turbine control and complex automation processes, this module executes real-time control algorithms, manages high-bandwidth I/O communication, and supports advanced redundancy architectures such as TMR (Triple Modular Redundancy), ensuring uninterrupted operation even under fault conditions.

Technical Specifications

Specification	Details
Brand	GE (General Electric)
Model	IS420UCSCH1A
Module Type	UCSC Controller Module
System Compatibility	Mark VIe / Mark VIeS
Processor	Quad-core processor (up to ~1.2 GHz)
Memory	Up to 4 GB DDR3 SDRAM
Storage	NAND Flash / SSD storage
Operating System	QNX Neutrino RTOS
Ethernet Ports	Up to 6 × 10/100 Base-TX
Additional Interfaces	USB, serial, IONet communication
Redundancy	Simplex, Dual, TMR supported
Power Supply	24 V DC typical
Power Consumption	Up to ~31 W
Operating Temperature	-40 °C to +70 °C (industrial grade)
Mounting	Panel mount
Dimensions (L × W × H)	168 mm × 150 mm × 55 mm
Weight	1.5 kg

Designed for high-availability industrial control with deterministic response and long-term reliability.

Recommended Related Models

GE IS420UCSBH1A – Standard UCSB controller module
GE IS420UCSBH3A – High-performance quad-core controller
GE IS420UCSBS1A – Safety-certified controller (SIL applications)
GE IS420PPNGH1A – PROFINET gateway module

These modules enable scalable architectures for control, communication, and safety within GE systems.

Popular Allen Bradley Models

Allen-Bradley 1756-L81E – ControlLogix high-performance CPU
Allen-Bradley 1756-EN2T – EtherNet/IP communication module
Allen-Bradley 1783-ETAPND8 – Ethernet adapter
Allen-Bradley 1756-IB16 – Digital input module

These represent comparable control and networking components in Rockwell Automation environments.

Applications

The GE IS420UCSCH1A is widely used in:

Gas and steam turbine control systems
Combined-cycle power plants and energy systems
Distributed Control Systems (DCS)
Industrial process automation and safety control
Pipeline compression and heavy industrial operations
High-availability systems requiring TMR redundancy

Its high processing capability and deterministic execution make it ideal for critical infrastructure applications.

Advantages

Quad-Core Processing Power: Handles complex real-time control algorithms with ease
Deterministic Real-Time Performance: QNX RTOS ensures stable and predictable execution
Advanced Redundancy Support: TMR and dual redundancy for maximum system uptime
High Connectivity: Multiple Ethernet ports and communication interfaces for flexible integration
Industrial-Grade Design: Operates reliably in harsh environments with wide temperature range
Future-Ready Architecture: Supports modern industrial networking and cloud-ready diagnostics

Technical FAQs

What is GE IS420UCSCH1A used for?
It is a high-performance UCSC controller used in GE Mark VIe/VIeS systems for real-time control.
What processor does it use?
A quad-core processor running up to approximately 1.2 GHz.
What operating system does it run?
QNX Neutrino real-time operating system.
How much memory does it have?
Up to 4 GB RAM depending on configuration.
What are the dimensions?
Approximately 168 mm × 150 mm × 55 mm.
What is the weight?
About 1.5 kg.
What communication interfaces are available?
Ethernet, IONet, USB, and serial interfaces.
Does it support redundancy?
Yes — supports simplex, dual, and TMR configurations.
What industries use this module?
Power generation, oil & gas, and heavy industrial automation.
Is it suitable for safety systems?
Yes — especially when deployed in redundant architectures like TMR.
