Introduction

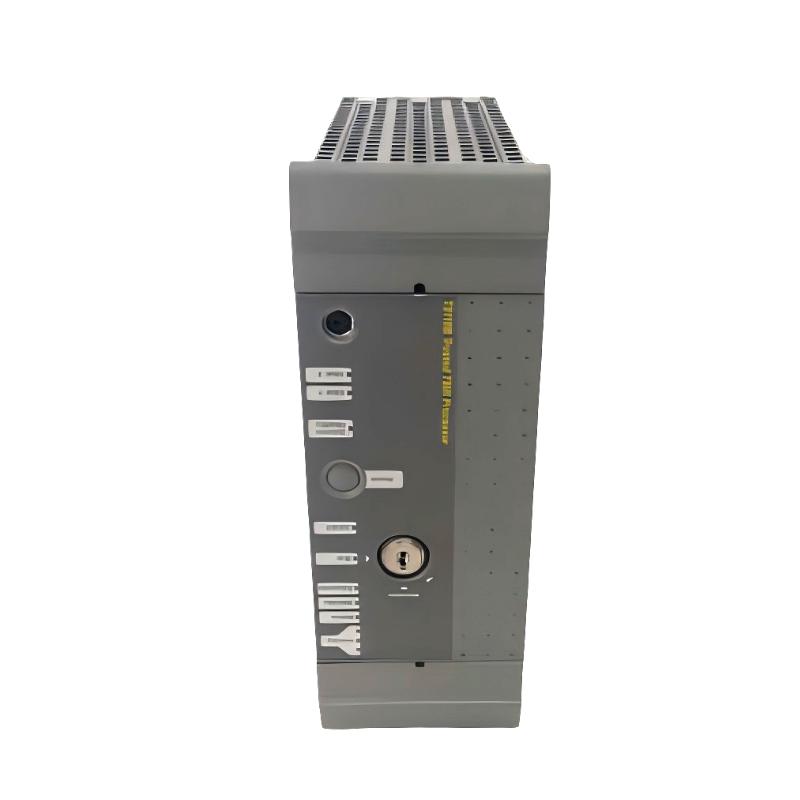

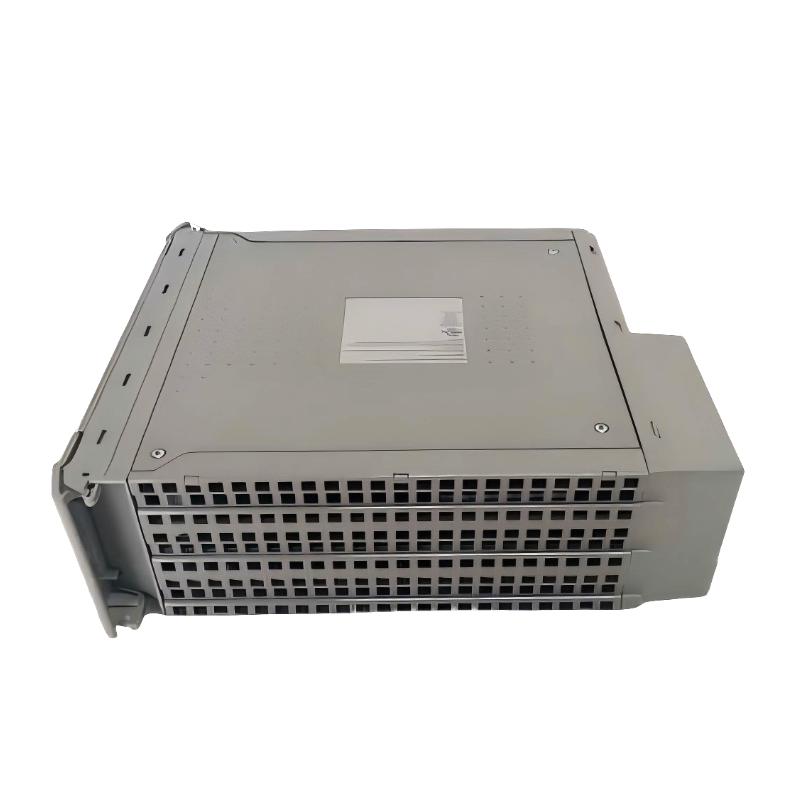

The ICS Triplex T8110B Processor Module is a high-reliability CPU designed for the Triplex safety and process control system. Engineered for mission-critical applications, it delivers precise, deterministic control and high-speed processing for redundant and fault-tolerant operations.
With a rugged design and advanced error-checking features, the T8110B ensures uninterrupted performance in harsh industrial environments. It is ideal for control centers, power generation, petrochemical plants, and any system requiring high-availability automation.
Technical Specifications
|
Parameter |
Details |
|
Module Type |
Processor / CPU Module |
|
Compatible System |
ICS Triplex T8100 / T8110 series |
|
Processing Architecture |
Redundant, fault-tolerant triplex CPU |
|
Memory |
High-speed, non-volatile program and data memory |
|
Communication Interfaces |
Triplex internal bus, Ethernet, optional field interfaces |
|
Diagnostics |
Built-in self-test, status LEDs, fault detection |
|
Power Requirement |
24 VDC typical |
|
Operating Temperature |
0°C to +55°C |
|
Storage Temperature |
–40°C to +70°C |
|
Dimensions (H × W × D) |
266 × 93 × 303 mm |
|
Weight |
2.94 kg |
|
Mounting |
Triplex controller chassis or panel mount |
|
Safety Features |
Error checking, redundancy monitoring, watchdog timers |
Recommended Related Models
|
Model |
Description |
|
T8100 Chassis |
Standard controller chassis for housing processor and I/O modules |
|
T8100 I/O Modules |
Discrete and analog modules for field signal acquisition |
|
T8100 Power Supply Module |
Redundant DC power for processor and peripherals |
|
T8100 Communication Module |
Field and network communication interface |
|
T8100 Redundant Processor |
Backup CPU for fault-tolerant operation |
|
T8100 Diagnostic Module |
System health and status monitoring |
|
T8153 CPU Module |
High-performance CPU variant for larger systems |
|
T8191 Safety Module |
Advanced triplex I/O safety module |
|
T8100 Expansion Bays |
For additional I/O or system modules |
|
T8100 Terminal Block Kit |
Organized field wiring connections |
Popular ICS Triplex Models
|
Model |
Use Case |
|
T8100 Chassis |
Modular housing for Triplex controllers |
|
T8100 CPU Module |
Standard T8100 processor |
|
T8153 CPU Module |
High-performance Triplex processor |
|
T8191 Safety I/O Module |
Advanced triplex I/O |
|
T8100 I/O Module |
Digital and analog signal processing |
|
T8100 Power Supply |
Redundant power for controllers |
|
T8100 Comm Module |
Ethernet and field network interfaces |
|
T8100 Terminal Block |
Field wiring interface |
|
T8100 Redundant Processor |
Backup CPU for fault-tolerant systems |
|
T8100 Expansion Module |
Additional I/O or functionality slots |
