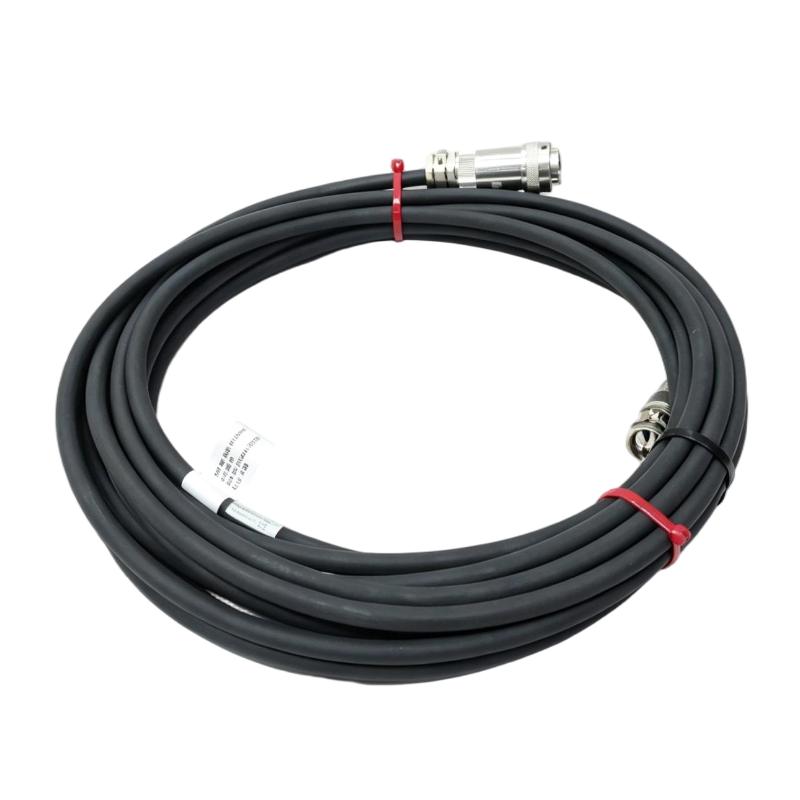

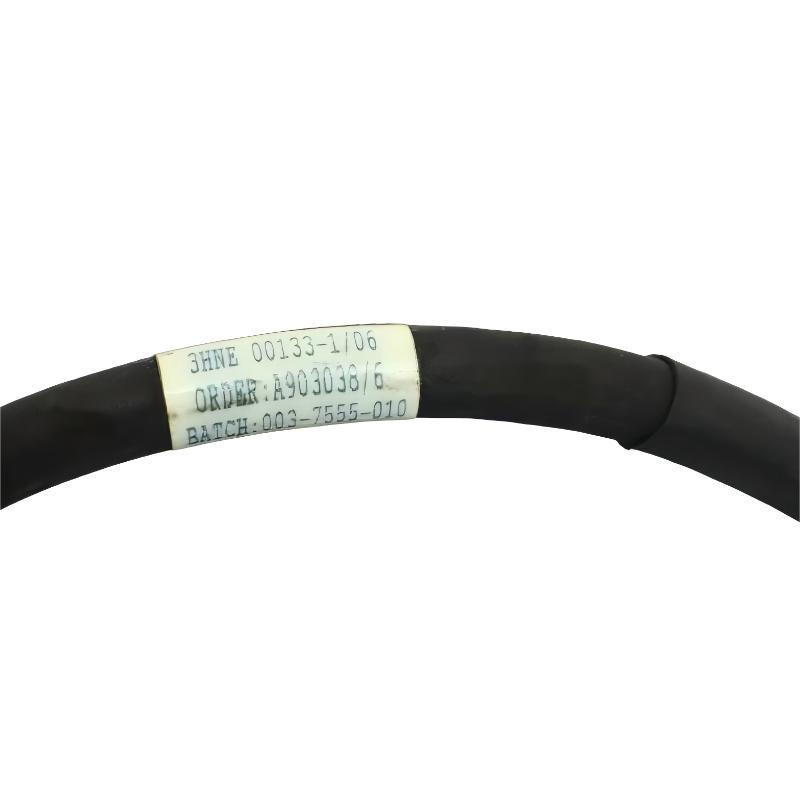

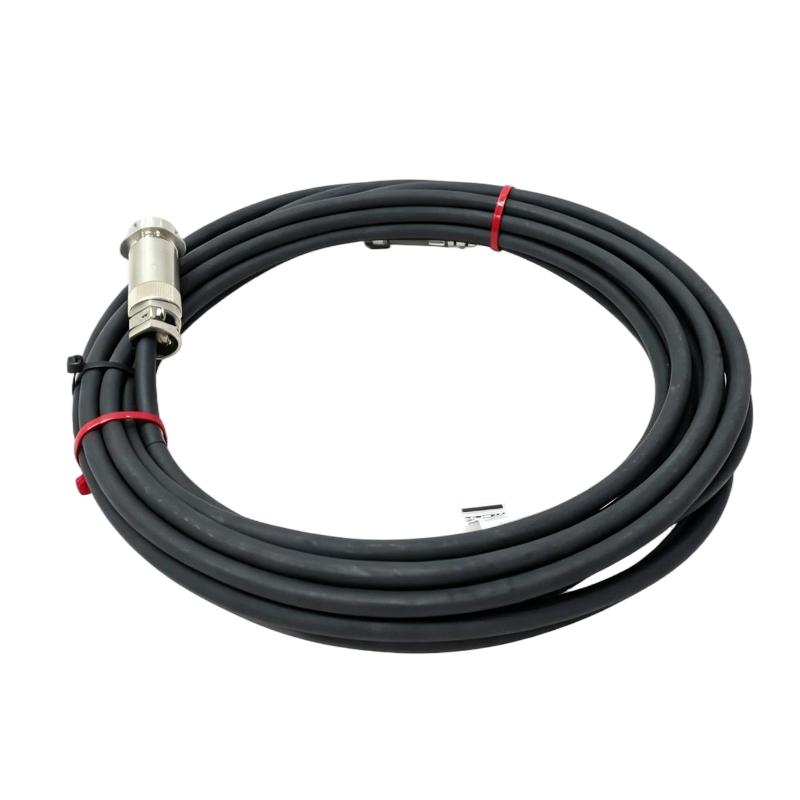

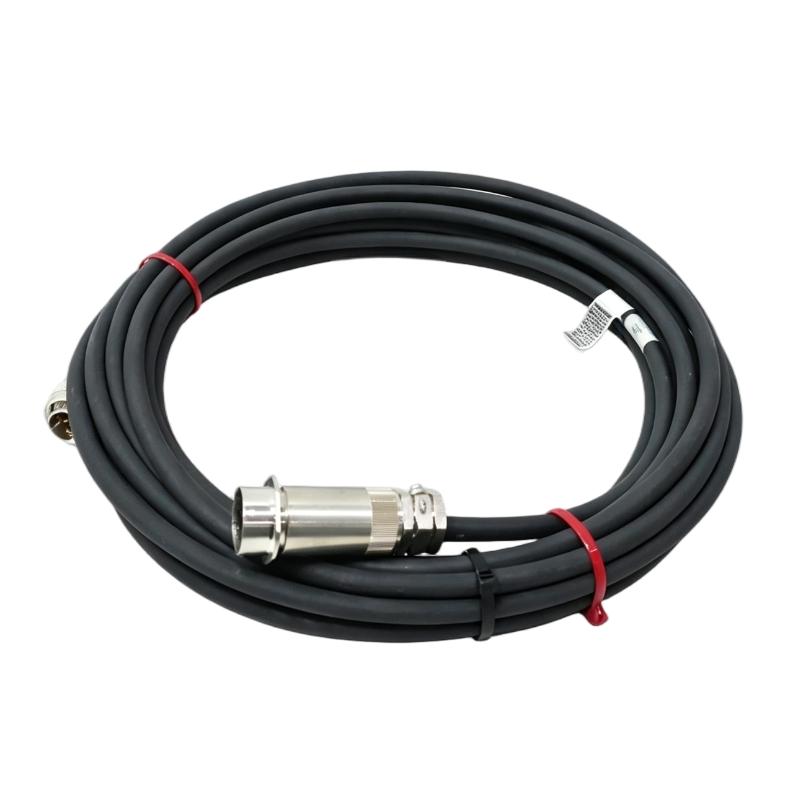

ABB 3HNE00133-1 Teach Pendant Extension Cable

Applications

The ABB 3HNE00133-1 Teach Pendant Extension Cable is designed to extend the connection between an ABB robot controller and its teach pendant, providing additional working distance for programming, commissioning, inspection, and maintenance operations.

With a 10-meter cable length, this extension is particularly useful in robotic cells where the standard teach pendant connection does not provide sufficient reach. It allows operators and service engineers to work at a more practical distance from the controller while maintaining access to the robot's programming and operating interface.

Typical applications include:

• ABB industrial robot programming
• Robot commissioning and startup
• Teach pendant operation
• Robot maintenance and servicing
• Production-line troubleshooting
• Robotic welding cells
• Material handling systems
• Automated assembly stations
• Machine tending applications
• Robot controller refurbishment
• Large robotic work cells
• Maintenance access where the controller is positioned away from the operating area

The cable is especially valuable when the controller is installed in a fixed control cabinet while the operator needs to move around the robot cell during setup or service work.

Advantages

Extended operating range

The 10-meter cable provides substantially more reach than a short pendant connection, giving operators greater freedom when positioning themselves around a robotic work area.

Better accessibility during commissioning

Robot commissioning often requires engineers to move between the controller, robot, tooling, and surrounding equipment. An extended teach pendant connection makes it easier to monitor robot movement while remaining in a convenient operating position.

Useful for maintenance work

During troubleshooting, technicians may need to inspect sensors, tooling, grippers, conveyors, or other peripheral equipment while simultaneously using the teach pendant. The extended cable helps make this type of diagnostic work more practical.

Designed for ABB robot systems

Using a dedicated ABB cable helps maintain the intended connection arrangement between compatible robot-controller equipment and the teach pendant. This is preferable to using an unverified generic extension cable.

Suitable for larger robotic cells

A 10-meter length can be particularly useful for production environments where the controller is located at the edge of the cell or inside a separate control area.

Practical replacement spare

For factories maintaining older ABB robotic systems, the 3HNE00133-1 can be kept as a replacement or maintenance spare. Having the correct extension cable available can prevent unnecessary downtime caused by a damaged or unavailable pendant connection.

Technical FAQs

1. What is the primary purpose of the ABB 3HNE00133-1?

The 3HNE00133-1 is a teach pendant extension cable intended to increase the connection distance between compatible ABB robot control equipment and the teach pendant.

2. How long is the 3HNE00133-1 cable?

The specified cable length is 10 meters, providing additional operating reach for robot programming, commissioning, and maintenance activities.

3. Can the cable be used with any ABB teach pendant?

Compatibility should be verified against the specific ABB robot controller and teach pendant combination. ABB robotic systems use different controller and pendant generations, so connector type and system architecture should be checked before installation.

4. Does the extension cable change the functionality of the teach pendant?

The extension cable is intended to extend the physical connection. It does not itself add programming, communication, or control functions to the teach pendant.

5. Why is cable length important in a robot cell?

The distance between the controller and robot working area can make a standard pendant connection impractical. A longer connection allows the operator to position the pendant where it is easier to observe robot movement and peripheral equipment.

6. What should be inspected if the teach pendant loses connection?

Check both connectors first, followed by the cable for cuts, crushed sections, excessive bending, or damaged shielding. If the physical connection appears normal, the controller and pendant interfaces should also be checked.

7. Can the cable be sharply bent around a robot cabinet?

Sharp bends should be avoided. The cable should be routed with an appropriate bend radius and protected from crushing, abrasion, excessive pulling force, and moving machinery.

8. Can the extension cable be routed together with power cables?

Care should be taken when routing the cable alongside high-power conductors. Where possible, maintain appropriate separation from sources of electrical interference and follow the installation practices applicable to the robot control system.

9. Is the 3HNE00133-1 suitable for permanent industrial installation?

It can be used as part of an appropriate robot installation when compatible with the controller and pendant. Cable routing should protect it from mechanical damage, heat, chemicals, sharp edges, and repeated stress.

10. What is the recommended procedure when replacing this cable?

Power down the applicable robot system according to the equipment maintenance procedure, disconnect the existing cable carefully, inspect the pendant and controller connectors, install the replacement without excessive bending or tension, and verify pendant communication before returning the robot to production.
