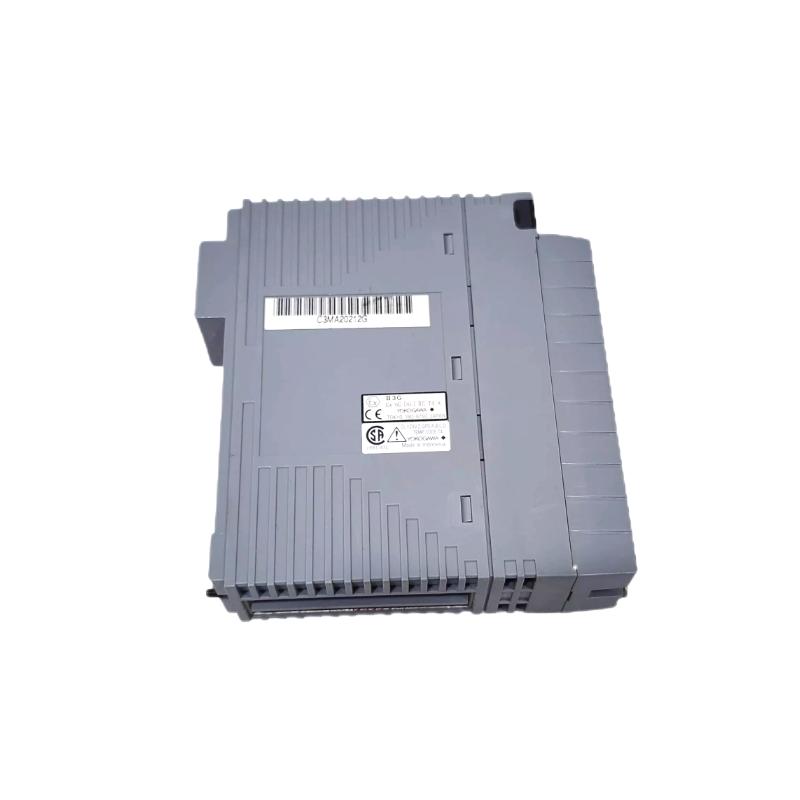

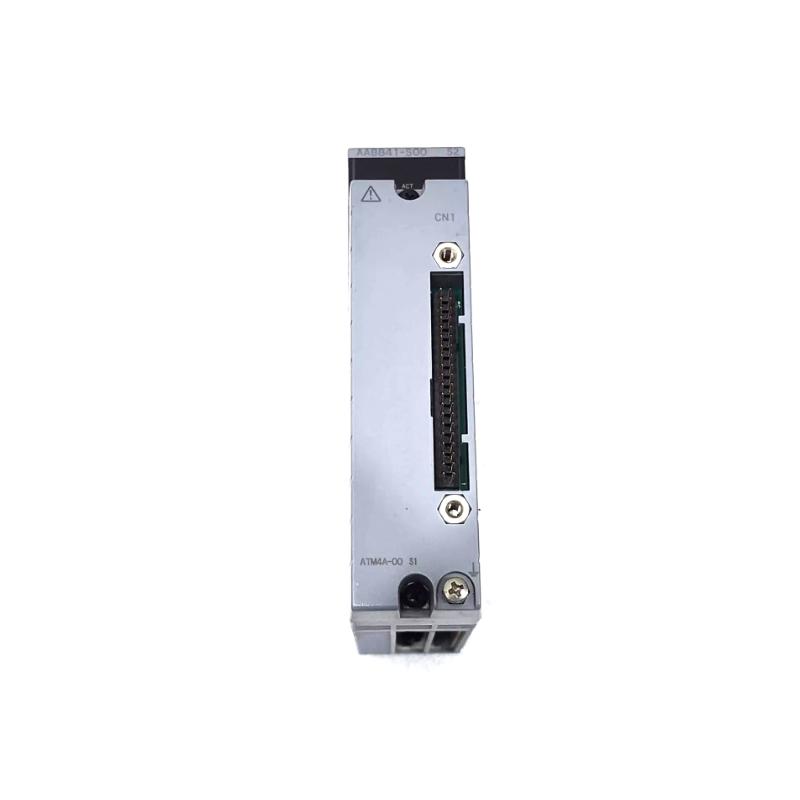

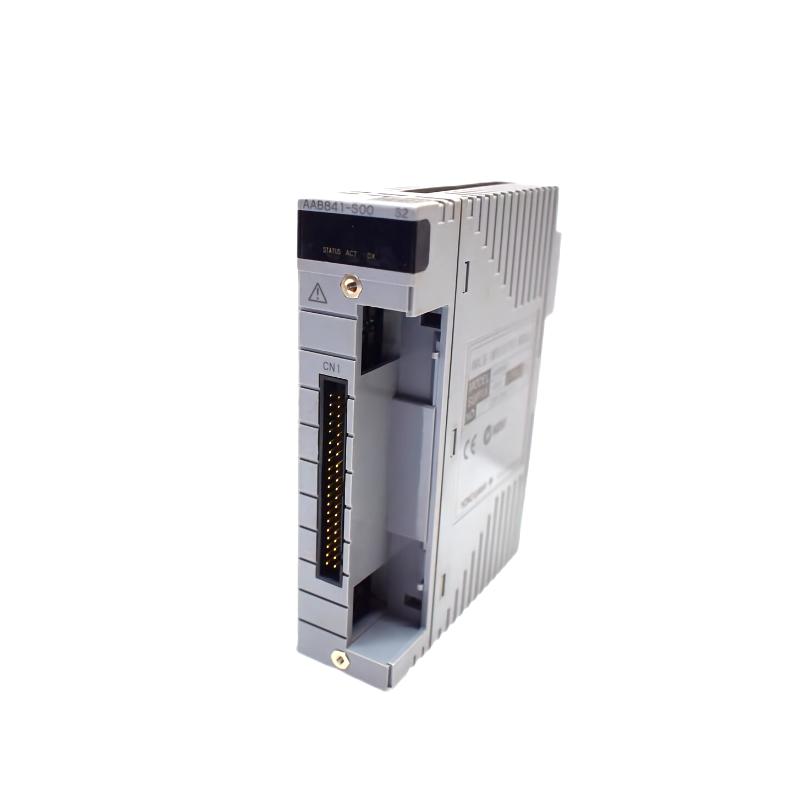

Yokogawa AAB841-S00 S2 Communication Module

Introduction

The Yokogawa AAB841-S00 S2 is an enhanced version of the highly reliable Yokogawa AAB841-S00 Communication Module, offering superior performance and expanded capabilities for Yokogawa CENTUM VP and ProSafe-RS control systems. This module is specifically engineered for mission-critical industrial applications where reliable and high-speed data communication is paramount. With support for Modbus TCP, Profibus, and Ethernet/IP, the AAB841-S00 S2 module provides seamless communication between control systems and field devices, ensuring real-time data transfer in oil & gas, chemical, power generation, and other process-intensive industries.

Building upon the robust foundation of its predecessor, the AAB841-S00 S2 introduces enhanced communication stability, improved fault tolerance, and better system redundancy, making it an ideal choice for high-availability environments. It is designed to support advanced network configurations and fault recovery mechanisms, ensuring operational continuity even in the event of network issues.

Technical Specifications

Specification	Details
Model	AAB841-S00 S2
Module Type	Communication Module
Input Voltage	24 VDC
Communication Protocols	Modbus TCP, Profibus, Ethernet/IP
Size (W x H x D)	160 x 120 x 40 mm
Weight	1.1 kg
Operating Temperature	-20°C to +60°C
Protection Features	Overvoltage, Reverse Polarity, Short-circuit
Certifications	CE, UL, RoHS
Redundancy Features	Hot-swappable, Fault-tolerant communication
Failure Detection	Advanced fault detection and recovery mechanisms

Recommended Related Models

Model	Module Type	Key Feature
Yokogawa AAB840	Communication Module	High-performance network support
Yokogawa AAB842	Communication Module	Supports network redundancy
Yokogawa A2SMX801	I/O Module	Seamless integration with communication systems

Popular Yokogawa Models

Model	Module Type	Key Feature
Yokogawa AAI841-H00	Communication Module	Flexible communication protocols
Yokogawa A2AMO102	I/O Module	Modular I/O support for various applications
Yokogawa A2SAM105	CPU Module	High-speed processing for control systems

Applications

Industrial Automation: The AAB841-S00 S2 ensures efficient communication in automated control systems, connecting various devices such as sensors, actuators, and controllers in oil & gas, chemical, and power generation facilities.
Safety Systems: In safety-critical environments, this module supports emergency shutdown systems, alarms, and other safety-related operations, ensuring high availability and reliability.
Process Control: Ideal for use in manufacturing plants and refineries, it maintains smooth and continuous communication for process control and monitoring, improving overall productivity and safety.
Energy Management: The AAB841-S00 S2 is ideal for energy management applications, facilitating real-time data exchange between systems that optimize energy usage and reduce operational costs.
Remote Monitoring and Control: Its high-level communication capabilities allow remote monitoring and control of operations from off-site locations, providing operational flexibility and enabling proactive maintenance strategies.

Advantages

Improved Communication Stability: Enhanced network redundancy and fault tolerance capabilities ensure uninterrupted communication, even in the event of network failures or device malfunctions.
Advanced Failure Detection: Equipped with advanced fault detection and recovery mechanisms, the AAB841-S00 S2 minimizes downtime and ensures rapid system recovery during communication disruptions.
High Availability: The module supports hot-swappable functionality, meaning it can be replaced without shutting down the system, which ensures continuous operation in critical environments.
Flexible Protocol Support: With compatibility for Modbus TCP, Profibus, and Ethernet/IP, it integrates easily with a wide variety of field devices, control systems, and enterprise networks.
Compact and Lightweight: Its 160 x 120 x 40 mm size and 1.1 kg weight allow for easy installation in confined spaces, making it ideal for control panels with limited space.

Technical FAQs

What is the input voltage for the Yokogawa AAB841-S00 S2 communication module?
The input voltage is 24 VDC.
What communication protocols does the AAB841-S00 S2 support?
It supports Modbus TCP, Profibus, and Ethernet/IP protocols.
What are the dimensions of the AAB841-S00 S2 module?
The module measures 160 x 120 x 40 mm.
What is the weight of the AAB841-S00 S2?
The module weighs 1.1 kg.
What is the operating temperature range of the AAB841-S00 S2?
The operating temperature range is -20°C to +60°C.
What are the redundancy features of the AAB841-S00 S2?
The module supports hot-swappable functionality and fault-tolerant communication, ensuring high availability and rapid recovery from failures.
Can the AAB841-S00 S2 be integrated into other Yokogawa systems?
Yes, it is designed for seamless integration with Yokogawa CENTUM VP and ProSafe-RS control systems.
What protection features are included in the AAB841-S00 S2?
The module includes overvoltage, reverse polarity, and short-circuit protection.
What certifications does the AAB841-S00 S2 have?
The module is CE, UL, and RoHS certified.
What industries benefit from the AAB841-S00 S2 module?
The AAB841-S00 S2 is ideal for industries like oil & gas, chemical processing, power generation, and manufacturing that require high-availability communication systems.
