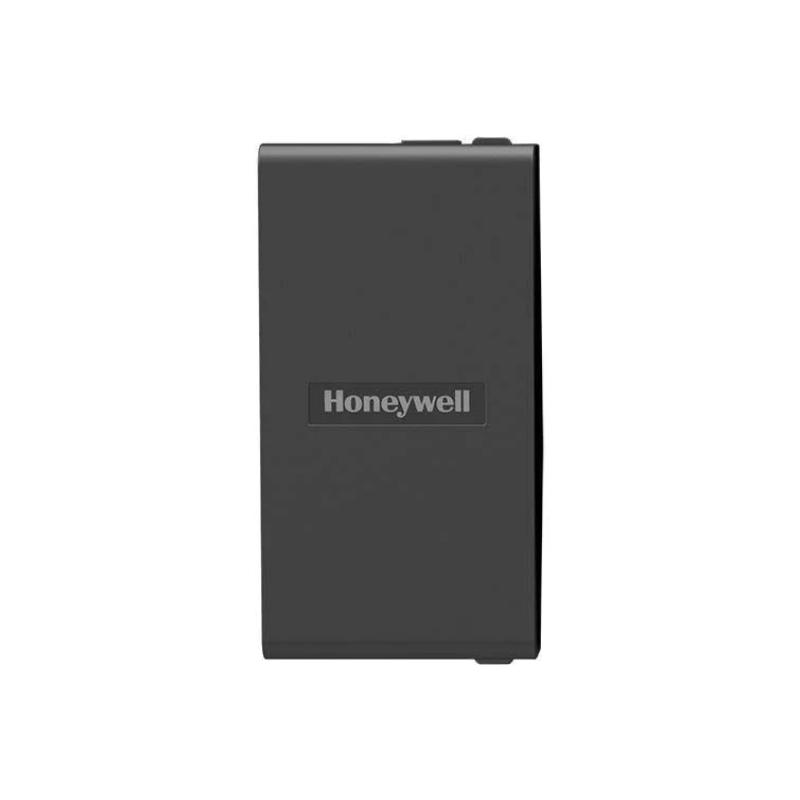

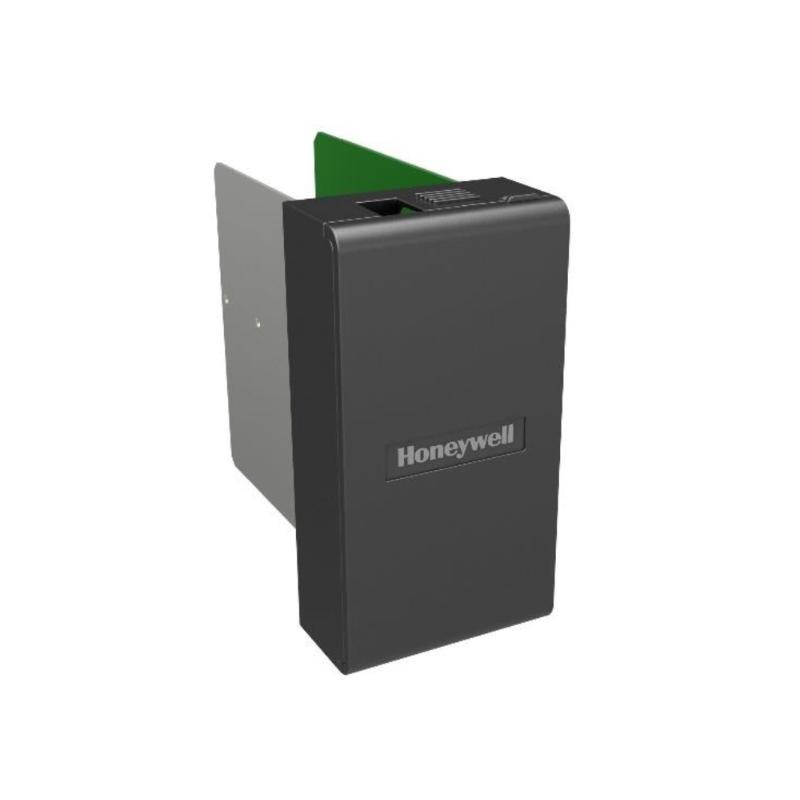

The Honeywell 900P01-0301 is a high-performance industrial power supply module designed to deliver consistent and regulated power to Honeywell ControlEdge HC900 controllers and associated I/O modules. Built for demanding automation environments, this module ensures stable operation under fluctuating loads and varying input voltages, providing critical support for mission-critical systems.

Its robust design, combined with integrated protection circuits, safeguards connected devices against overloads, short circuits, and voltage spikes. The compact form factor allows for efficient cabinet installation while maintaining high reliability and long operational life.

Technical Specifications

Parameter	Specification
Model	900P01-0301
Module Type	Power Supply Module
Input Voltage	120–240 V AC
Input Frequency	47–63 Hz
Output Voltage	24 V DC (primary), 5 V DC (auxiliary)
Output Power	90 W
Current Rating	3.75 A maximum
Inrush Current	Up to 60 A peak (short duration)
Efficiency	>85%
Protection Features	Overvoltage, overload, short-circuit
Hold-up Time	25 ms @ 115V AC
Mounting Type	Rack-mounted
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Dimensions (W × H × D)	73 × 140 × 105 mm
Weight	0.70 kg

Recommended Companion Modules

Honeywell 900P01-0201
Honeywell 900P01-0101
Honeywell 900H03-0202
Honeywell 900H32-0102
Honeywell 900C75-0360

Widely Used Honeywell Modules

Honeywell 900C32-0244 – Control Processor
Honeywell 900A16-0001 – Analog Input Module
Honeywell 900B16-0001 – Digital Output Module
Honeywell 900TBR-0001 – Terminal Base
Honeywell 900G03-0120 – Communication Module

Industrial Applications

The 900P01-0301 is ideal for powering control systems in various industrial scenarios where reliable power delivery is essential:

Distributed Control Systems (DCS)
Process automation in chemical, oil & gas, and manufacturing
Power generation and distribution systems
Water and wastewater treatment plants
Remote I/O and control panel installations

Key Benefits

High Output Capacity: 90 W output ensures support for larger I/O configurations
Stable DC Output: Maintains consistent power to controllers and peripheral modules
Advanced Protection: Guards against overload, overvoltage, and short circuits
Compact Design: Space-efficient for control cabinet integration
Industrial Reliability: Built to withstand harsh operating conditions and ensure continuous operation

Technical FAQs

1. What is the main function of the 900P01-0301?
It provides regulated DC power for Honeywell HC900 controllers and associated I/O modules.

2. What is the output power rating?
The module delivers 90 W of output power.

3. What input voltage range does it support?
It operates with a wide input range of 120–240V AC.

4. What output voltages are available?
The module provides 24V DC primary and 5V DC auxiliary outputs.

5. Is it suitable for industrial environments?
Yes, it is designed for high-reliability industrial automation systems.

6. Does it include protection features?
Yes, it includes overvoltage, overload, and short-circuit protection.

7. What systems is it compatible with?
It is designed for Honeywell ControlEdge HC900 platforms.

8. How is it installed?
The module is rack-mounted within control cabinets.

9. Can it maintain operation during brief power interruptions?
Yes, it offers a short hold-up time to protect connected devices.

10. Why choose this module over lower-capacity options?
Its higher output power and robust protection features make it suitable for larger and more demanding automation installations.
