Introduction

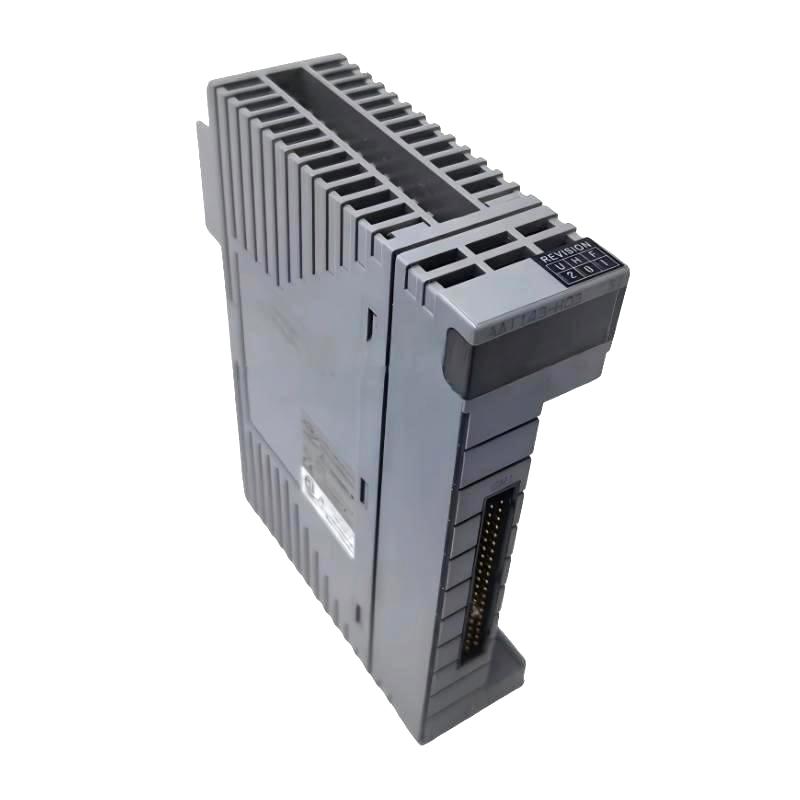

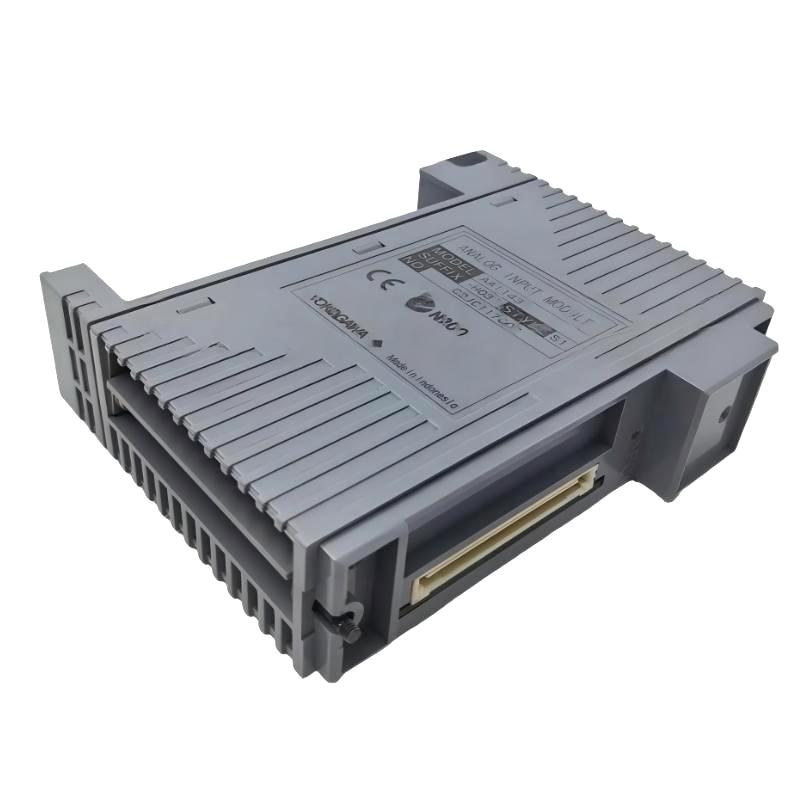

The Yokogawa AAI143-H03 S1 Analog Input Module brings together precision measurement and durable engineering, enabling operators to gather process data with exceptional stability. Its dependable architecture ensures clean signal capture, making the module a strong choice for facilities looking to tighten process control, reduce noise-related issues, and enhance system resilience. With a balance of accuracy, rugged construction, and ease of integration, it supports modern plants aiming for higher efficiency and smarter automation outcomes.

Technical Specifications

Specification	Description
Model	AAI143-H03 S1
Input Type	Analog (commonly 4–20 mA)
Channels	Multi-channel configuration
Isolation	Channel-to-channel and channel-to-system
Accuracy	High-accuracy, low-drift input circuitry
Power Supply	From system backplane
Operating Environment	Industrial-rated temperature and vibration tolerance
Mounting	Standard Yokogawa I/O base assemblies
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.3 kg

Recommended Related Models

Yokogawa AAI143-H00 Analog Input Module
Yokogawa AAI145 Isolated Analog Input Module
Yokogawa AAT141 Analog Output Module
Yokogawa ADV151 Pulse Input Module

Popular Related Models

Yokogawa AAI835 Current Input Unit
Yokogawa ADM52 Digital Input Module
Yokogawa CP451-10 CPU Module
Yokogawa AVR10D Remote I/O Module

Application Scenarios

Designed for industrial environments where precise signal acquisition shapes every control decision, the Yokogawa AAI143-H03 S1 performs reliably in continuous-operation plants. It is widely used in petrochemical units, refining operations, power generation, pharmaceutical production, advanced manufacturing lines, and water management systems. Wherever instrumentation data must translate into stable, predictable control output, this module delivers dependable results.

Advantages at a Glance

High signal fidelity ensures clean, accurate readings even under fluctuating load conditions.
Strong immunity to industrial noise, reducing the chance of false or unstable measurements.
Smooth integration with Yokogawa’s DCS platforms for rapid deployment.
Optimized footprint, supporting compact cabinet layouts without sacrificing performance.
Low maintenance demands, contributing to stable long-term operating costs.
Versatile input compatibility, ideal for mixed-signal or multi-instrument loops.

Technical FAQs

What type of analog signals does the AAI143-H03 S1 accept?
Standard industrial analog currents such as 4–20 mA from transmitters and sensors.
Is the module suitable for safety-critical loops?
Yes—when used with appropriate certified system configurations.
Does it provide isolation?
Yes, channel and system isolation help prevent noise coupling and ground faults.
Is field wiring complexity high?
No, the terminal arrangement is straightforward for fast installation.
How does it perform in noisy plants?
Built-in filtering and shielding ensure stable measurements.
Can it be replaced online?
Many Yokogawa racks support hot-swap functionality for minimized downtime.
Does it support self-diagnostics?
Yes, module-level diagnostics help detect wiring issues and module health concerns.
Is recalibration often required?
Only in special cases—factory calibration is stable for long-term use.
What system families is it compatible with?
It integrates seamlessly into Yokogawa CENTUM and related control systems.
Does temperature affect accuracy?
Its industrial-grade design minimizes drift across standard plant temperature ranges.
