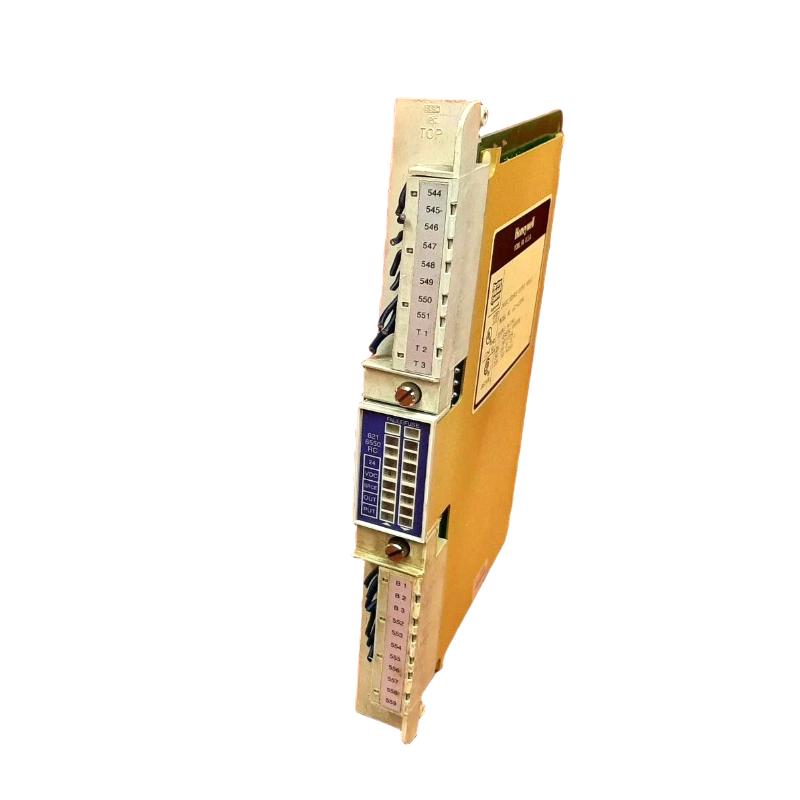

Honeywell 621-6550RC 16-Point 24 VDC Source Digital Output Module for UCN / IPC Industrial Control Systems
Honeywell 621-6550RC 16-Point 24 VDC Source Digital Output Module for UCN / IPC Industrial Control Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 621-6550RC Product Origin:USA Product Dimensions:33 mm × 241 mm × 178 mm Product Weight:0.60 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 621-6550RC is a high-reliability 16-point digital output module designed for Honeywell UCN, IPC, and Series 6000 DCS platforms. It provides 24 VDC source outputs, enabling precise control of field devices such as solenoids, relays, valves, and indicator systems.
As an RC (removable) variant, this module supports hot-swap capability, allowing maintenance or replacement without shutting down the entire control rack—critical for minimizing downtime in continuous industrial operations. It remains a widely used solution for legacy Honeywell systems requiring dependable output control and long lifecycle support.
Technical Specifications
Specification Item
Details
Model
621-6550RC
Module Type
Digital Output Module
Output Channels
16 points
Output Type
24 VDC Source Output
Nominal Voltage
24 VDC
Voltage Range
18 – 28 VDC
Rated Current
2 A per channel
Group Current
5 A per group of 4
Total Module Current
12 A max
Surge Current
8 A (10 ms non-repetitive)
On-State Voltage Drop
≤ 2 VDC at 2 A
Off-State Leakage Current
≤ 5 mA (typical)
Response Time
~2 ms typical
Isolation
Channel-to-channel isolation (industrial grade)
Mounting
Rack / PLC backplane
Dimensions (W × H × D)
33 mm × 241 mm × 178 mm
Weight
≈ 0.60 kg
System Compatibility
Honeywell UCN / IPC / DCS systems
Recommended Related Models
Honeywell 621-6550 – Standard output module (non-removable)
Honeywell 621-2175 – 32-point AC output module
Honeywell 621-2150RC – 16-point AC output module
Honeywell 621-2100R – 8-point digital output module
Honeywell 621-4500 – 12–24 VDC digital input module
Popular Honeywell Modules
Honeywell 900C75-0460 – Expansion I/O module
Honeywell 900G03-0202 – System interface module
Honeywell 900H02-0102 – Mixed I/O module
Honeywell 900R12R-0200 – Power interface
Honeywell 900S75-0460 – Communication module
Applications
The 621-6550RC module is widely deployed in industrial automation systems requiring stable and scalable DC output control:
PLC and DCS actuator and solenoid control
Oil & gas, petrochemical, and process plants
Power generation and utility automation
Manufacturing and production line control
Legacy Honeywell UCN system maintenance and upgrades
Advantages
Hot-Swap (RC) Capability
Allows module replacement without shutting down the system, improving uptime.
High Output Capacity
16 channels enable efficient control of multiple field devices.
Stable 24 VDC Output Performance
Optimized for industrial DC loads with consistent switching behavior.
Strong Electrical Isolation
Protects control systems from field disturbances and noise.
Proven Industrial Reliability
Widely used in long-lifecycle Honeywell DCS and PLC systems.
Technical FAQs
1. What is the function of the 621-6550RC module?
It converts PLC signals into 24 VDC outputs to control external field devices.
2. How many output channels does it provide?
It supports 16 output points.
3. What voltage range does it operate in?
It operates within 18–28 VDC.
4. What is the maximum current per channel?
Each channel supports up to 2 A.
5. What does “RC” mean in this model?
It indicates removable/hot-swap capability, allowing live replacement.
6. What types of loads can it control?
Solenoids, relays, valves, lamps, and other DC-driven devices.
7. Is this module suitable for DCS systems?
Yes, it is commonly used in Honeywell UCN and Series 6000 DCS systems.
8. Does it provide isolation?
Yes, it includes channel isolation for improved reliability.
9. Is the module still manufactured?
It is generally discontinued and available as surplus or refurbished.
10. What makes it reliable?
Its robust design, stable DC output handling, and proven long-term industrial use.
